Dashboard
Once a storage system has been onboarded to Storage Advisor, the dashboard displays
as soon as you log in. The Storage Advisor dashboard provides the tools to easily
congure, manage, and monitor storage systems.
From the Storage Advisor dashboard, you can access managed resources and provision
stor
age in the context of a given storage system or server. The provided templates and
congurations make it possible to quickly and easily provision a storage system, without
knowing the details of the underlying hardware and software.
The top navigation menu provides access to Jobs and Monitoring pages. Links to the
following settings are available, based on the user role:
■
Tier Management
■
Security Settings
■
SNMP Settings
■
Change Local Password

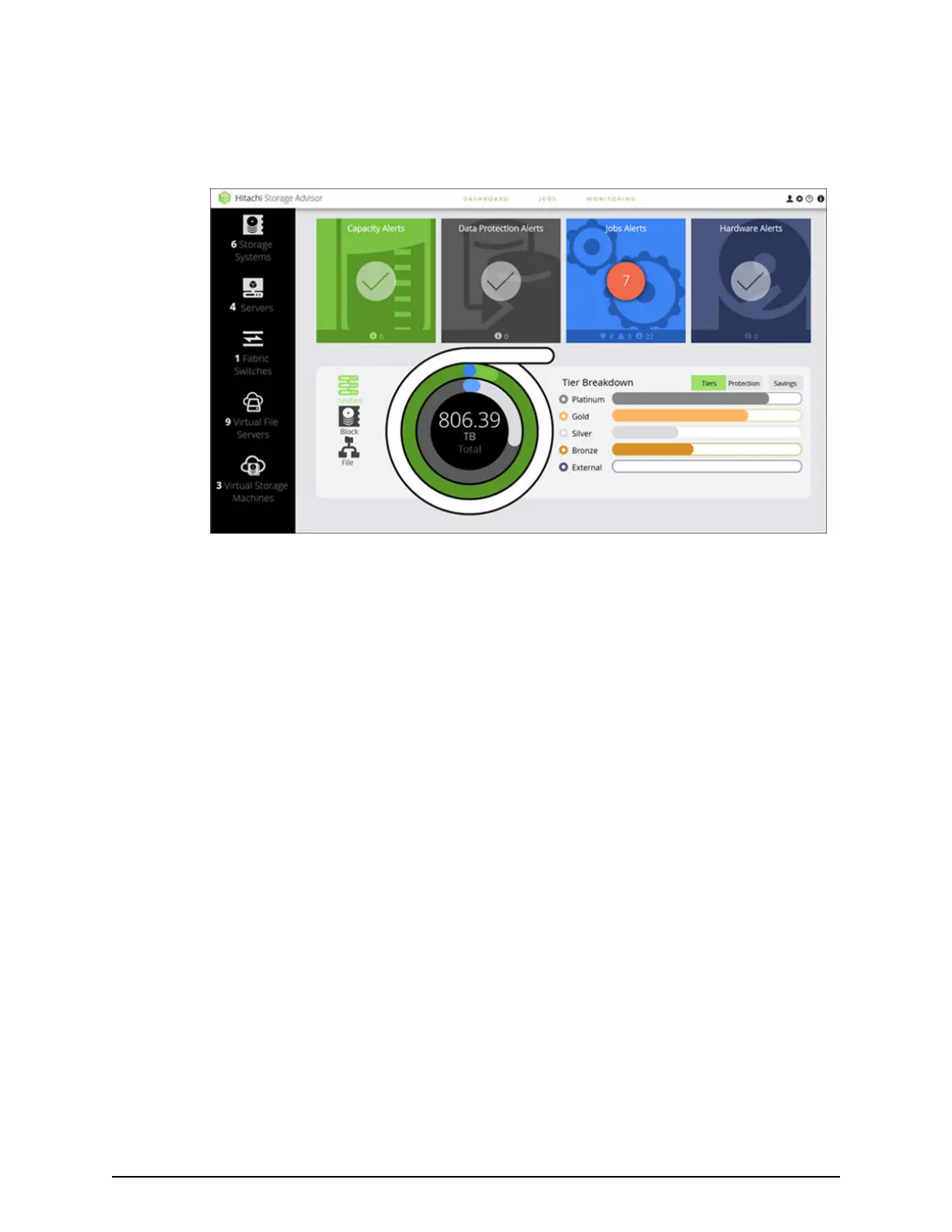

The dashboard has three distinct sections:
■
Resource side panel: The left pane provides quick access to review the conguration
of your storage systems, servers, and fabric switches. If the storage system includes
NAS modules, virtual le servers can also be accessed.
■
Alert tiles: Four alert tiles represent various aspects of the health of the storage
system. When Storage Advisor detects a problem with a storage system environment,
a number appears in the tile. The number indicates the number of alerts for that
aspect of the storage system. Click the alert tile to go directly to a summary of the
problems.
■
Resource summary: The middle area, with the information gauge, provides a
summary of the capacity allocated from the registered storage systems.
Resource side panel
The resource side panel enables quick access to storage systems and to servers.
■
Click Storage Systems to view and add storage systems.
Dashboard
Chapter 1: System administration overview
System Administrator Guide for VSP Gx00 models and VSP Fx00 models 22
