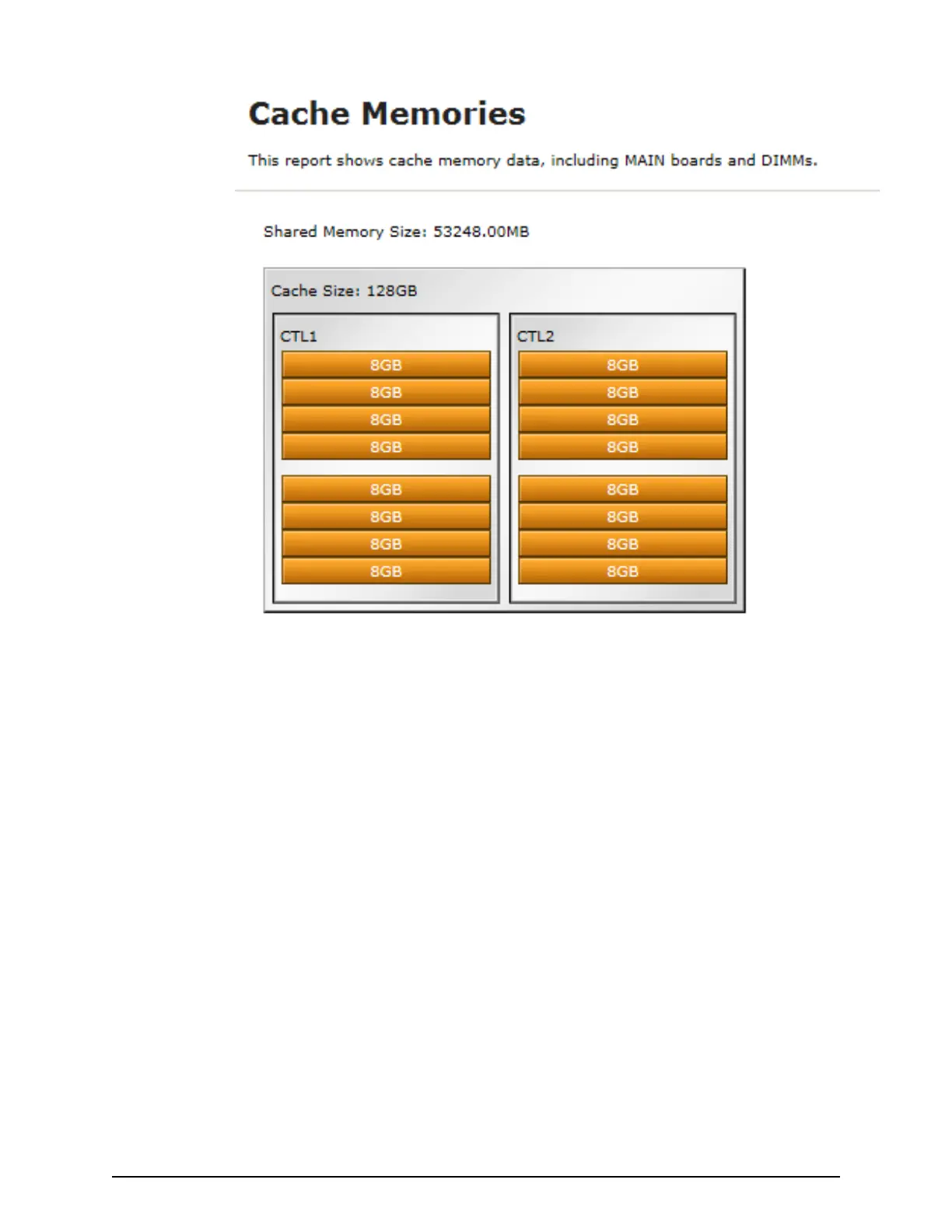

Figure 9 Cache Memories report (VSP G800, VSP F800)
T
otal capacity of the cache memory and shared memory is displayed separately for each
module.
Channel Boards report
This report shows the channel boards and the ports and types of channel boards for
each channel board. The keys show which channel boards are installed (green keys) and
which channel boards are not installed (gray keys).
If a PCIe channel board installed in the DKC is connected to a channel board box, the
status of the channel board box is displayed.
If a NAS module is mounted on a channel board, the status of the module is displayed.
Channel Boards report
Appendix A: Examples of storage conî ´guration reports
System Administrator Guide for VSP Gx00 models and VSP Fx00 models 233
