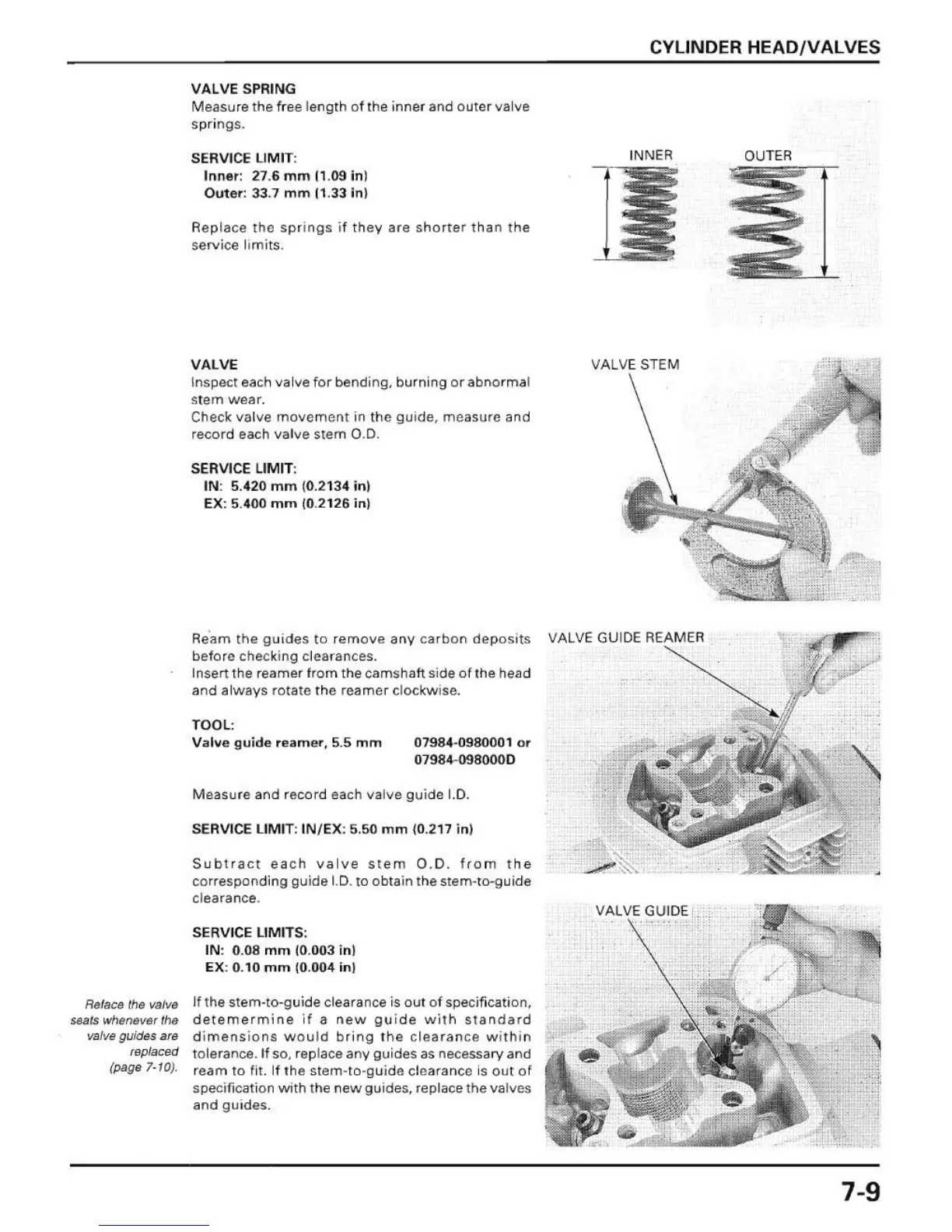

CYLINDER HEAD/ VALVES
VALVE SPRING
Measure the fr ee len gth of the in ner and outer va l ve
spr i ngs ,
SERVICE LI MIT :
Inn er: 27.6 mm 11 .09 in l
O uter : 33.7 mm 11 . 33 in )
Repla ce the springs if t hey are shorter than the
se ", iee limi ts.
VALVE
Inspect each va lve f or bending. burning or abrlorma l
stem wear.
Check valve movement in the guide, measure and
record
each valve stem 0,0.
SERVICE LIMIT;
IN : 5.420 mm (0.2 134 inl
EX: 5. 400 mm (0.2 12 6 in )
INNER
Re ' am the gui des to rem ove any carbon deposits VALVE GU ID E RE~ ''''R
before checking clearances.
Insert
the reamer f rom the ca mshaft side 01 the head
and always rotate the reamer cloc kw i se.
TOO L;
Valve guide turner . 5.5 mm 07984-0980001 or
07984-0980000
Measure and reco rd each va l ve guide 1.0.
SERV ICE LIMIT; IN / EX ; 5.50 mm (0 .217 in)
Su btract each va l ve stem 0.0. from t he
corresponding guide 1.0 . to obtain the stem-to-guide
clearance.
SERVICE LIMIT S;
IN: 0.08 mm (0.003 in)
EX : 0.10 mm (0 .0 04 in)
R61aC9 rhB valv9 If the stem-to-guide clearance is ou t of specification.
saalSwheMV9rrh9 de t emermine if a n ew g u i de with standard
Y/lIV9']uid9SJitr9 d im enS io ns wou ld bri ng the clearance w it hin
replaced tolerance. If so, replace any guides as necessary and
(pa,]97-10). ream to fil . If t he slem - Io -g uide clearance is out of
specification with the new gui des_ replace the valves
and guides.
VALVE GUIDE
OU T ER __ -.--
7-9
