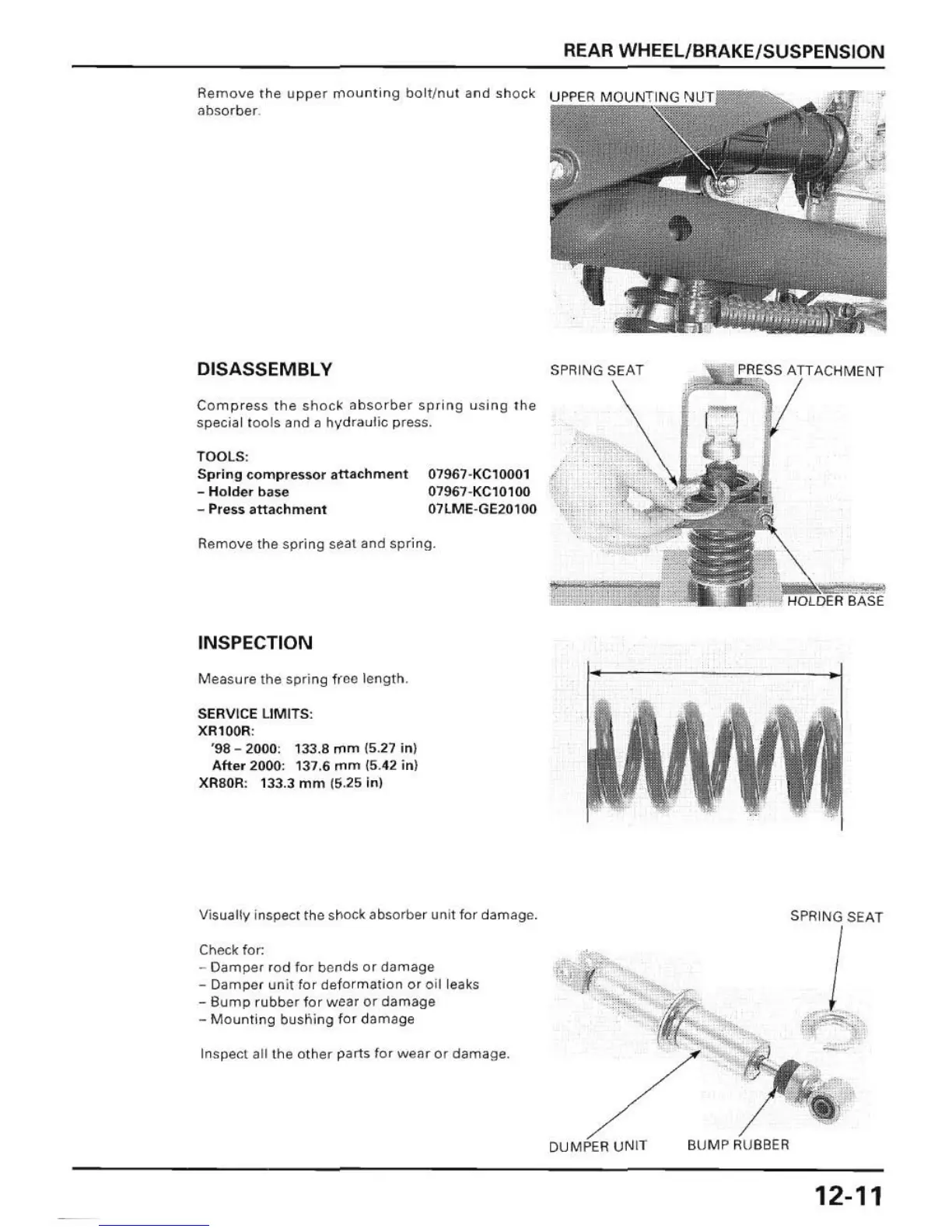

REAR WHEEL/B RAKE /S USPENSION
Remove The upper moun t ing bolt{n ut and shoc k
IIhsorber.
DISASSEMBLY
Compress the shock absorber spring using The
specialloo ls and a hVdraulic press_
TOO
LS:
Spring compressor at1achmen!
- Hol der base
07967-KC10001 l
07967·KC10l00
- Press at1achmen!
07LME-GE20100 , -
Remove the spring seat and spring.
INSPECTION
Measure the spr ing free length .
SERVICE LIMITS:
XRlooR :
'98 - loaD: 133.8 mm (5. 27 in)
A
fter 2000: 137.6 mm (5,42 in)
XR 80R: 133.3 mm (5.25 in)
Visually i nSpeCT the shock absorber Un iT for damage.
Check for:
-
Damper rod for bonds or damage
- Damper unit fo r defo r mation or Oil leah
- Bump rubber for wear or damage
- Mounting busl'ling for damage
Inspect all the other parts for wear or damage.
DUMPER UN IT
SPRING SEAT
!
; ';;-it"-Z,
BUMP
12-11
