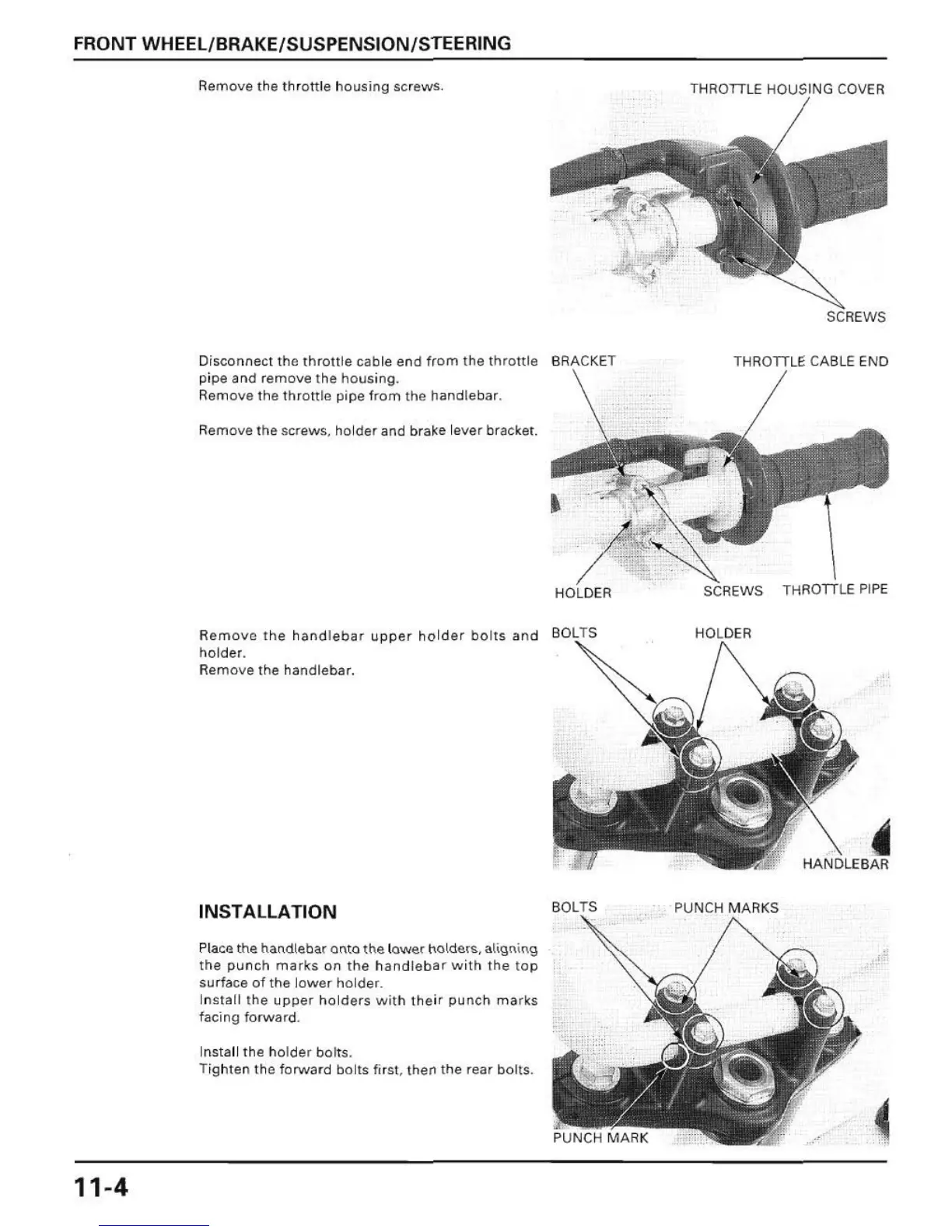

FRONT WHEEL/ BRAKE/SUSPENSION/STEERING
11-4
Remove the throUie housing screws.
Disconnect the
throttle cable end from the throttle
pipe arid remove the housing.
Remove the thlOtt le pipe from the hand leb ar.
Remove
the screws, hol der and brake lever brackeT.
Remove the hand l ebar upper ho l der bolts and TS
hOlder.
R emove the handlebar.
INSTALLATION
Place the hand lebar on to the l ower ho lders, a ligning
the pu n Ch ma rks on the handleba r with the top
surface 01 the l ower ho lder.
I nstall the upper ho l ders with thei r punCh marks
facing for wa rd.
Install the h older bo lts.
Tighten the
forwa rd bo lts first, then the rear bolts.
THROTTLE HOU'}NG COVER
THROTIlE CABLE END
THROTTLE PIP E
PUNCH MAI,"S
