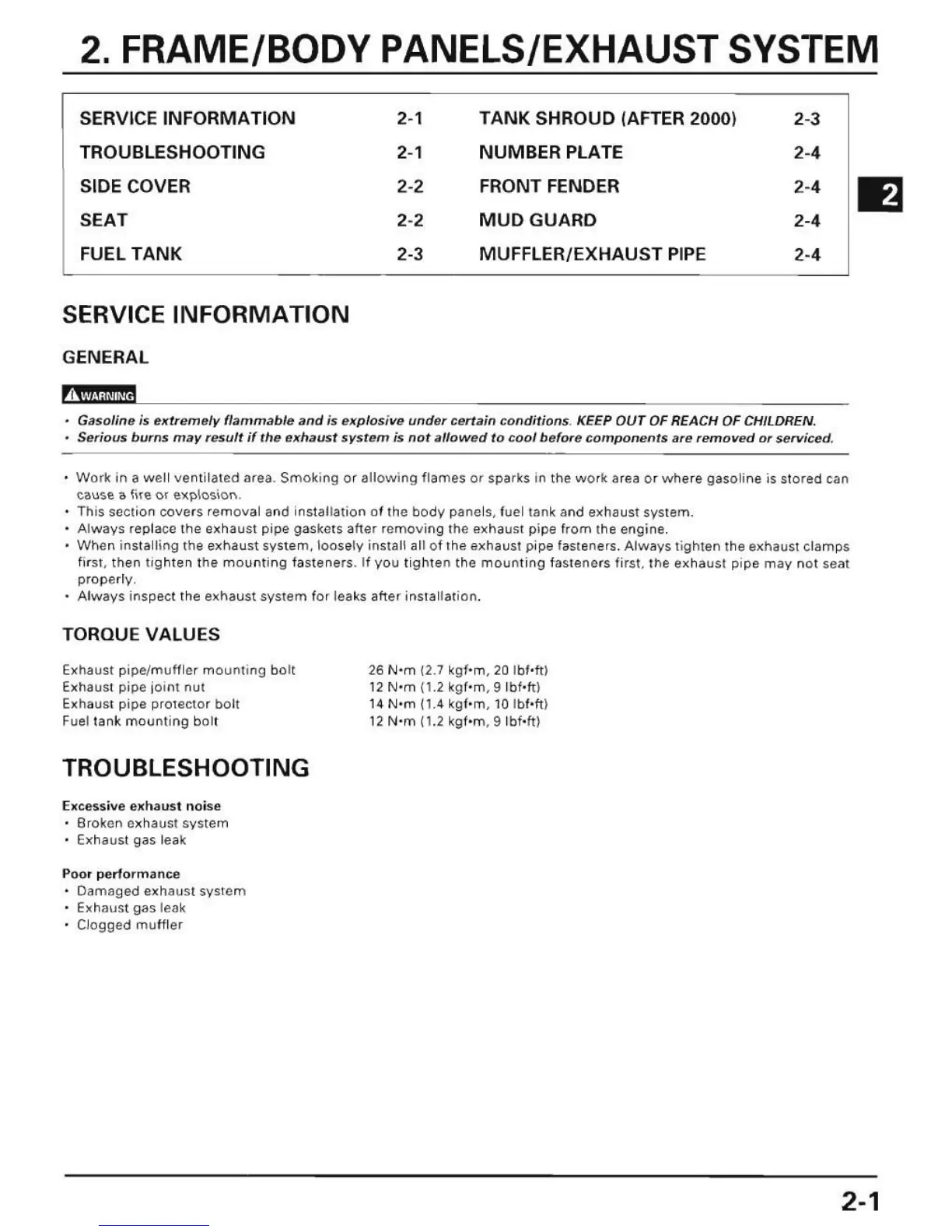

2. FRAME/BODY PANELS/EXHAUST SYSTEM
SERVICE INFORMATION
TROUBLESHOOTING
SIDE COVER
SEAT
FUEl TANK
SERVICE INFORMATION
GENERAL
2-1
2-1
2-2
2 -2
2-3
TANK SHROUD !AFTER 2000)
NUMBER PLATE
FRONT FENDER
MUDGUARD
MUFFLER/EXHAUST PIPE
2-3
2-4
2-4
2-4
2-4
Ga501in~ is elltremely flammabl e and is elf plosive under cerrain conditions . KEEP OU T OF REA CH OF CHILDREN.
•
Serious burns may result if the exhaust system is nor allowed to cool before components are r emoved or serviced.
• Wo rk in a wel l ventilated area. Smoking or allow ing flames or sparks in the wo rk a."'a or where gaso l ine is stored can
calJse a li le or explosio".
• This section cove.s r emova l and insta llation of the body panel s, fuel um k a nd exhaust system.
• Always replace the exhaust pipe gaSkets after removinglhe exhaust pipe from the engine.
When instal ling the exhaust system, loosely install all olThe exhaUST pipe fasteners. Always lighten the exhaust clamps
firST , then tIghten the mounting lasteners . II you ti ghten the mou nting fasteners firs!. the exhaust pipe may not seat
propMly
Al ways insp ect the e~haust system for leaks after installati on .
TORQUE VALUES
e~haust pipe/muff ler mount ing bolt
E~haust pipe joi nt nut
Exhaust pipe protector bolt
Fuel tank mount i ng bolt
TROUBLESHOOTING
Excess;"e exhaust noise
Sroken
e~haust system
• exhaust gas leak
Poor performance
Oam~ged exha ust system
E ~halJslg,-,s leak
Clogged mu ft ler
16 N' m 11.7 kgfom, 20 Ibfoftl
12 Nom (1.2 k g/'m, 9 Ibf·ft)
14 No m (1 .4 k g/ ' m, 10 I bf ·ft)
12 Nom (1.2 k g/ 'm, 9Ibf ·ft)
EJ
2-1
