SERVICE INFORMATION 5-1
TROUBLESHOOTING 5-3
AIR CLEANER HOUSING 5-4
CARBURETOR REMOVAL 5-4
CARBURETOR DISASSEMBLY 5- 6

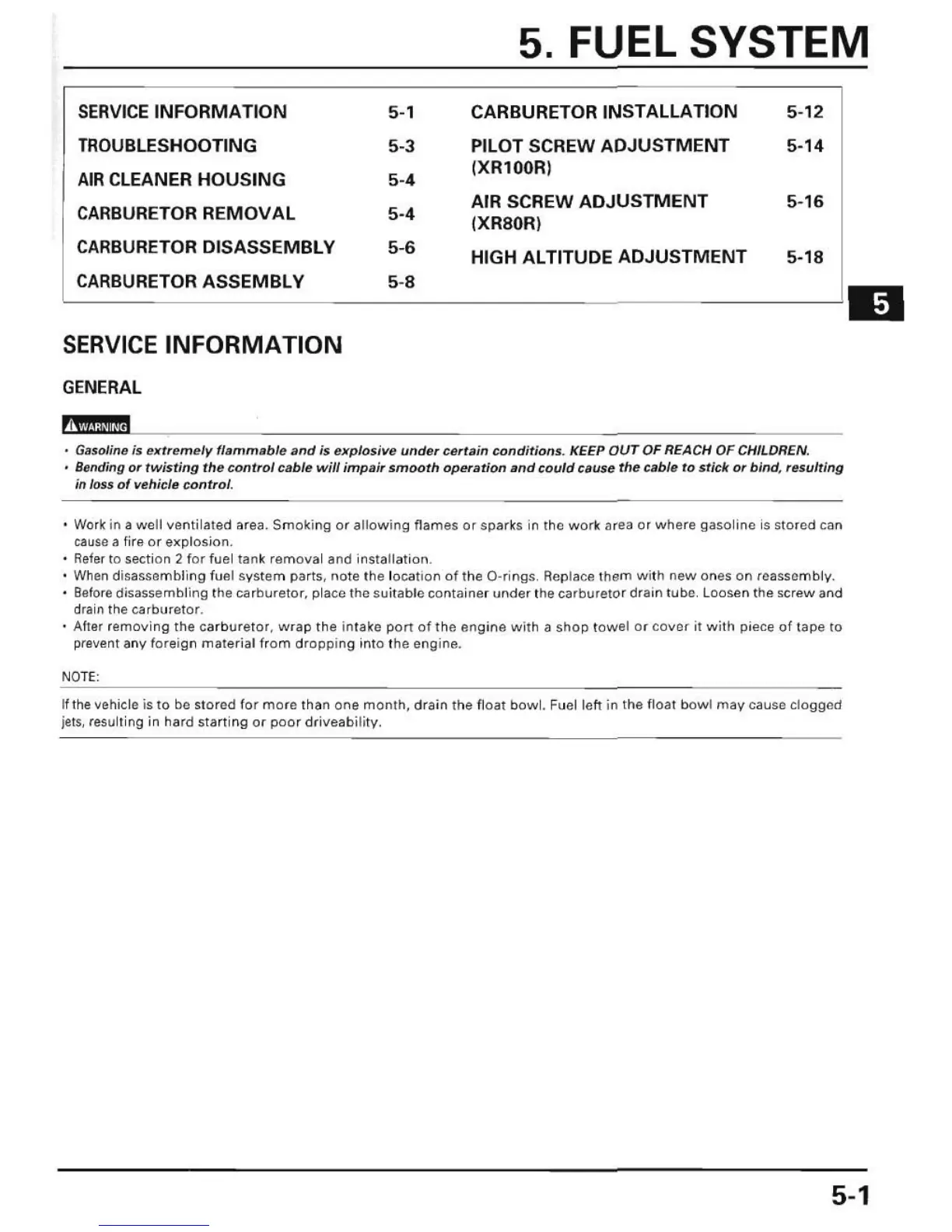

5. FUEL SYSTEM
CARBURETOR INSTALLATION
PILOT SCREW
ADJU S TM E NT
!XR100R)
AIR SCREW
ADJUSTMENT
( XRSOR )
HIGH ALTITUDE ADJUSTMENT
5-12
5-14
5- 16
5-18
CARBURETOR ASSEMBLY 5·8
~---------------- ---- ----~ II
SERVICE INFORMATION
GENERAL
Pi ;Uki!iiij
• Gasoline is e xr rem e/y fl ammab le and is explosive un d er cer t ai n cDndition s. KEEP OU T OF R EA CH OF CHILDREN.
•
Bending or Twisti ng the cont rol cable will i mpair smooth operati on and could r;6use the cable to stick or bi nd , res ul T in g
in
/OS5 of vehlclit c on trol.
, Work in II well lIentilated area. Smoking or all owing flames or sparks in the wort area OJ where gasoline is stored C(ln
cause a fire or explosion.
• Refer to section 2 for fue l tank remova l and installation.
•
When disassembling fuel svstem pa rt s. no te t he location of the O-rings Re pl ace Iham with new ones on reassambly.
• Betore
disassembling the carburetor . place the suitab le co nl ainer under t he ca r buretor drain tube. loosen the sc r ew a nd
dra in the ca rbureto r.
· Attar r emov ing t he car buretor. wrap the intake pon of t he engi ne with a shop towe l o. COvar it with pi ece of tape to
prevent any foreign material fr om d ropp i ng into the engine.
NOTE:
If the vehicle is to bo st ored for mo re than one month, d ra in the float bow l. Fuel left in the float bow l may cause cl oggod
jets, resulti ng in hard starting or poor driveability.
5-1
