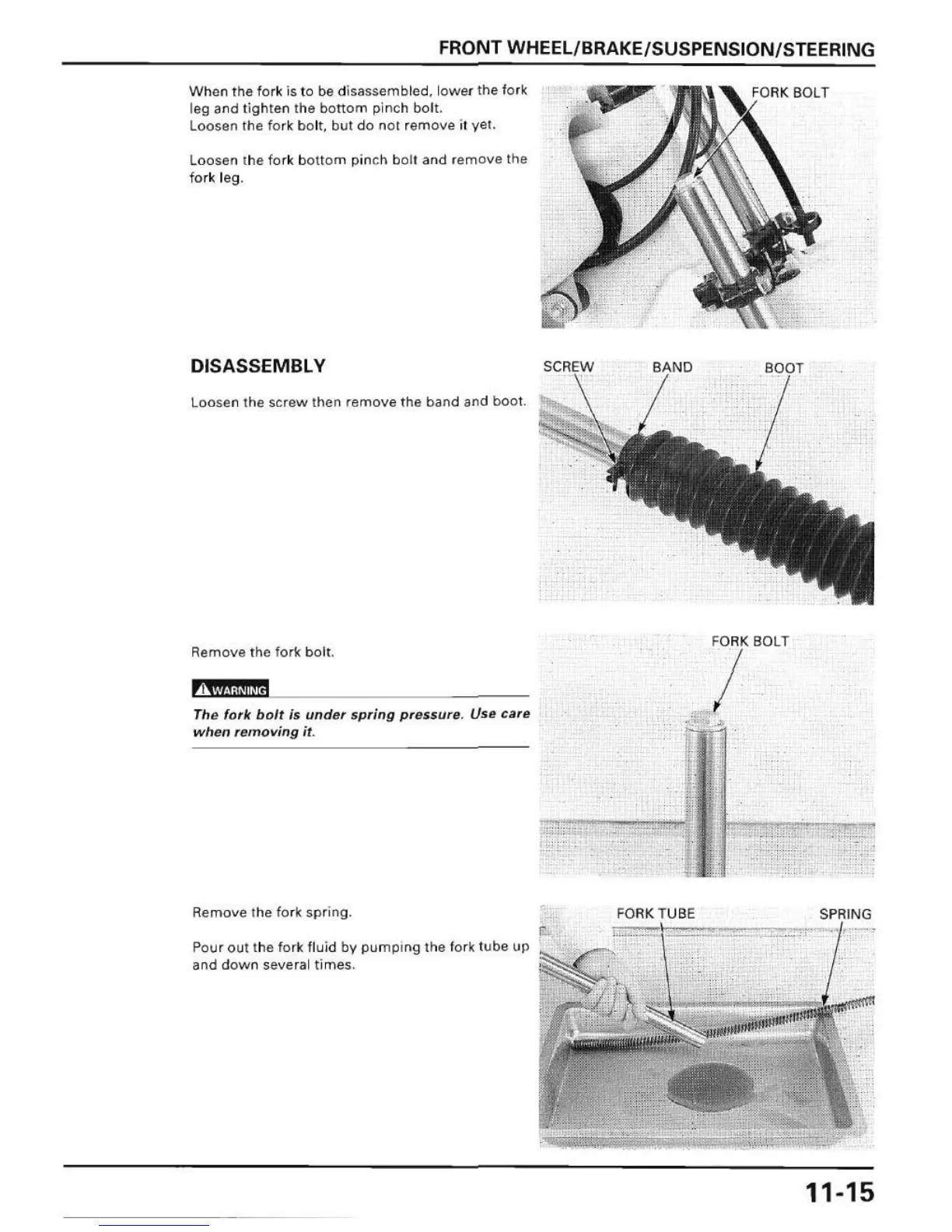

FRONT WHEEl / BRAKE /SUSPENSION /S TEERING
When Ihe fork is 10 be disassembled, l ower the for~
leg and l ighten the bonom pinch bo ll.
Loosen the for k bol l, but do nOt remove il yel.
Loosen the for k b ollom pinch bolt and r emove the
f or k leg.
DISASSEMBLY
Loosen the screw then remove the band and boot .
Remove Ihe fol1c bot t.
flMWiiiM
Th e fork bolt ;s under sp rin9 pressure . Us", ':;u ",
when remo v ing it .
Remove the fork spring.
Pour
out the for k fluid bv pump i ng the fork tube up
and down several times.
FO RK BOLT
/
-:? ."
i
--, -.~,
11-15
