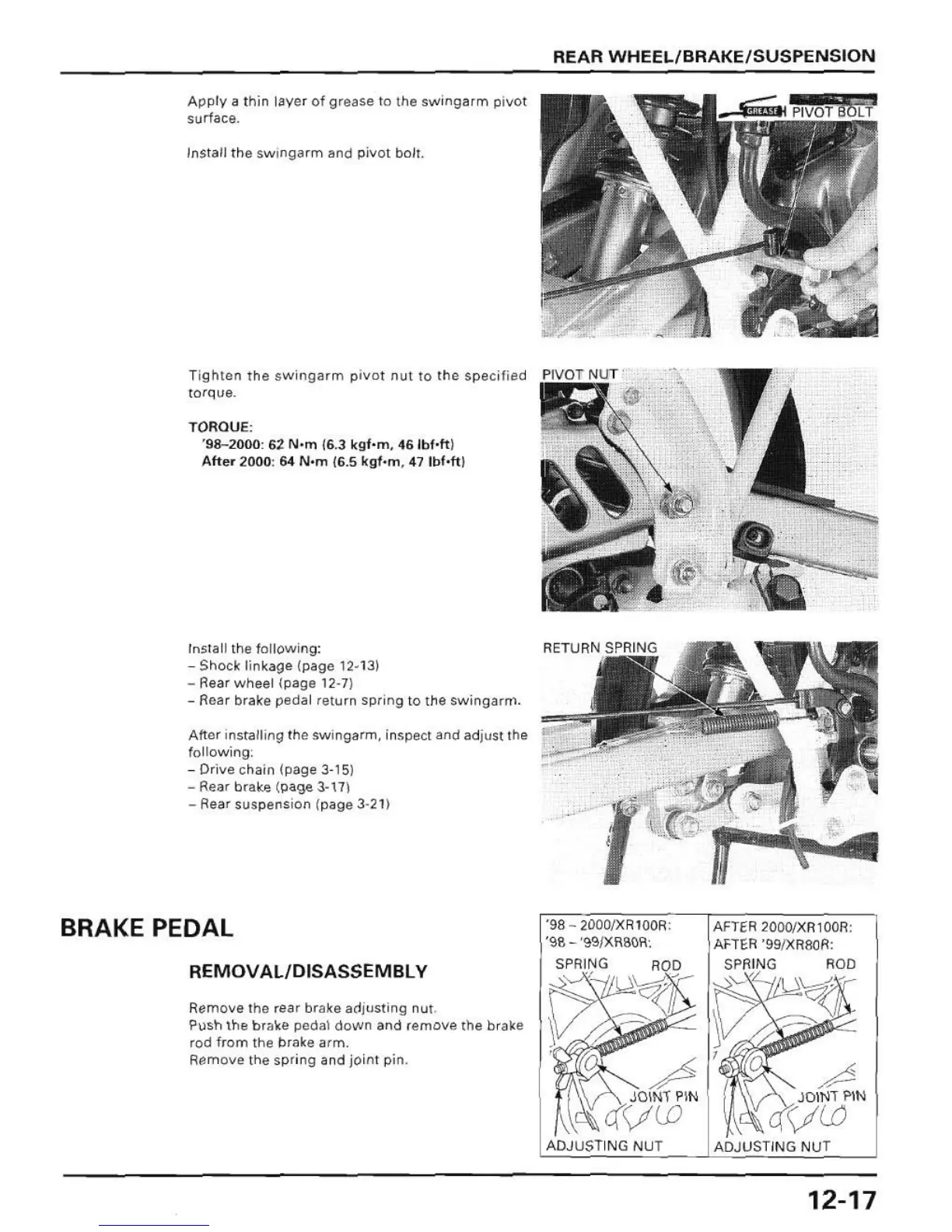

Apply a thin layer of grease to the swing arm pi llot
surface.
In$lalllhe sw.ngarm and pillot bolt.
Ti
gh ten Ihe swingarm pi llot nut 10 Ihe spl!ci fied
torque.
TORQUE:
' 98-2000: 62 N·m 16.3 kgf·m . 4 61bHt )
Atter 2000: &4 N.m 16.5 kg/·m . 47 I bl·tt )
In51ali
lhe follow ing:
- Shock linka ge (page 12· 1 31
- Re ar wheellpage 12· 7)
- Rear brake ped al return spring 10 the swingarm .
Atter inSlalling Ihe sw ingarm. inspect and adjust Ihe
foll
owing :
- Dri ve ctlain Ipage 3· 151
- Rear bra ke (page 3·111
- Rear suspensi on (page 3-211
BRAKE PEDAL
REMOVAL / DISASSEMBLY
RemOlle the reM br ake ad j usti ng nUl.
Pu
sh \hl! blake pedal down a nd remolle Ihe brake
rod
from Ihe brake arm.
Remove the spr
ing and joi nl pin.
REAR WHEEL/BRAKE /S USPENSION
'98 - 2000/XR1 00R :
' 98 - ' 99! X \l.SCFI :
SPRI NG
P
JOINT PI N
i \\""a:V
LO
ADJu STING NUT
AFTER 2000/ XR1 00R:
AFTER
'99f)(R80R:
~
JD INT f>lN
(lW
ADJUSTING NUT
12-17
