FRONT WHEEL/ BRAKE /SUSPENSION/STEERING
FORK
11 -14

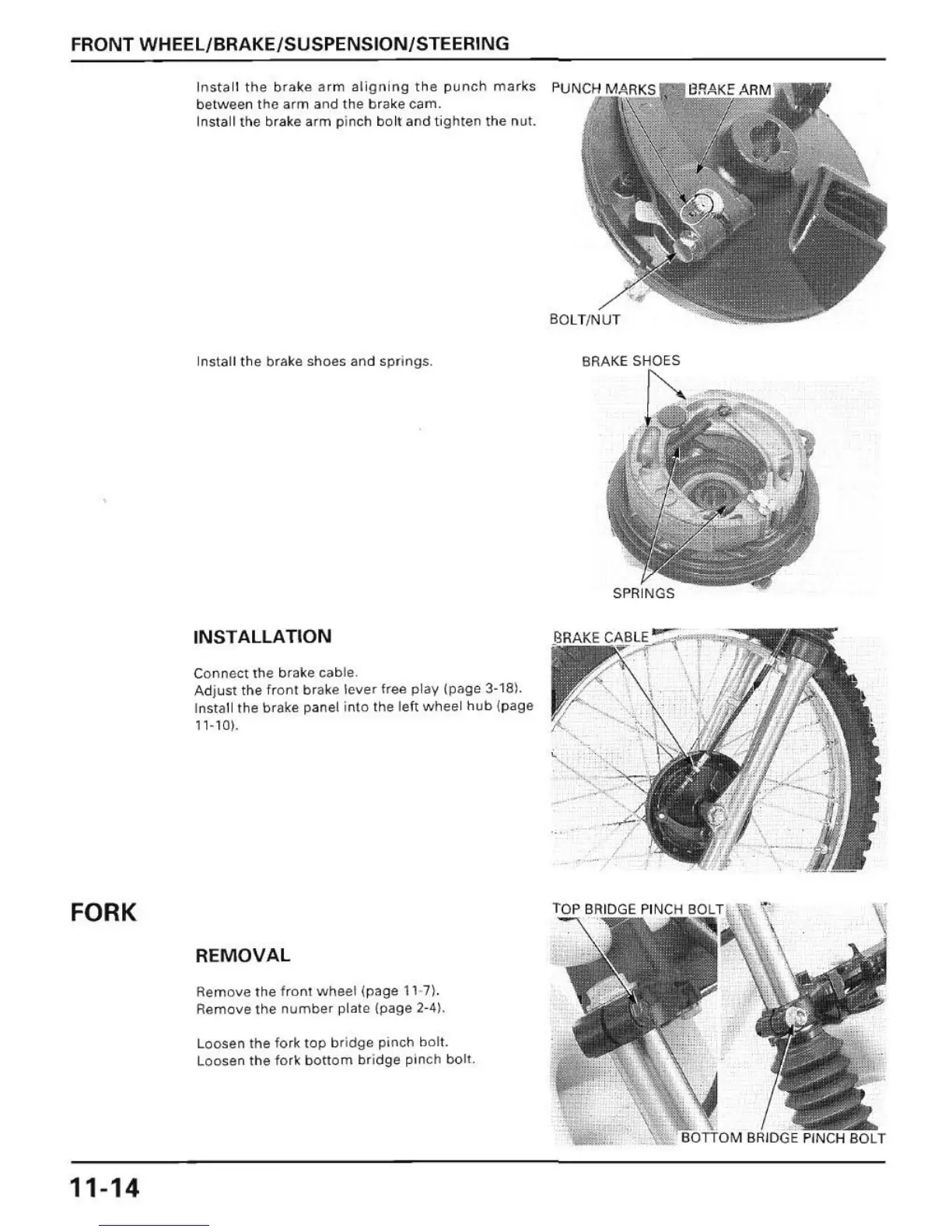

Inst,, 11 the bra ke arm align i ng the punch marks
between the arm and the br" ke cam.
Install the br" ke arm p inc h bol l and tig hten the nul.
I
nst,,11 the brake shoes and sp r ings.
INSTALLATION
Connect the b ra ke cable.
Adjust the fr ont brake lever free pl ay (page 3-18).
Install the brake panel into the left whee l hub ( page
11 -10).
REMOVAL
Remove the front wheel (page 11 · 7).
Remove the number plate (page 2·4).
Loosen the fo rk top b ridge pinch bolt.
Loosen the
for k bonom bridge pinch bolt.
BOLT/NUT
BRAKE SH,'ES
