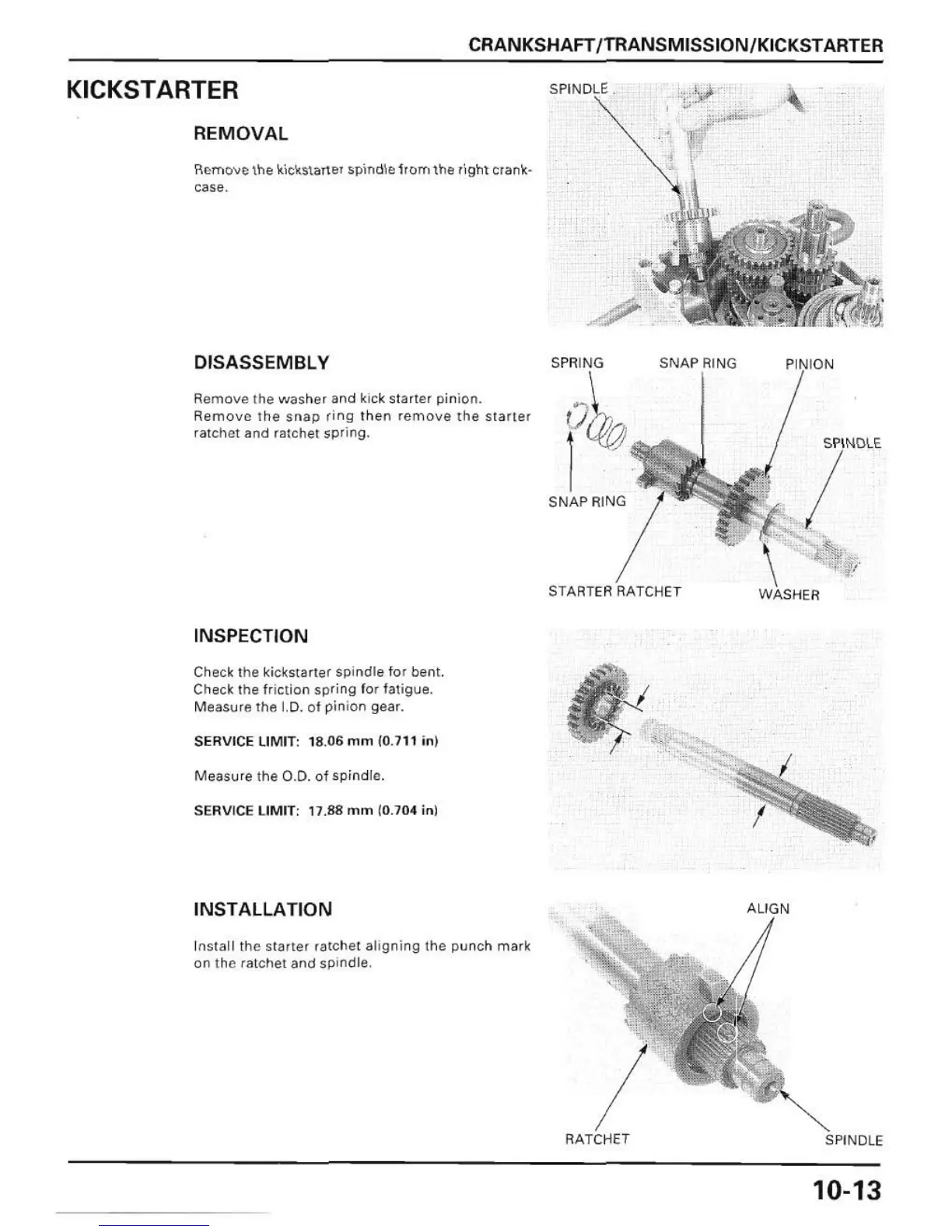

CRANKSHAFT/ TRANSMISSION/KICKSTARTER
KICKSTARTER
REMOVAL
Remove the "'ic~ M aTte r ~pind\e 110 m the light cran ~ ·
case.
DISASSEMBLY
Remove The wash er and ~ ic k starter pinion.
Remove the snap ring the n remove the starler
ratchet and ratchet spring.
INSPECTION
Check the kickstarte( sp i ndle to r belli .
Check the fr ic tion spring for fatigue.
Measure
the 1. 0. ot p inion gea r.
SERVICE LIMI T: 18.06 mm (0. 711 in )
Measure Ihe 0.0. 01 spind le.
SERVICE LI MIT : 11.88 mm 10.10<4 inl
INSTALLATION
Install the slarter ratc het al igning the punCh mark
on the ratchet and sp indle.
SPR I NG
t7~
1 .
SNAP RING
/
RATCHET
" :V
,
SNA P
10-13
