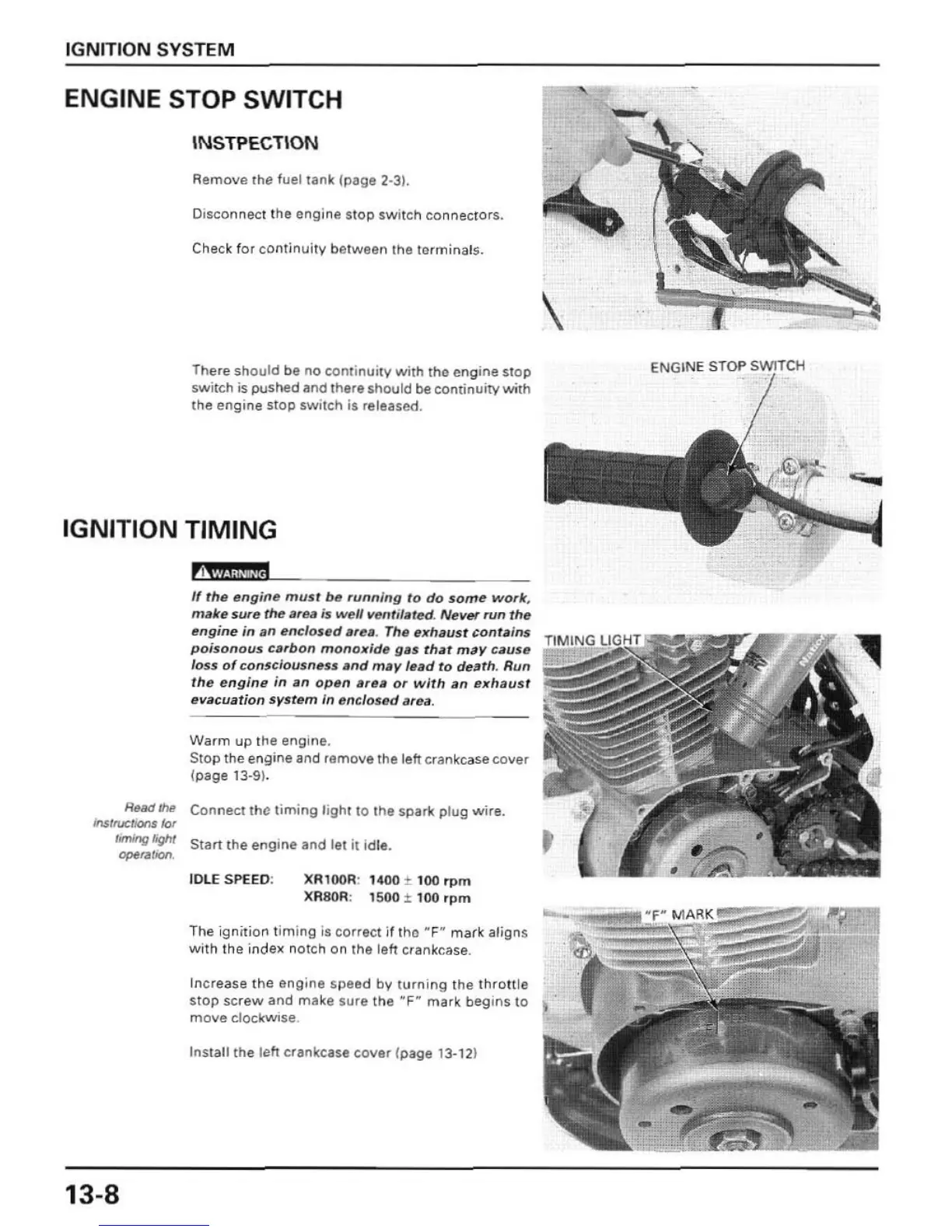

I GN ITION SYSTEM
ENGINE STOP SWITCH
I NS TPECTI ON
A~move the fuel tank (page 2·3).
Disconnect the engine
sto p switch connectors.
Check for continuity between the tmminats.
Tllere should
be no continuity with tho engine stop
switch is pushed and the re should be continuity with
the engine stop switch is released.
IGNITION TIMING
II the engine mus' be runn i ng to do some work .
mllke s ure rhe arell is we" v tlllti / ilred . Nev¥ run the
engine In an IIm::/O$ ed IIreil. The e:rhaust C O","ins
poisonous t:Jlrbon monoll/de gu that m8Y cause
loss of t:onsdoU$neu Jlnd may lead to de!Jth. R un
the engine In an ope n II,ell Or with an exhaust
eucuation system In enclOSed area .
Warm up the engine.
Stop the engine and remove the left Clankcase cover
(page
13·9).
RHd 1M Connect Ihc timing lighl to the spark plug wire.
InsIruc:rIons lot
- ....
operallOn .
13-8
Stan the engine and let it idle.
IOU: SPE ED : XA100A:
XA80A:
1400 ± 100 rpm
lS00 ± 100 rpm
The ignition timing is correct il tha " F" mark aligns
with the index notCh on the lett crank case .
Increase
the engine speed by turn ing Ihe throttle
Slap screw and make sUle the " F" mar k beg,ns to
move clOckwise.
Install Ihe left crankCilse
cover (page 13·12)
-
\
-
