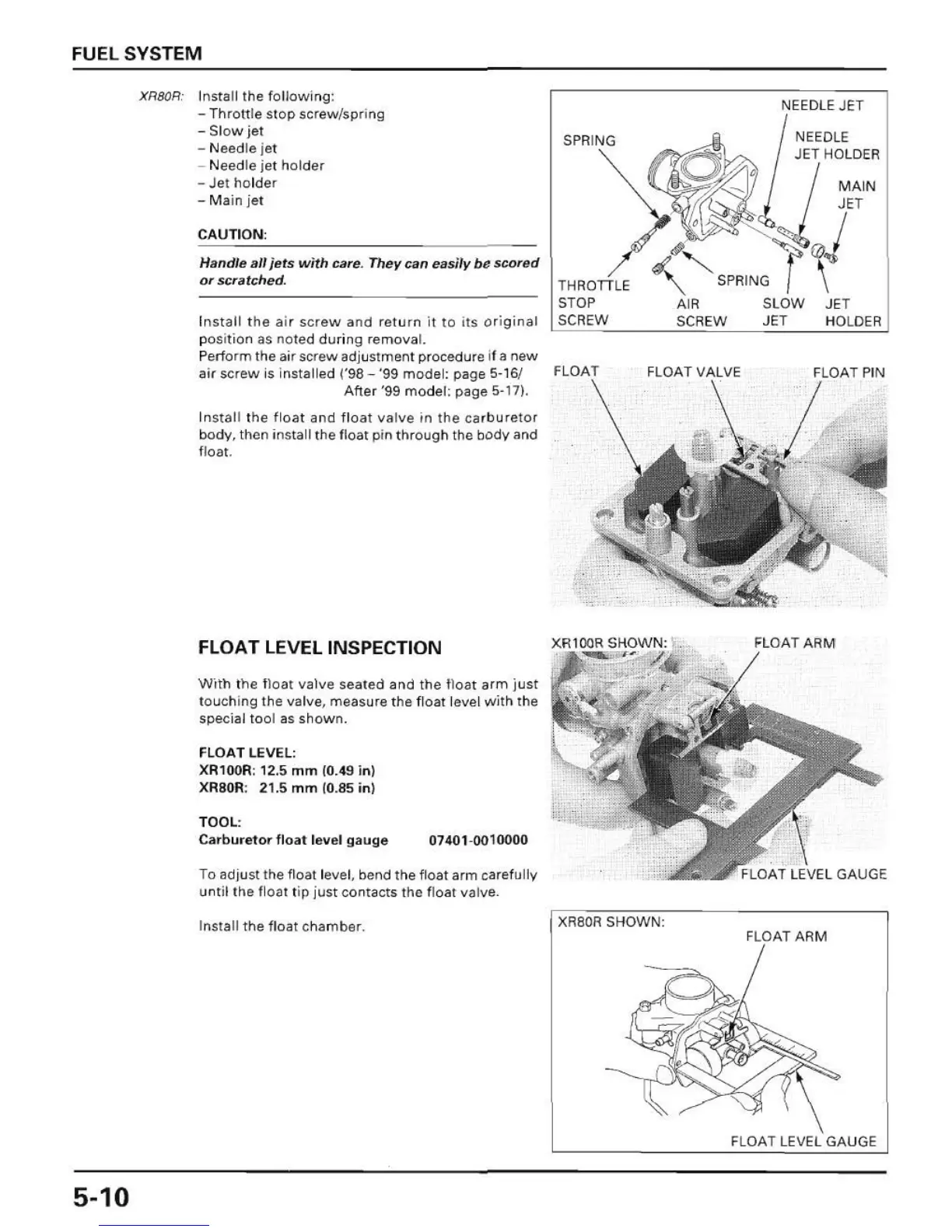

FUEl SYSTEM
5-10
XR8{)R. Instalilhe following:
- ThrOTtle stop screw/spring
-
Slow jet
-
Needle jet
-
Needle jet holder
- JeT ho lder
- Main jet
CAUTION:
Handle all j els wi th care. They can easi ly be s co red
or s cral c hed .
Inslall t he air screw and reTurn iT to its or i ginal
position as noled dur i ng remova l.
Pe rf orm the air screw adjustment procedure if a new
ai r screw is installed ('98 - '99 mode l: page 5·16,1
After '99 mo del: page 5·17).
Insta
ll the f l oa l and lIoat valve in the ca rbureTor
body. I hcn install The float pin through the body and
lIoat .
FLOAT LEVEL INSPECTION
Wi th t he !loaT valve seat ed and the float arm jusl
t ouC hing The valve, measure the f loallevel with the
special 100 1 as shown.
FLOAT l EVEL:
XR100R: 12 .5 mm 10.49 in)
XR80R: 21.S mm 10. 85 in)
TOOL:
Carburetor float level gauge 07401·001 0000
To adjust the floaT level, bend the float arm carefully
until
th e float tip jusl contacts The float valve.
I
nST all the fl oat chamber.
NEEDLE JET
SPR ING
NEEDLE
JET
HOLDER
THROTTLE
STOP
SCREW
~~?:l~ ~J ~~ N
.. ,J
~ SP RING \
AIR SLOW JE T
SCRE W JET HOL DER
""A> P<N
XRBOR SHOWN:
FLOAT ARM
FLOAT LEVE L GAUGE
