GENERAL INFORMATION

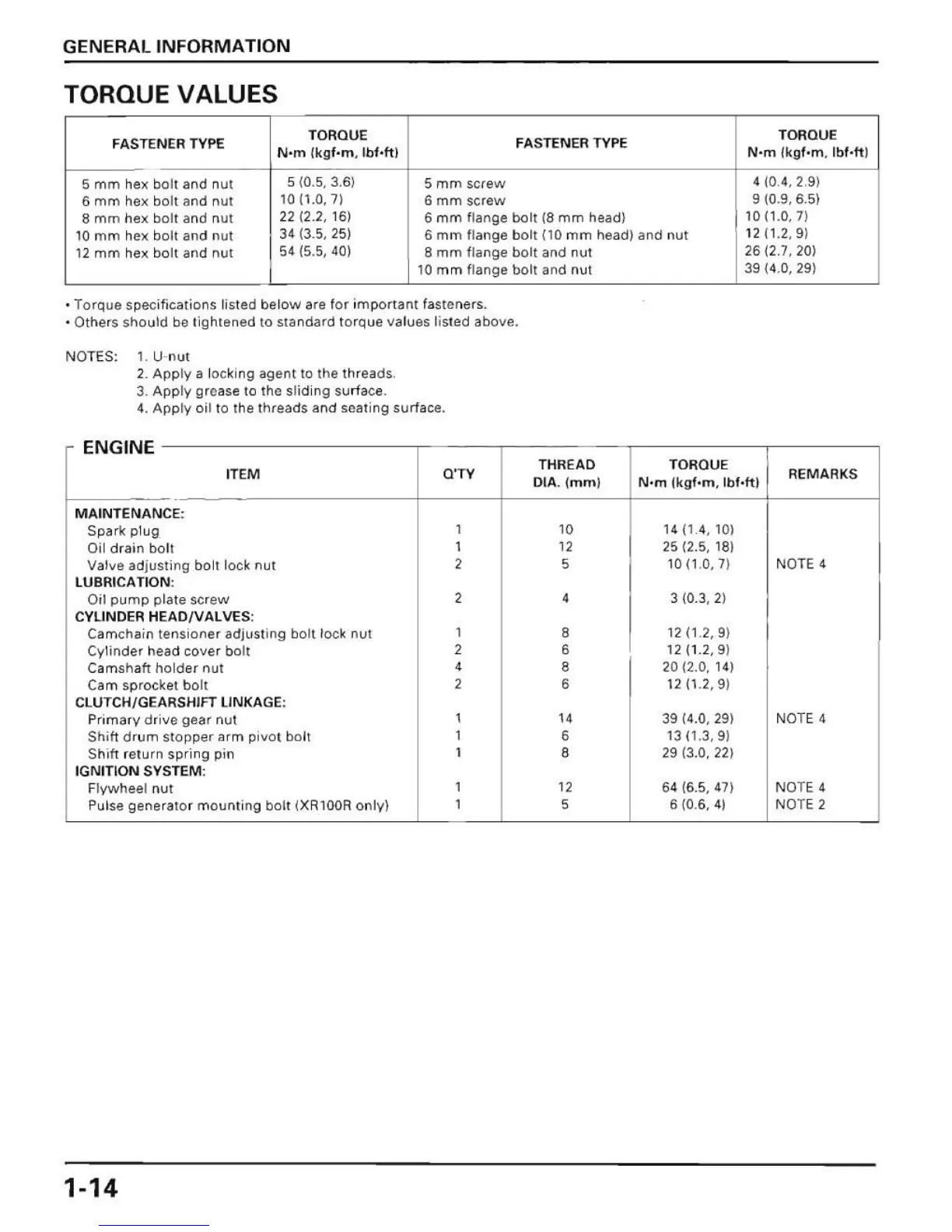

TORQUE VALUES
FASTENER TVPE
TOROUE
FASTENER
TYPE
TOROUE
N·m ( kgf·m. IbM t )
N·m ( kg/.m ,
Ib/·ft l
5 mm hex bolt and nut
5 (0. 5, 3.6)
5 mm screw
4 (0.4, 2.9)
6
mm hex bolt and nut
10 (1.0. 7)
6 mm screw
9 (0 .9, 6.5)
8 mm hex bol! and nut
22 (2.2, 161
6 mm flange bolt (8 mm head)
10(1 . 0,7)
10 mm hex bol! and nut
34 (3.5. 25)
6 mm flange b olt (10 mm headl and nut
12 (1.2, 9)
12
mm hex bOI! and nut
54 (5.5, 40)
8 mm Ilange bolt and nut
26 (2.7, 20)
10
m m flange bolt and nul
39 (4.0, 29)
• Torque specifications listed below are for impOrlant fasteners .
• Others
sho ... ld be tigh lene d to standard torque lIalues listed abolle.
NOTES:
1. U-nut
2. Apply a loc ki ng agenl to the threads.
3. Apply grcase to tho slid ing su rf a.ce .
•. Apply Oil to the threads and scating surface.
ENGINE
ITEM
O'TY
THREAD TORQUE
DIA
.( mm l
N·m Ikg f·m. Ibf·ftl
REMARKS
MAINTENANC
E:
Spark plug
,
"
U(U.l01
Oi l dra in bO lt
,
"
25 (2.5, 18)
Vallie adju sting bo lt lock nut 1 5
10 (1.0.7 ) NOTE 4
LUBRICA
nON :
Oil
pu mp plate screw
1
•
3 (0 .3 , 2)
CYLINDER HEAD /V ALVES:
Camchain lensi oner adjusting bolt loc k nUl
,
8
12 (1.2, 9)
Cyl inder head cOlier boll
2 6
12
(1.2, 9)
Camsha ft ho l der nut
•
8
20 (2.0. 14)
Ca m sprocket b olt
2 6
12
(1.2, 9)
CLUTCH/GEARSHIFT LINKAGE:
Pri mar y d ri lle gear nut
,
"
39 (4.0. 29)
NOTE 4
Shift drum stopper a rm pillot bolt
,
6
13(13,9)
Sh ift rel urn spr ing pin
,
6
29 (3.0. 22)
IGNITION SYSTEM:
F lywheel n ut
,
"
6<1 (6.5, 47 ) NOTE 4
Pulse generalor moun ting bol t ( XR IGOR onl y)
,
5
6 (0.6. 41
NOTE 2
1-14
