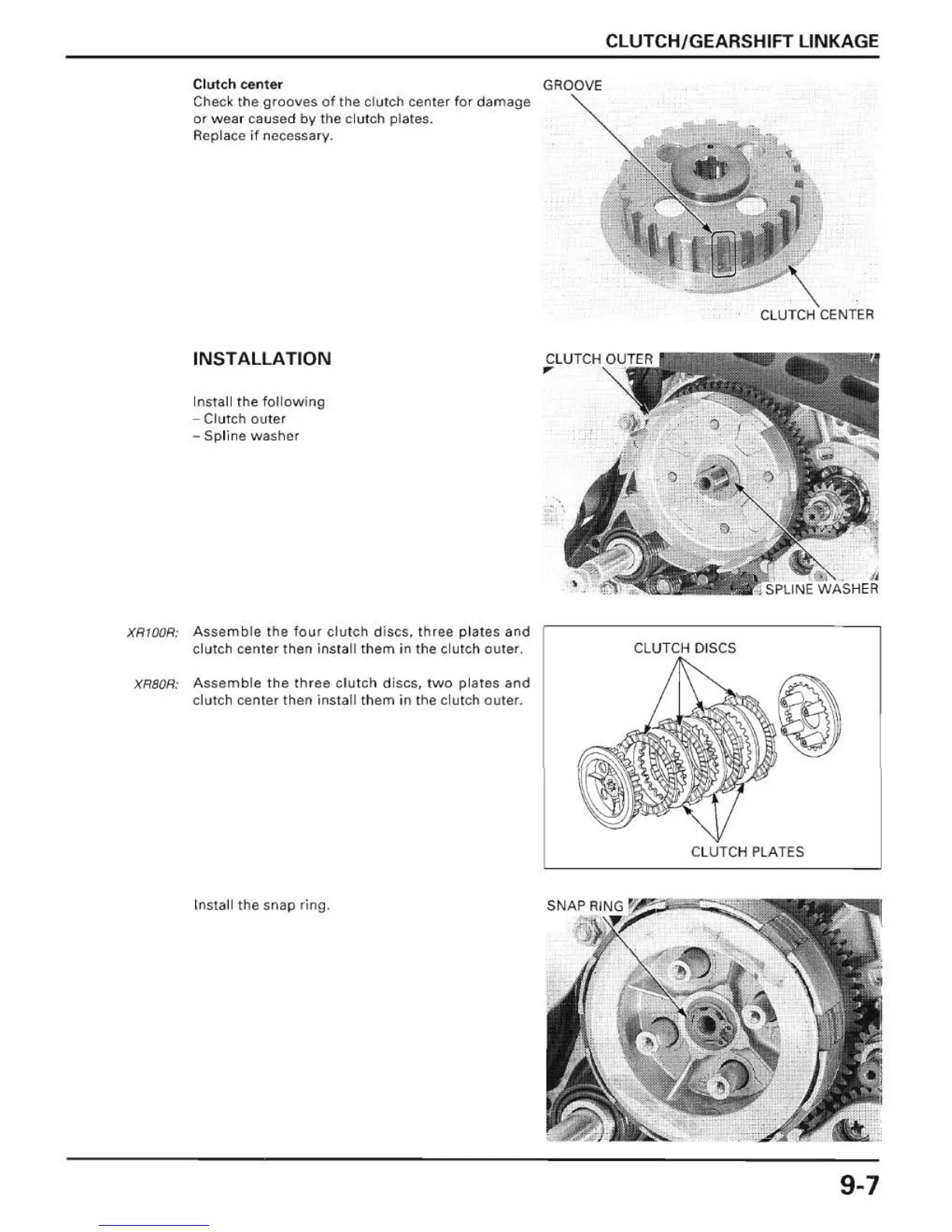

Clutch center
Check th e grooves of Ihe clutch center for damage
or wear caused by the clutch plates.
R epl ace if necessa ry_
INSTALLATION
I nSTal l th e f ollo w ing
-
Clutch outer
- Spli ne washer
XRI00R: Assemb le the four clutch discs. three plates and
cl utch cenTer T he n ins tall th em in the Cl UTCh OUTer.
XR BOR: Assemb le the t hree clu tch d iscs, t wo plat es and
Cl U Tch center Then install th em in the clutch outer.
Install the snap ring.
CLUTCH/GEARSHIFT LINKAGE
GROOVE
cum " PLATES
9-7
