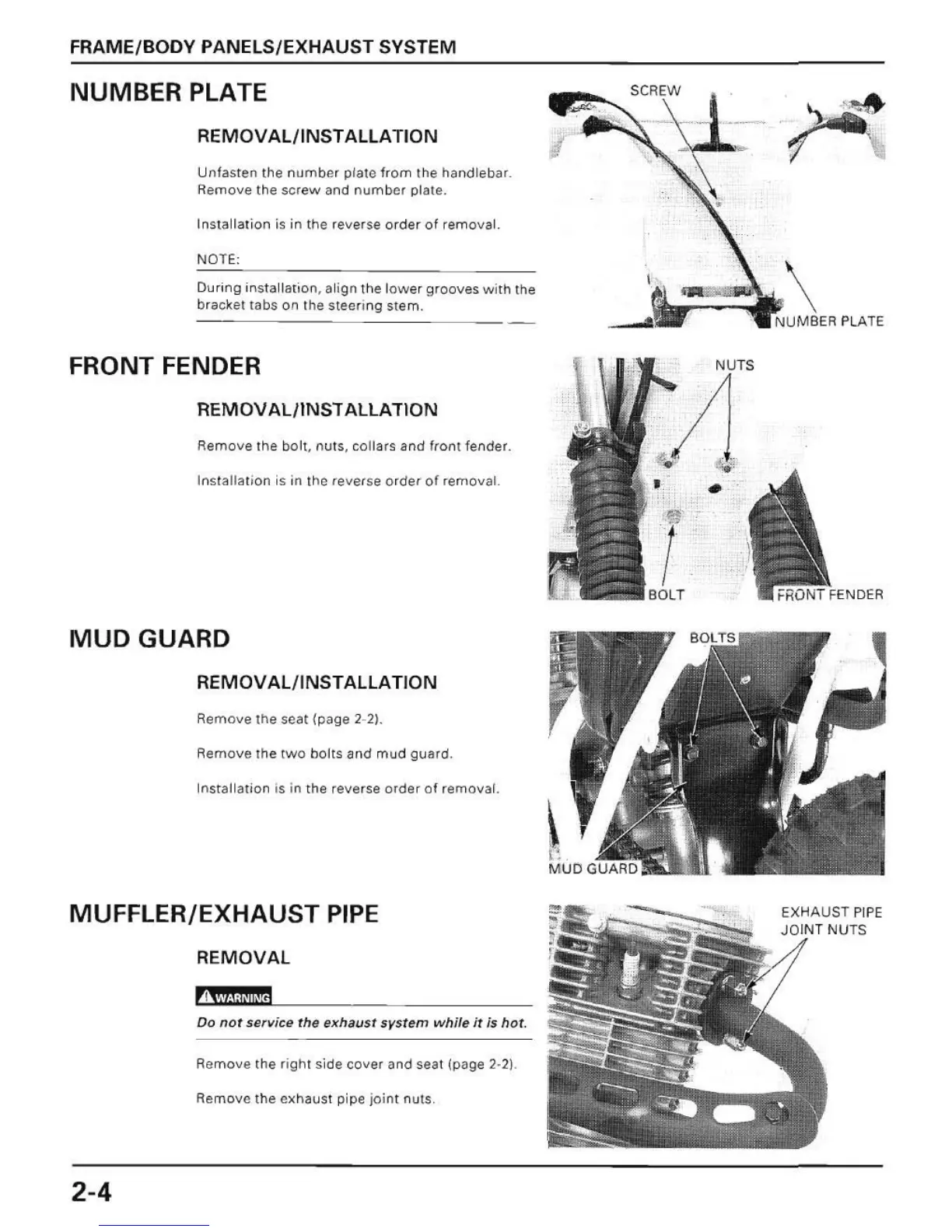

FRAME/ BODY PANELS/EXHAUST SYSTEM
NUMBER PLATE
REMOVAL/INSTALLATION
Unfasten the number pla1(l from Ihe handlebar
Remove
the screw and number plate.
Installat
;on is in the reverse order 01 removal.
NOTE:
Du r ing insta llation, al ign th e lowe r grooves with the
bradet tabs on the steering stem.
FRONT FENDER
REMOVALJlNST AllAT10N
Remove the bolt, nuts, collars and front fender.
Insta llation is in the reverse order of removal.
MUDGUARD
REMOVAL/INSTALLATION
Remove the seat (page 1-1).
Remove
Ihe two holts and mud guard.
Install
ation is in the reverse orde r of re moval.
MUFFLER/EXHAUST PIPE
REMOVAL
00 no t ser llice t he ex haus t syst em w hile if is hor .
Remove the right side cover and seat (page 1- 2) .
Remove
the eXhaust pi pe join t nuts
2-4
,",'B" PL ATE
EXHAUST
PIPE
