Honda XR100R User Manual

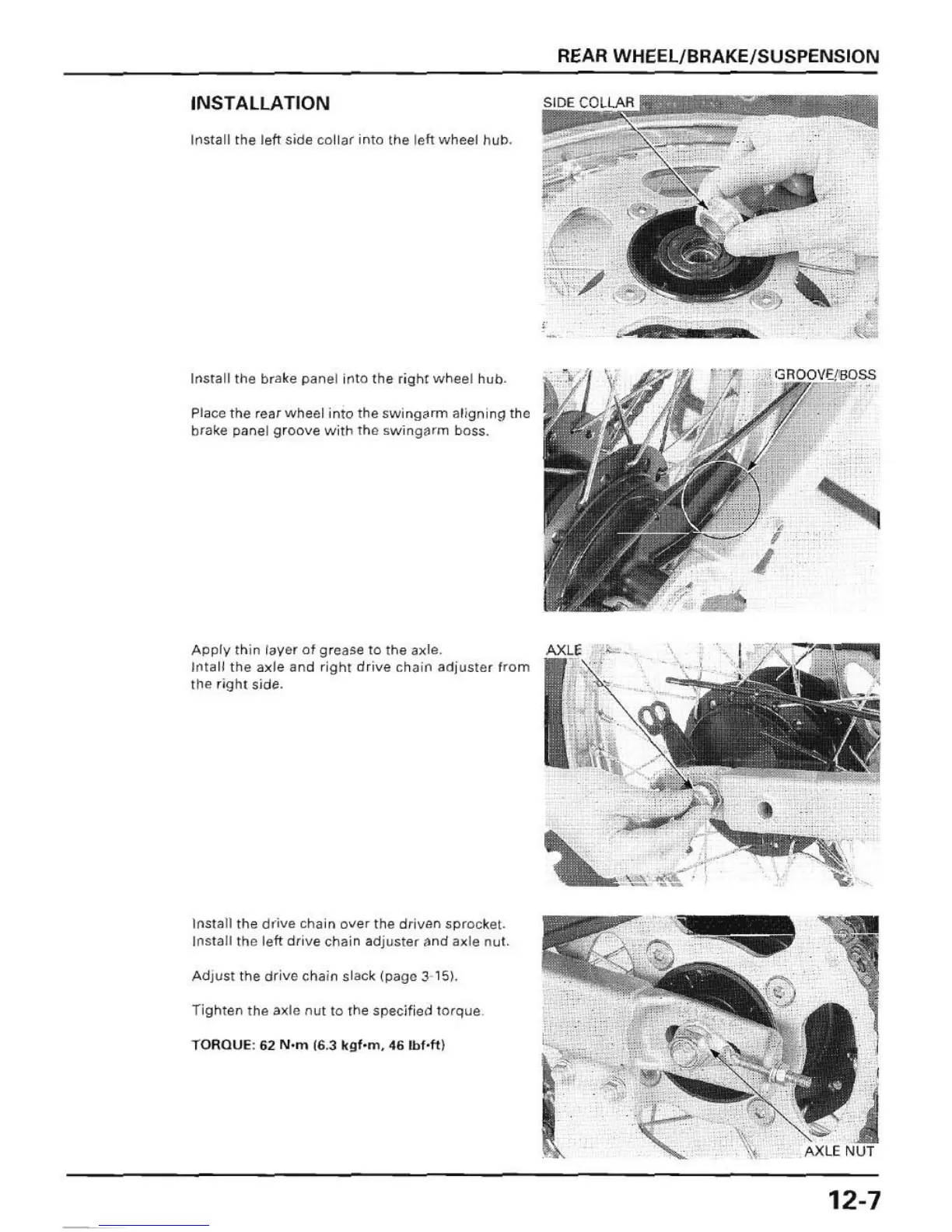

INSTALLATION
Ins tall the left side coliar into the l eft wheel hub.
Inst all tile bra ke pa ne l into the f ight whee l hub.
Place the rear wheel into the swing~rm ali gn ing the
brake
panel groove with the swing;lrm boss.
Apply th in layer 01 gre;lse to the axle.
Intall the axle and right drive cha in adjuster f rom
ttle righ l side.
Insta
ll the drive chain o"er the driv"!) spro cket.
Install the
left driv e chain adj uster ;lnd axle nut.
Adjust the dr ive chain slack (page 3- 15).
Tighten the a~ le nut to Ihe specified tOrque.
TO RQU E: 62 N'm (6.3 kgf .m, 46 I bl · ft )
REAR WHEEl / BRAKE /SUSPENSION
12-7
