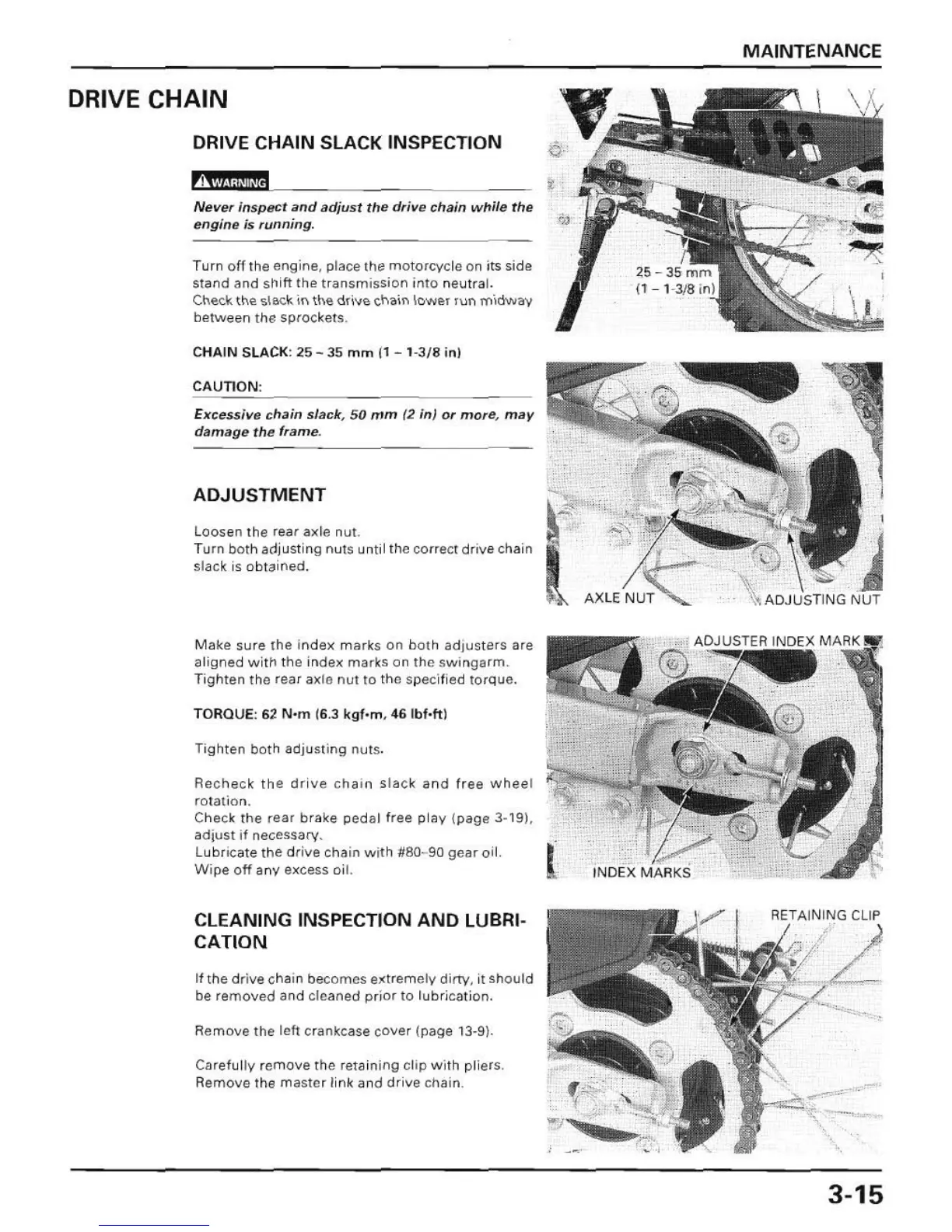

DRIVE CHAIN
DRIVE CHAIN SLACK INSPECTION
'1 iIi/ ; j'.' ii M
Ne v er in sptICl "nd adjust the dr ive c hai n while the
engi ne is fun nin g.
Turn off the engine, place the mo torcycle on its side
stand and shi ft the tr ansm ission into neutr al.
Check the <;103<:\ , if'> t he dri"'fI en .. in lo wer!l'" midway
between the sprockets.
C HA IN SLACK: 25 - 35 mm 11 - 1 -3 /8 in)
CAUTION:
Excessive c hain slack, 50 mm (2 In} or morfl , maV
dllmilg e the frame.
ADJU S TMENT
Loosen the .ear ax le nUl .
Turn bo th adjusting nuts un til the correct drive chain
slack is ob!.~ i ned .
Make Sure the i ndex mar ks on both adjusters are
align ed w ith the i rl dex marks on the swi n garm
T ighten the .ea T ax le nut to Ih.:. speci fi ed torque.
TORQUE: 62 N·m 16.3 kgf .m, 46 I bf.f t )
T ighten both adjusting n uts .
RecheCK th e dr i ve Ch ain slack and free whee l
rOl atio n.
Chec k the rear br ake pedal free play (page 3-19).
adiust if necessa,,{.
L ubr ic ate the d riv e chain w it h 1/80 -90 geilr oil.
W ip e off any excess oil.
CLEANING INSPECTION AND LUBRI-
CATION
If t he dr ive chain becomes e ~ treme l y dirty, it should
be removed and cle aned prior to lubrication.
Remove the l eft crankcase cove r (page 13 ·9).
Carefully remove the retaining clip with pliers.
Remove the master link and drive chain.
MAINTENANCE
3-15
