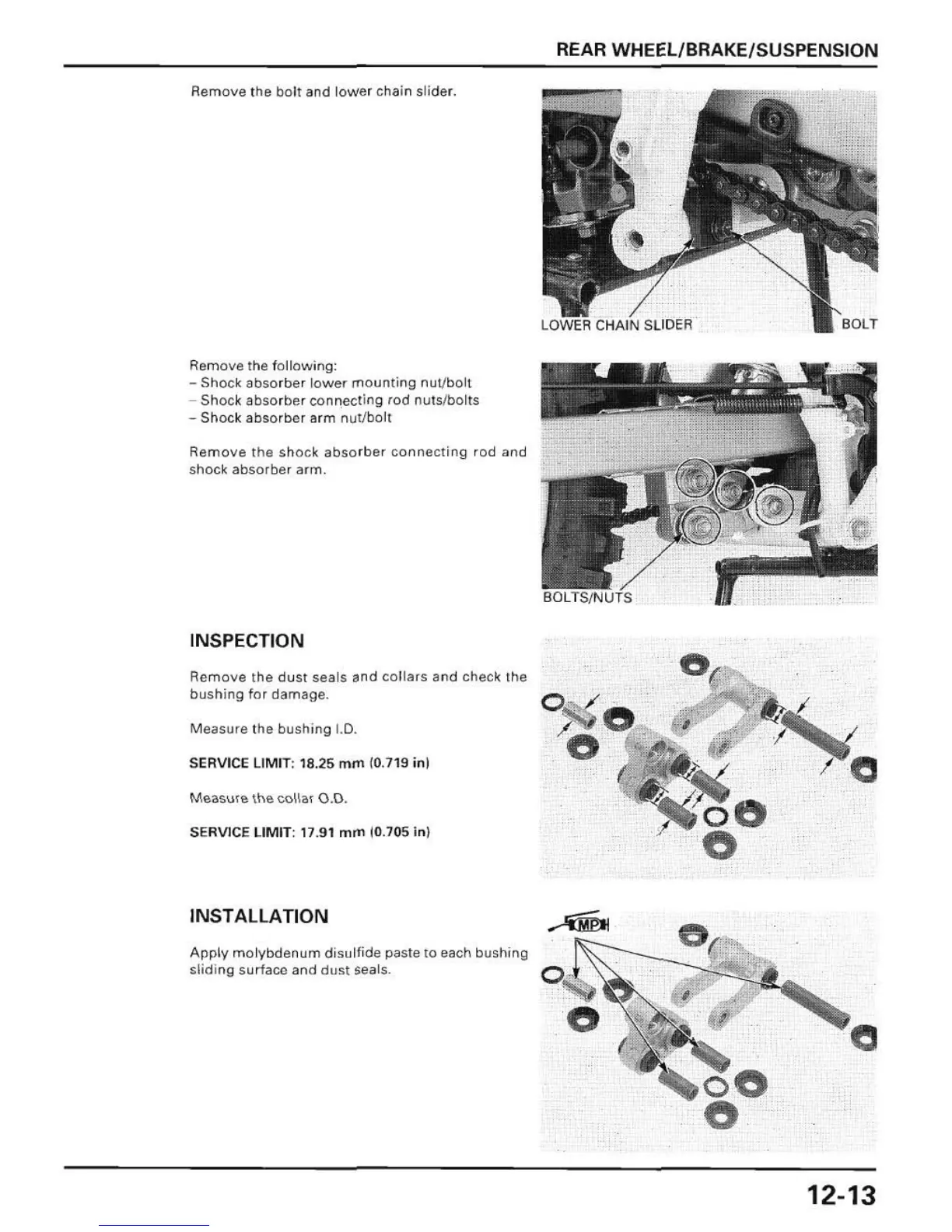

REAR WHEEL/BRAKE/SUSPENSION
Remove [he bolt and lowe r chain slider.
Remove the f ollow ing:
- Shock absorber l ower mounting nut/bo lt
- Shock absorber connecti ng ,od nu ts/bolts
- Shock absorber arm nutJbolt
Remo ve the shock absorbe, connecting rod and
shoc k absorber a, m.
INSPECTION
Remov e the dus t seals and collars and chec k the
bushing for damage.
Measure the bushing 1.0.
SERVICE
LIMIT: 18.25 mm (0 .7 19 inl
SE RVI CE LIMIT: 11.91 mm 10.105 inl
INSTALLATION ~
Apply molybdenum disulfide paste to each bushifl9
slid iflg surface and dust ~eals . 0 -
12-13
