Honda XR100R User Manual

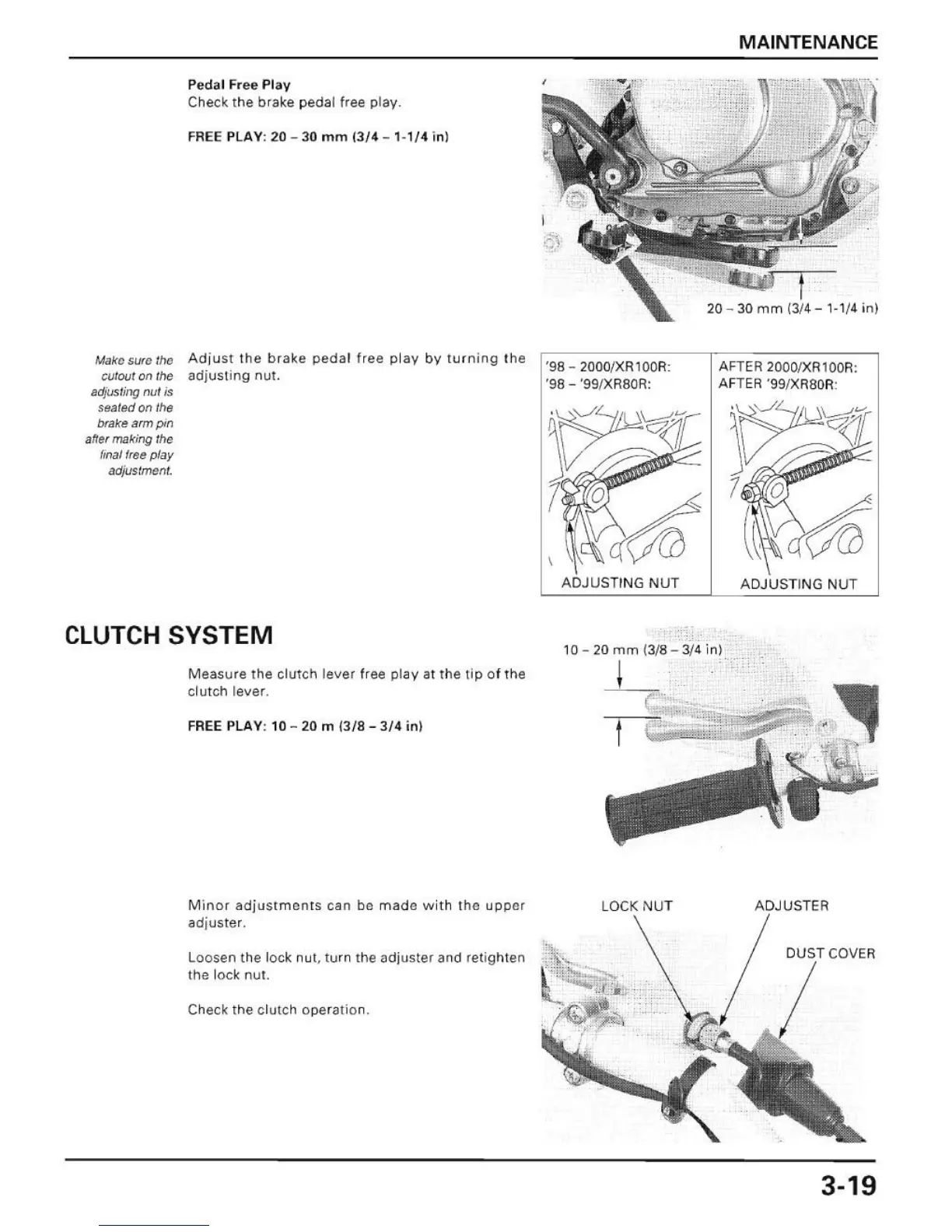

Pedal Free Play
Check the brake pedal tree pl ay_
FREE PLAY: 20 - 30 mm (3/ 4 - 1· 1'" in)
MakCSIJI'I!Ihc Adjust (he brake peda l f ree pl ay by t ur ning Ihe
cutou t en t/le adjusting nut .
ad j lJSl i ng nut is
s ~ a r o>d Oil/he
brak .. arm pm
a ~~ ' making lhe
"nallre" play
adjustment.
CLUTCH SYSTEM
Measure the clu tch l ev er fr ee pl ay al th e tip of the
clutch lever.
FREE PLAY, 10 - 20 m (3/8 - 3/ 4 in)
M
inor a djust m ants can bo mado w ith Iho upper
adjuster.
Loosen the
lock nU l , tu rn the adjuster and reti ghlen
the loc I< nut ,
Check the clutc h ope ration.
I
."
'98 - 2000jXR100 R:
'98 - '99/ XR 80R:
ADJUS TING N UT
MAINTENANCE
AFTER 2 QOO f)( Al00R:
AF TE R '99/XR80R:
ADJUSTING NUT
10 - 20 mm (3/8 - 3/4 in)
LO CK NUT
3-19
