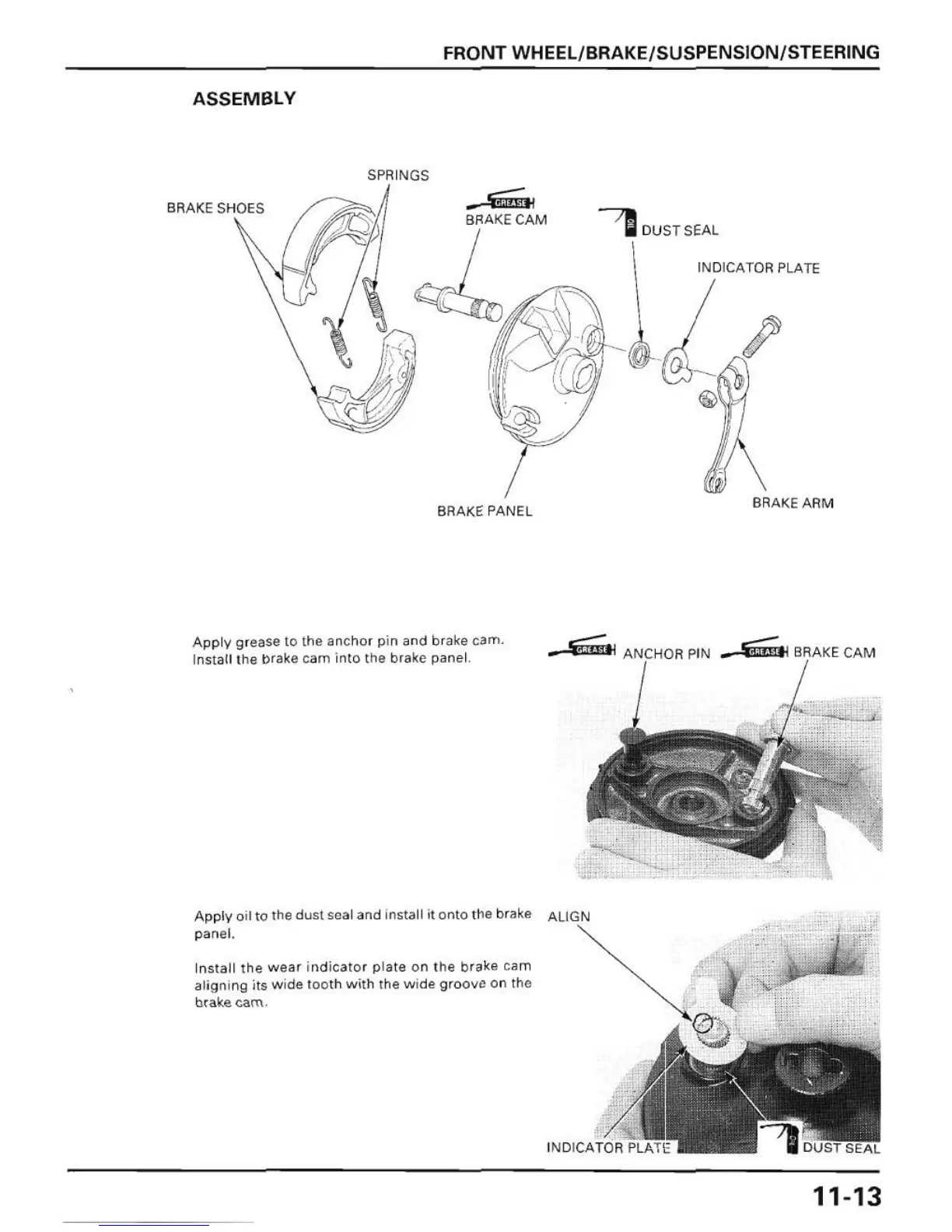

FRONT WHEEl / BRAKE/SUSPENSION/STEERING
ASSEMBLY
SPRINGS
BRAKE SHOES
---.
BRAKE CAM
~ DUSTS E A L
INDICA TOR PLA TE
,J /f;,\ II I
\ ~ 'J
BRAKE PAN EL
Apply grease 10 the anchor pi n and brake cam.
I nstalilhe bra ~ e cam inlO the brake panel.
Apply oil
to Ihe du st se al a nd insl al l il onlO Ilia brake
pan e l.
Insta ll the wear indicator plata on t he brake cam
aligni ng its wide tooth wi th the wi de groov e on t he
bfakeca m.
- - AN,H OR PON
BRAKE ARM
__ BRAIKE CAM
11-13
