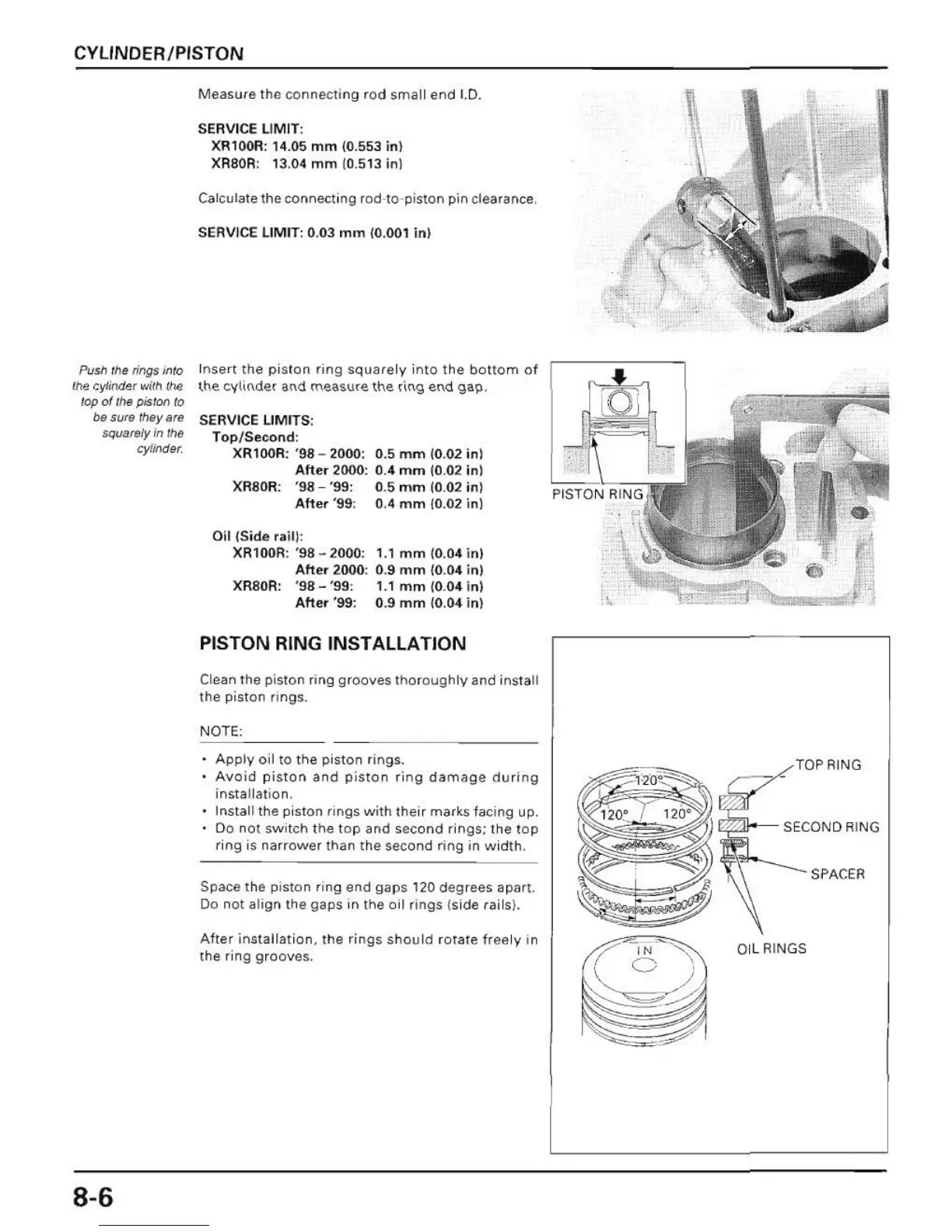

CYLINDER/PISTON
Push lil! rings into
tIl~ cylinder will'l if>e
lop of 1M p;s/oo 10
b! sure lh6y ;ira
SQ<J<!rely in ttla
cyljnd9f .
8-6
Measure The connecti ng rod small e nd 1 .0.
SERV ICE LIMIT :
XR100R: 14.05
mm (0. 55 3 in)
XRBOR : 13.04 mm (0.513 inl
Calculate the connEX:T ing rod-to-piston pin clearance.
SERVICE L IMIT : 0.03 mm (0.001 inl
Insert th e piston r ing squarel y into the bottom of
the cy linder and measure the r ing end gap.
SERV ICE UMITS:
To
p/Seeond:
XR100R: '98 - 2000:
After 2000:
XR 8OR: '98 - '99:
After '99:
Oil (Side rail ):
XR100R: '98 - 2000:
After 2000:
XR80R:
'98 - '99:
After '99:
0.5
mm 10.02 i nl
0.4 mm (0 .02 In l
0.5
mm (0 .02 inl
0,4
mm (0.02 inl
1.1 mm (0.04 i nl
0.9 mm (0.04 inl
1.1 mm (0.04 inl
0.9 mm (0.04 inl
PISTON RING INSTALLATION
Cl ean the piston ring grooves thoroughly and install
the piston rings .
NOTE:
Apply oil 10 the piston rings.
Avoid piston and p iston ring da mage during
installat ion.
Inst all the piston rings with their mar ks f ac ing up.
00 not sw itch the top and second rings; the to p
ring is narrower than the second ring in width.
Space the piston ring end gaps 120 degrees apart.
00 not align the gaps in the o il rings (side rails),
Afte r installation, the rings should r Ola te free ly in
the ring groo ve s.
,
\
,I
-- "
__ . 1
// / TOPRI NG
$:ll- - SECOND RI NG
SPACER
OIL RI NGS
