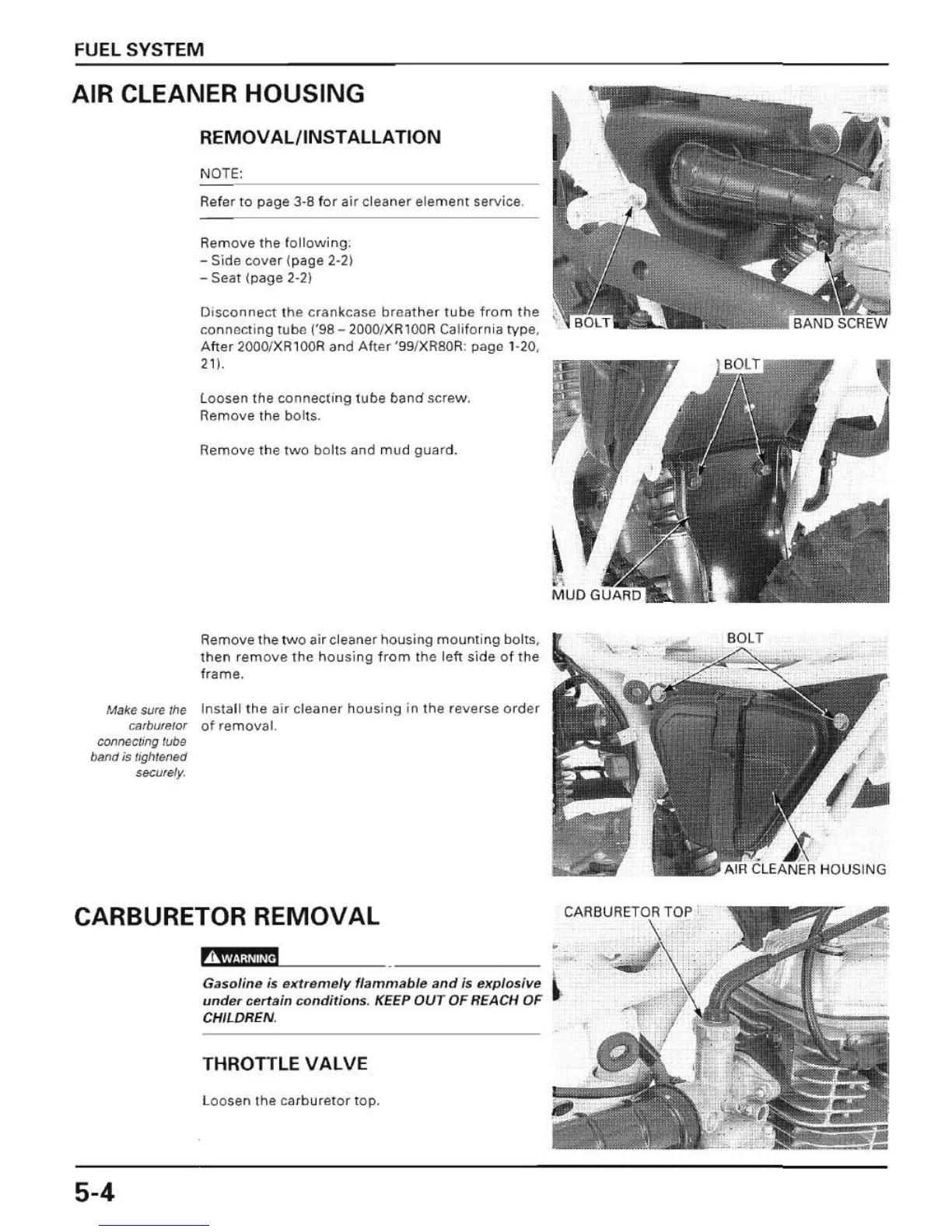

FUEL SYSTEM
AIR CLEANER HOUSING
REMOVAL/ INSTALLATION
NOTE~' ______________________ ___
Refer to page 3·8 for air cleaner el ement service.
R
emove the f ollowing:
- Side co ver (page 2·21
- Seat (page 2·2)
Oi sconne ct the cra.nkcase hrcather tube f rom the
connecting tube 1'98 - 2000/ XR 100R Ca l iforn ia type,
After 200OlX R100R and After '99/XR80R: page 1· 20 ,
211.
loosen tile connecting tube band scr ew ,
Remove the bolts.
Remove the two boits and mud gua rd.
Remove
the tw o air cteaner housing mount ing bolts,
then remove the hous i ng fr om the left sine of the
frame.
Make sure Ille I nstall the air cleaner h ous ing in the reverse order
carbu,era, of removal.
COOfleCI W; lube
baM is righrened
securely.
CARBURETOR REMOVAL
5-4
ti£?Wiiiih
Gasoline is extremel y flammabl e and is explo~i",e
under certain c onditions . KEEP OUT OF REACH OF
CHILDREN.
THROTILE VALVE
l oosen the ca rbur etor lOp.
B OLT
t
I
/Jtj
