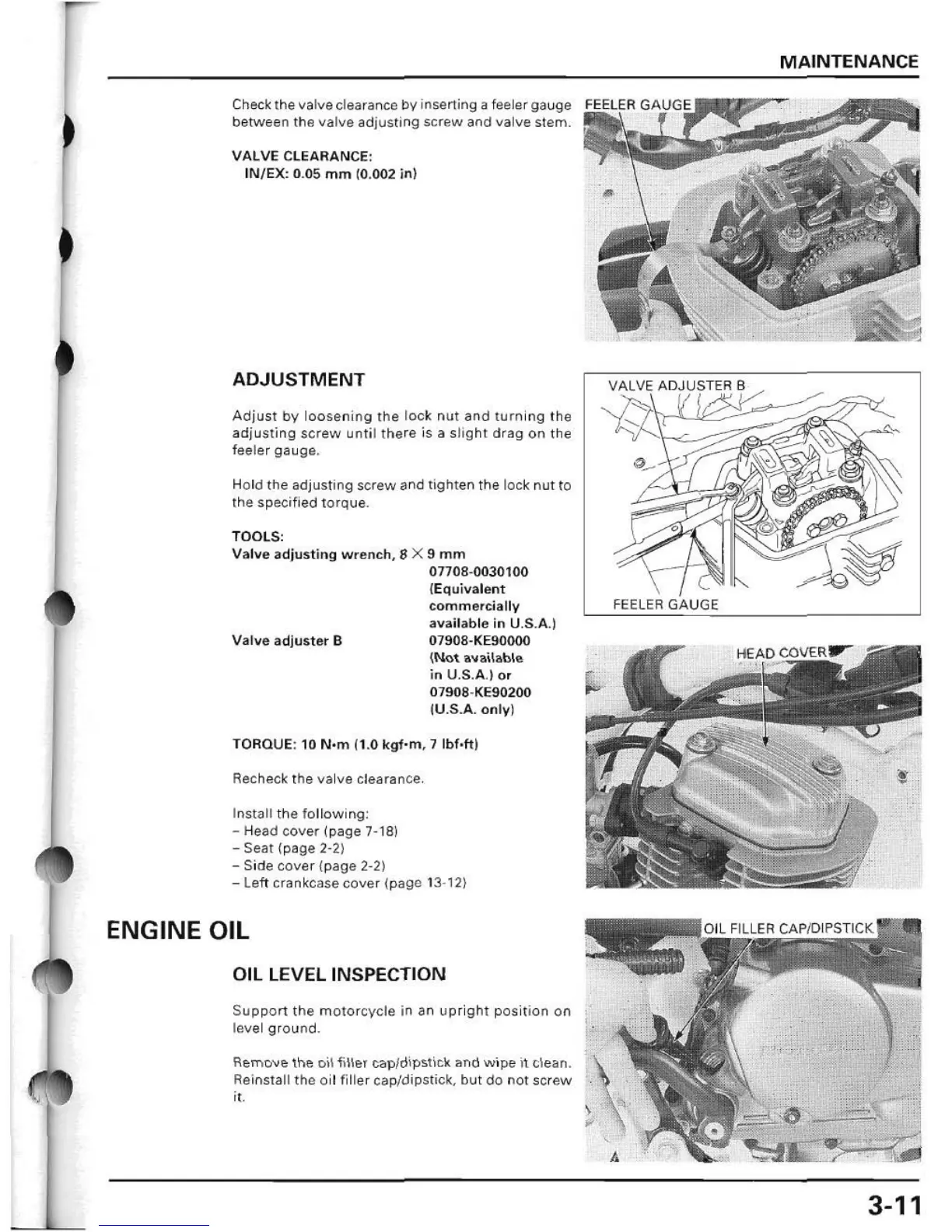

Check the lIallle clearancc by insening a feeler gauge
betwee n the lIallle adjusting screw and lIal lle st em .
VALve CLEARANCE:
I N/EX: 0.05 mm (0.002 in)
ADJUSTMENT
Adjust by l oosening the loc k flut and turn ing th e
adjusting screw until there is a slight drag on the
feeler gauge.
HO ld the adjust ing screw <lnd tighten the lock nut to
the spe<:i fied t orque.
TOOLS:
Val ve adjusting wr ~nc h, 8 X 9 mm
07708·00301 00
(E quilla l eflt
co mmereially
Vallie adjuster B
allailable in U.S.A .)
07908· KE9 0000
\ Not 1Ivai lab le
in U.S.A., 0'
07908·KE90200
(U.S.A. ofl
lyl
TORQUE : 10 N· m (1.0 kgf·m , 7 Ibl. h )
Recheck
the lIal lle clearance.
Install th e follow ing:
- Head cover (page 7·181
- Seal (page 2·2)
- Side cover (page 2·2)
-
Left crankcase cOlier (pagc 1 3-121
ENGINE OIL
OIL LEVEL INSPECTION
Suppon the motorcycle in an upr i ghT posi tion on
lellel ground.
R.amo .. e th e oil fillel cap/dipstiCk and wipe it clean.
ReinsTall the oil lill
er cap/dipstick, but do not screw
it.
MAINTENANCE
VALVE AD JUS TER B
FEELER GAUGE
3-11
