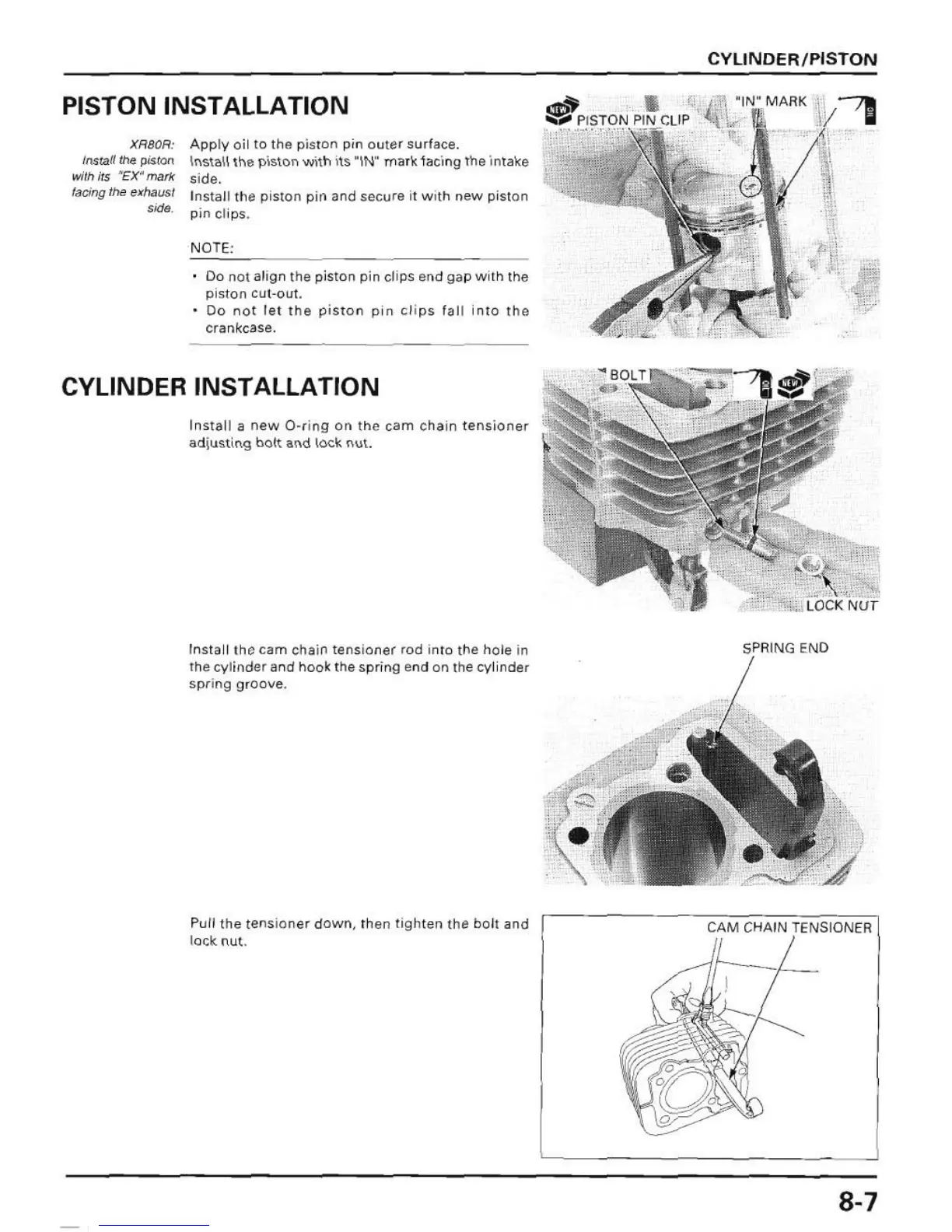

PISTON INSTALLATION
XR80R :
l'maN trn: pisfon
w/1Jl il5 "EX ·m.1 rk
lacing I ~ exhaust
sic/9.
App ly oi l to the piston pin outer sur/ace.
In sta ll I he piston witl1 i ts "I N" mal\{ 1ac'mg The in take
side.
I nstaJil he pi ston pin and secure it w i th neW piston
pin clips.
NOTE:
Do not al\9 .... the piston pin clips end gap w i th th e
p i ston CuH)lIt.
Do not let the piston pin cli ps tall i nto the
cran kcase.
CYLINDER INSTALLATION
Install a new O-ring on the cam ch a in tensio n er
ad i us t ing bolt and loc I< nUl.
Install tho cam chaio tensioner rod into the hole in
the cyli nder and hook the spring end on the CYl i nder
sp ring grOOv 8 .
Pu ll the tens ion er down. t hen tighten the bOlt and
lock nut .
CYLINDER / PISTON
J
y
sP"NGENO
8-7
