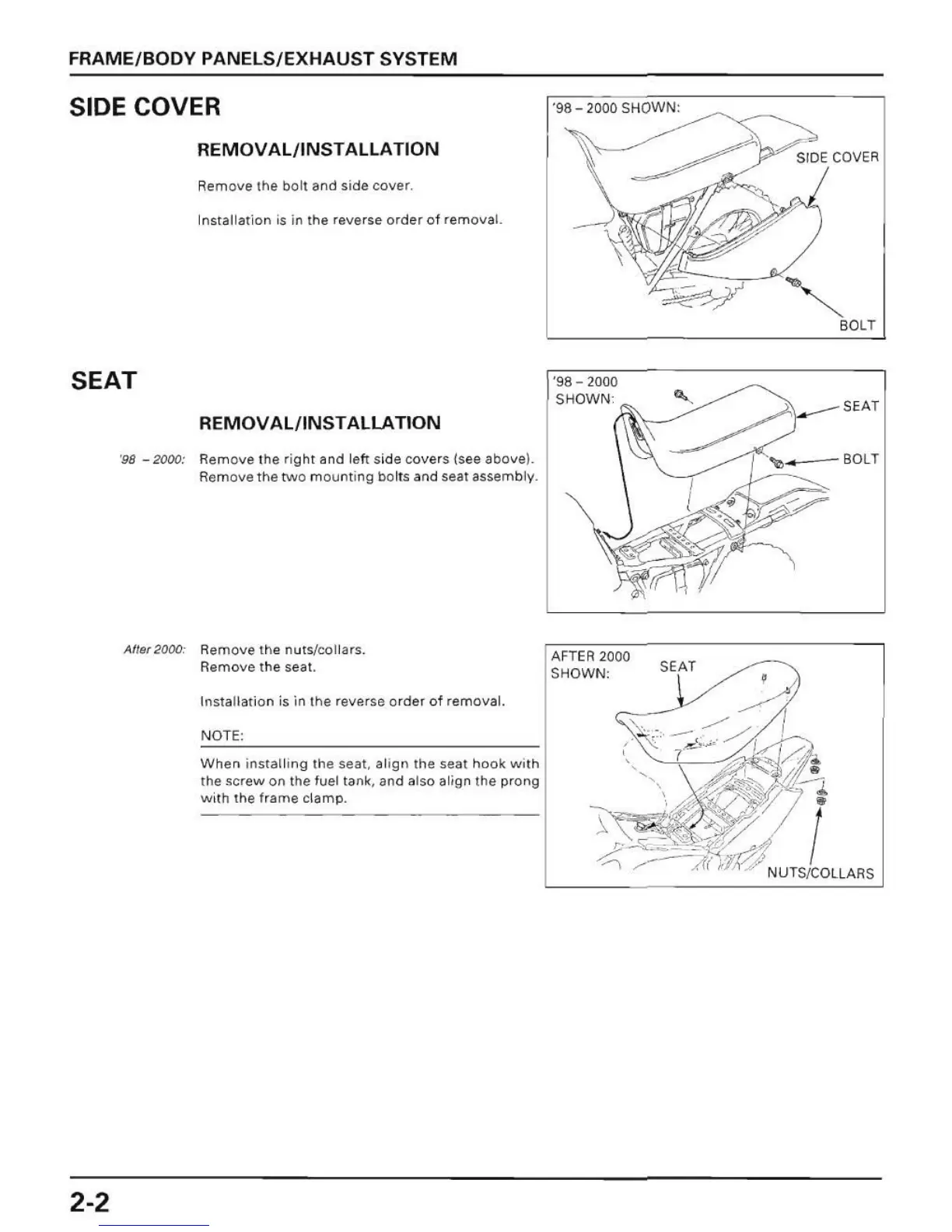

FRAME/BODY
PANElS
/
EXHAUST
SYSTEM
SIDE COVER
'98
- 2000 SHOWN:
~
~~
-~
REMOVAL/ INSTALLATION
COVER
Remove the
bolt
and side
cover.
Install
ation
is
in
the reverse
order
of
removal.
T
SEAT 0;'9""-_
'''0'''00,--
-------
---,
SHOWN
~
2-2
REMOVAL/ INSTALLATION
'98
-2000:
Remove
the
r
ight
and
left
side
covers
lsee above).
Remove
the
cwo
mounting
boi
lS and seat
assemblv
Alter
2000
:
Remove
Ihe
nuts/collars.
Remove
the
seat.
Installation
is
in
the
reVf!rse
order
of
removal.
NOTE:
When
installing
the
Seal,
align
the
seal
hook
with
the
screw
on
the fuel tank, and also al
ign
the
prong
with
Ihe
frame
clamp.
AFTER 2000
SHOWN:
SEAT
SEAT
_
__
BOLT
