HP MSR SERIES User Manual

150

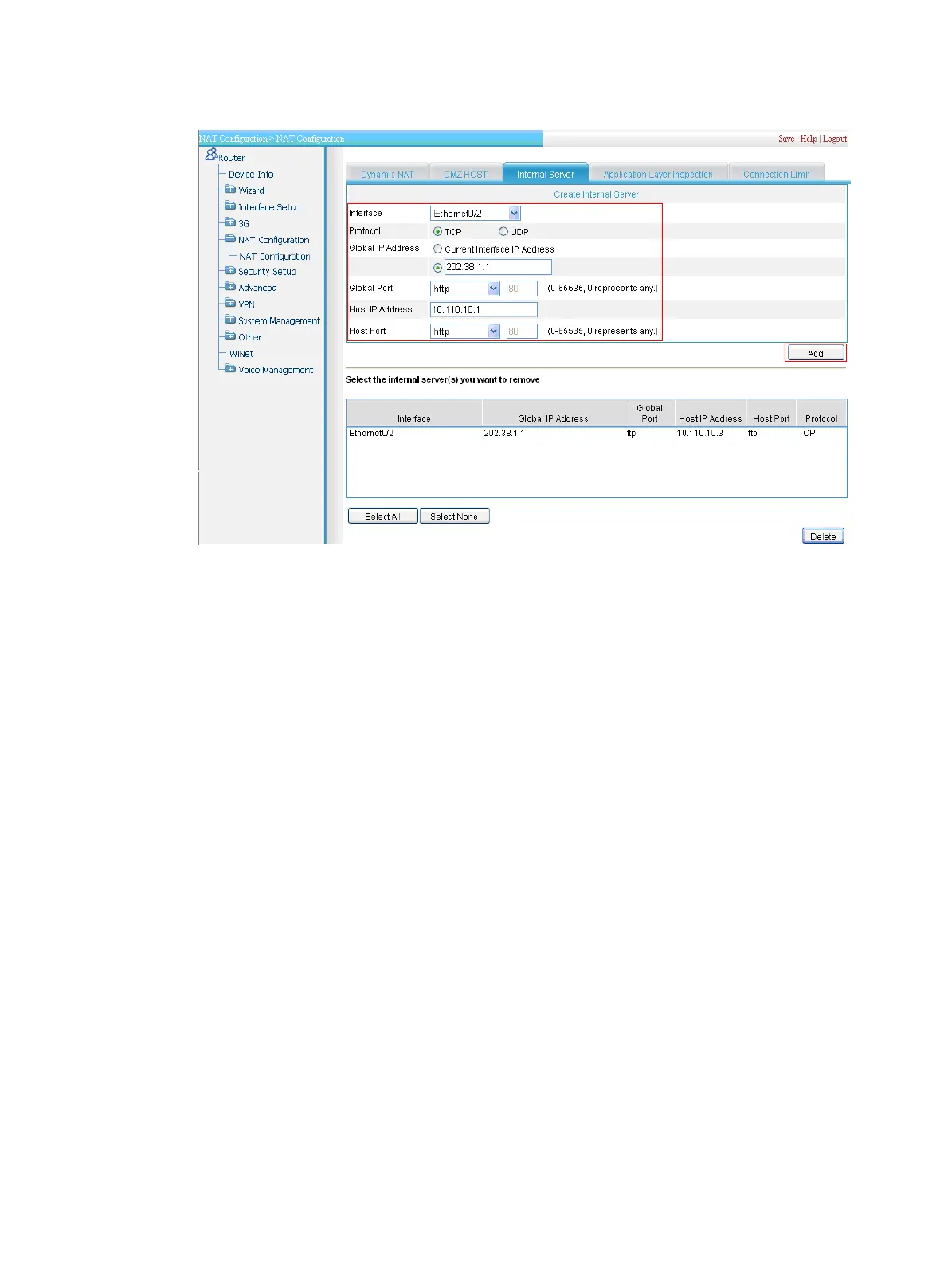

Figure 151 Configuring Web server 1
3. Configure Web server 2:
a. Click Add in the internal server configuration page.
b. As shown in Figure 152, selec
t Ethernet0/2 from the Interface list.
c. Select the TCP option in the Protocol field.
d. Select the option next to the field in the Global IP Address filed, and then enter 202.38.1.1.
e. Enter 8080 in the Global Port field.
f. Enter 10.110.10.2 in the Host IP Address field.
g. Enter 8080 in the Host Port field.
h. Click Apply.

HP MSR SERIES Specifications

General

Brand	HP
Model	MSR SERIES
Category	Network Router
Language	English
