QoS configuration examples
Subnet limit configuration example
Network requirements
As shown in Figure 244, limit the rate of packets leaving Ethernet 1/1 of Router.
Perform per-IP rate limiting for traffic sourced from Host A through Host Z, which are on the network
s e g m e n t s 2.1.1.1 t h r o u g h 2.1.1.10 0 , w i t h t h e p e r- I P l i m i t b e i n g 5 k b p s .

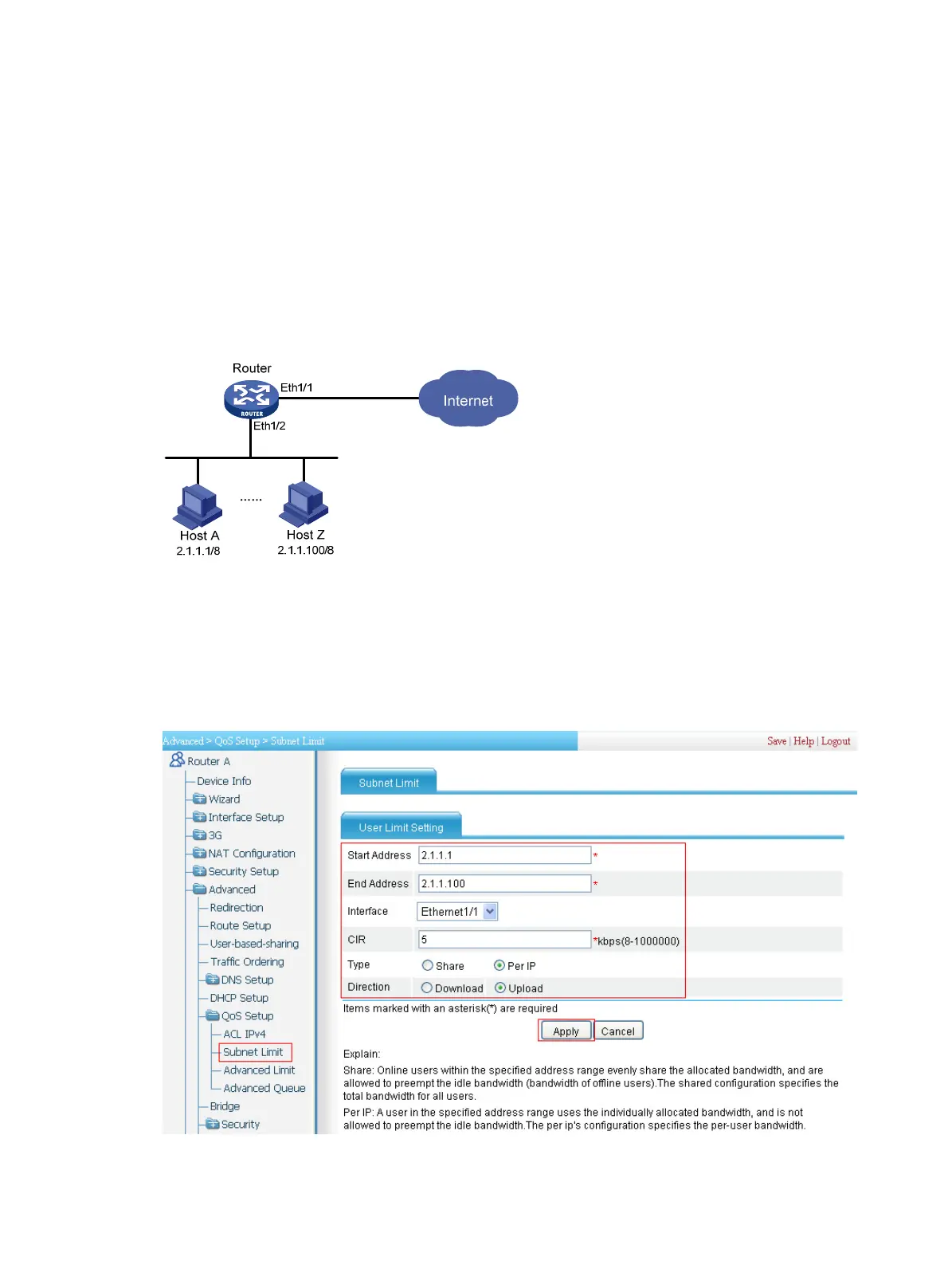

Figure 244 Network diagram
Configuration procedure
# Configure the bandwidth limit settings for the network segment.
1. Select Advance > QoS Setup > Subnet Limit from the navigation tree, and click Add on the
displayed page.
Figure 245 Configuring subnet limit
2. Enter 2.1.1.1 in the Start Address field.
