English 109

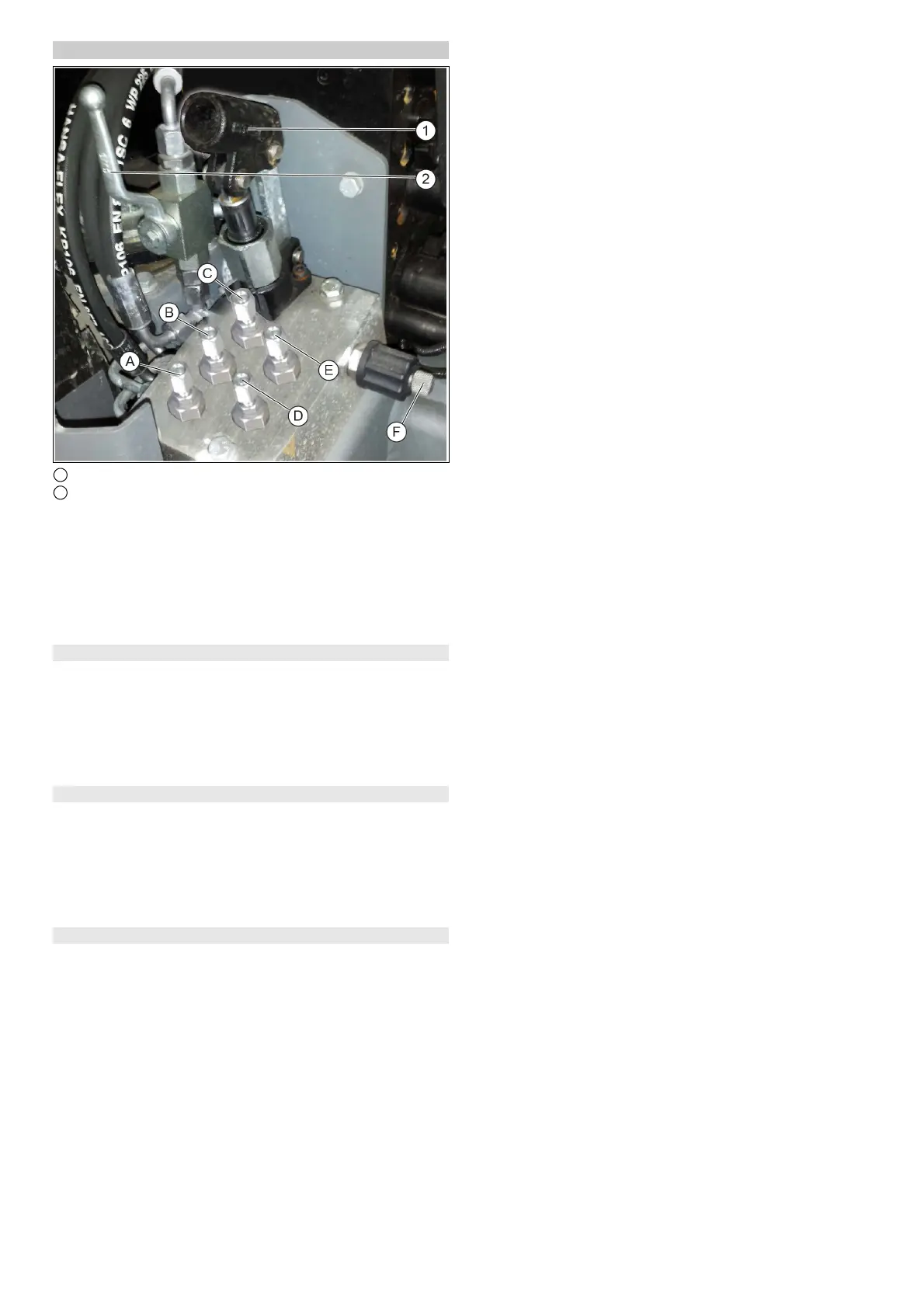

Emergency operation hydraulic valve
1 Manual pump
2 Ball tap - normal operation
(A) - (E) 8mm screws
(F) Knurled screw
1. Remove the cover, then unlock the cover screws (3x) by turn-
ing to the left.
Note
A pipe is required for operating the manual pump and this is lo-
cated at the side behind the driver's seat.
An 8mm ring spanner to actuate the screws is included.
Raise the waste container/attachment frame
1. Unscrew the screws (B, E, F).
2. Actuate the manual pump (1).
Waste container/attachment frame raises.
3. Slowly screw in screw (F).
Waste container/attachment frame lowers.
4. Screw in the bolts.
Original position is restored.
Raising the front power lift/suction mouth
1. Unscrew the screws (A, D, F).
2. Actuate the manual pump (1).
Front power lift/suction mouth raises.
3. Slowly screw in screw (F).
Front power lift/suction mouth lowers.
4. Screw in the bolts.
Original position is restored.
Releasing the parking brake spring actuator
1. Move the ball tap (2) to the horizontal position.
2. Unscrew screw (C).
3. Actuate the manual pump (1).
Spring actuator releases.
4. Move the ball tap to the vertical position.
5. Screw in screw (C).
Spring actuator is actuated (original position).
