86 English
* see chapter Technical data
** see operating instructions for attachment
*** Dimension

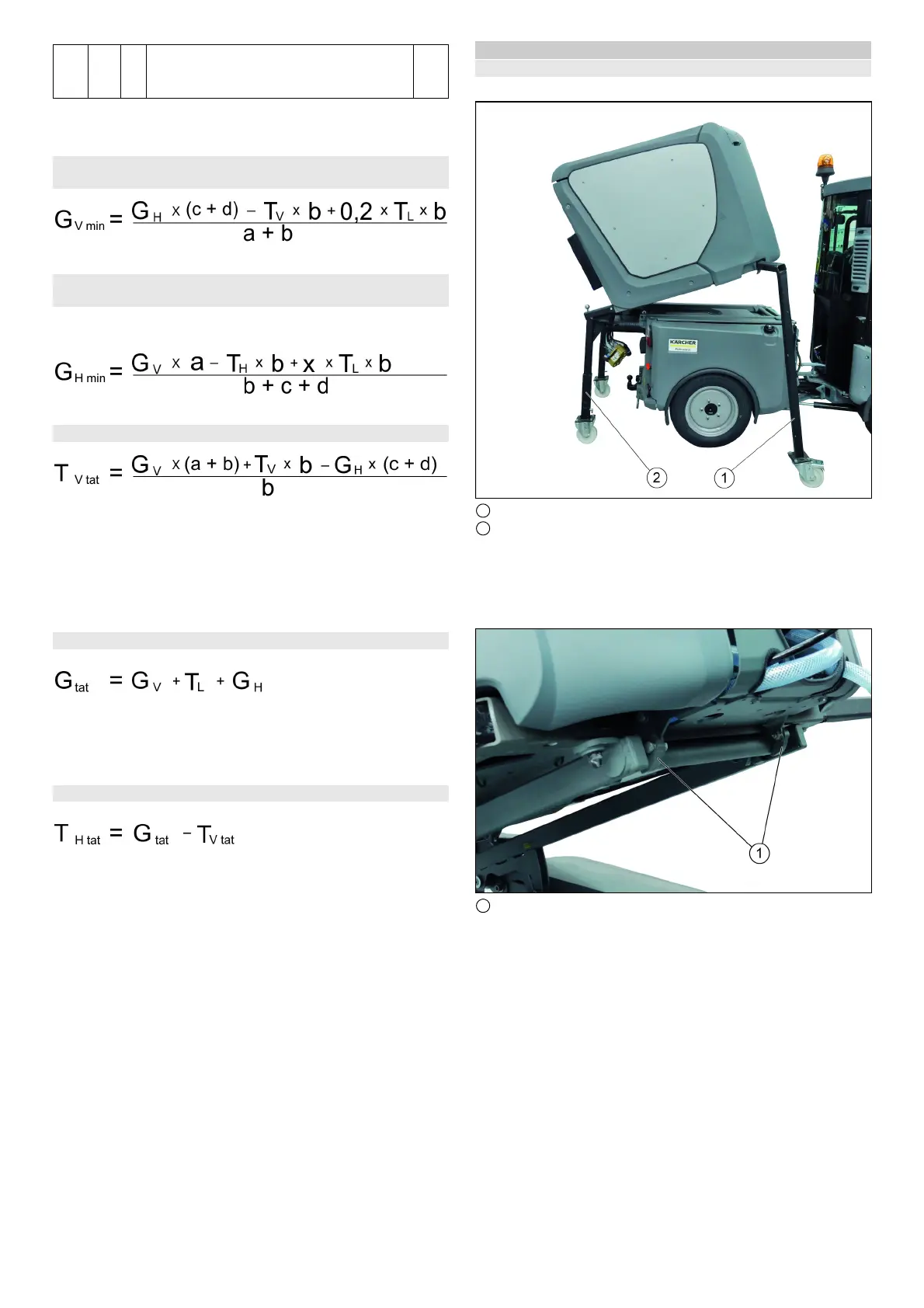

Calculation of the minimum front ballast for rear-mounted
attachments
1. Enter the result into the table.
Calculation of the minimum rear ballast for front-mounted
attachments
See the manufacturer's specifications for the value "x" or use a
value of x = 0.45 if no specifications are available.
1. Enter the result into the table.
Calculation of the actual front axle load
1. If the necessary minimum front ballast weight (GV min) is not
reached with the front attachment (GV) then the weight of the
front attachment must be increased to the minimum front bal-
last weight.
2. Enter the actual calculated permissible front axle load and the
permissible front axle load specified in the work machine op-
erating instructions into the table.
Calculation of the actual total weight
1. If the necessary minimum rear ballast weight (GH min) is not
reached with the rear attachment (GH), then the weight of the
rear attachment must be increased to the minimum rear bal-
last weight.
Calculation of the actual rear axle load
1. Enter the result into the table.
Waste container
Attaching the waste container
Waste container and water reservoir emptied.
1 Front mounting support
2 Rear mounting support
1. Mount the waste container on the installation supports.
2. Drive the rear of the vehicle carefully under the waste contain-
er.
3. Raise the loading platform slowly until under the waste con-
tainer.
1 Hooks
4. Hook the waste container onto the lifting platform using the re-
taining hooks.
5. Continue raising the loading platform until the load on the front
mounting supports is relieved.
6. Remove the front mounting supports.
7. Completely lower the lifting platform with waste container.
8. Remove the rear mounting supports.
d (m) = Distance between the middle of the device-
side attachment and centre of gravity of the
rear attachment/rear ballast
**
***
