98 English

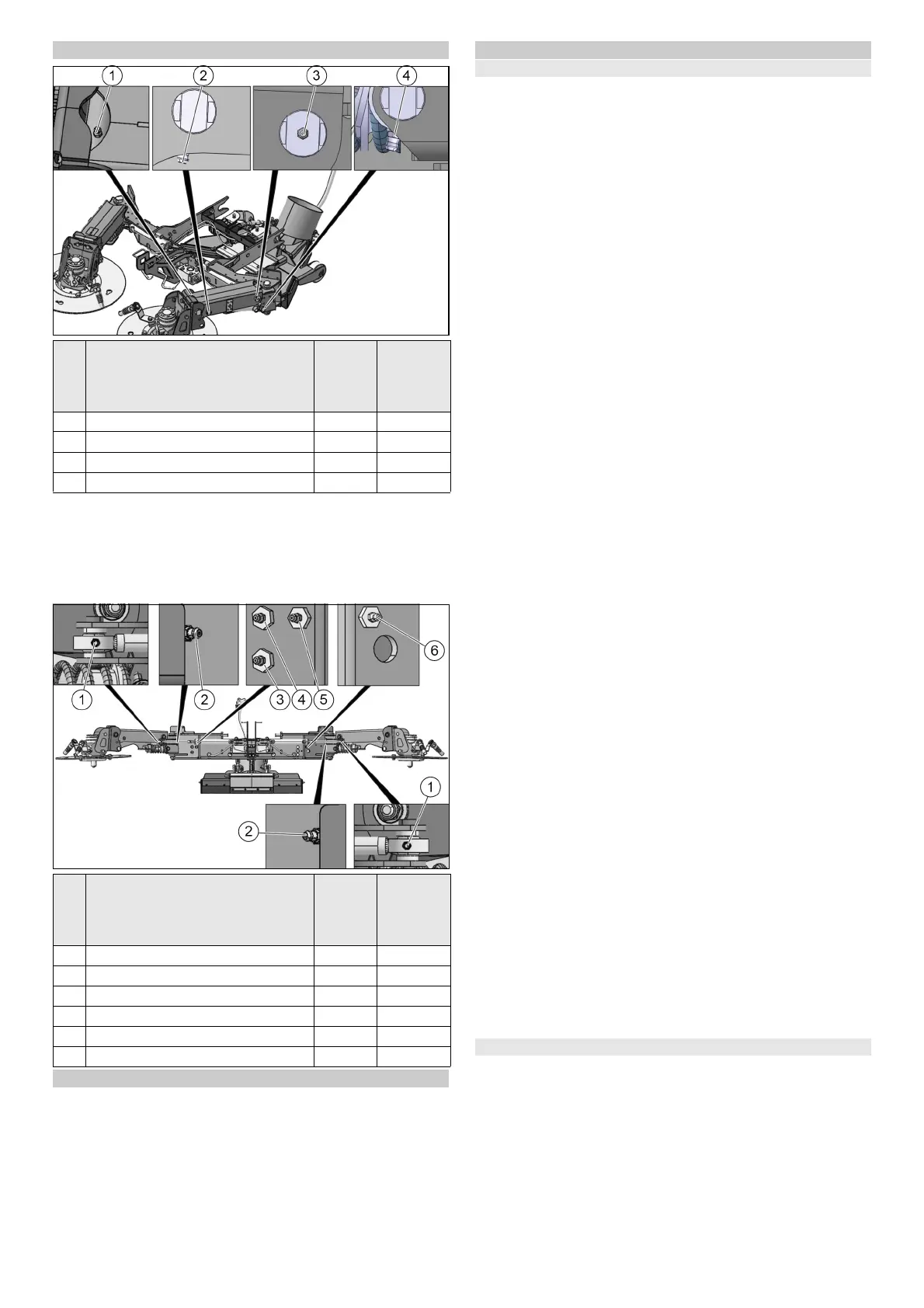

Sweeping system lubrication plan
ATTENTION
Malfunctions
Keep the V-belt clean and free of grease.
1 Use high-grade multi-purpose grease.
2 Lubricate the grease nipples in accordance with the lubricating
intervals (Table) using a grease gun.
Preparing for maintenance work
1. Park the vehicle on a level surface.
2. Switch off the suction fan.
3. Lower the side brushes.
4. Apply the parking brake.
5. Secure the vehicle against rolling away.
6. Switch off the ignition and remove the ignition key.
Maintenance work
General safety instructions
DANGER
Risk of fatal injury from flowing road traffic
Bring the vehicle out of the hazard zone of flowing road traffic be-
fore starting any repair work.
Switch on the warning flashers.
Erect a warning triangle.
Don warning clothing.
몇 WARNING
Risk of injury and damage
Engine continues to run after switch-off.
Wait 5 seconds after switching off the engine.
Be sure to keep away from the working area during this period.
몇 CAUTION
Risk of damage through incorrect cleaning
The articulated joint, tyres, radiator fins, hydraulic hoses and
valves, seals, electrical and electronic components must not be
cleaned using a high-pressure cleaner.
Observe the respective safety regulations when cleaning the ve-
hicle with a high-pressure cleaner.
Do not use aggressive cleaning agents.
Wash the vehicle only when the engine is switched off to protect
the air filter.
몇 WARNING
Risk of injury and damage
The vehicle may start up unexpectedly.
Always remove the ignition key and disconnect the battery before
performing any maintenance or cleaning work.
몇 WARNING
Risk of injury and damage
Maintenance work on the hydraulic system may only be per-
formed by specially trained personnel.
몇 CAUTION
Risk of injury and damage
Always secure the tipping mechanism.
DANGER
Danger of injury
Fully tip the waste container and lower the brush system/attach-
ment unit to relieve the hydraulic system of pressure during all
maintenance work.
The waste container can pivot to the rear. Always completely low-
er the waste container to the end position before performing work
underneath the waste container.
The waste container can lower unintentionally. Perform work on
the turbine only when the waste container is fully raised.
몇 CAUTION
Danger of burns
Allow the vehicle to cool down sufficiently.
Do not touch any hot components of the hydraulic system, hydro-
static drive motor, internal combustion engine or the exhaust sys-
tem.
ATTENTION
Environmental pollution
Do not allow fluids such as engine oil, hydraulic oil, brake fluid,
diesel or coolants to flow into the ground. Please protect the en-
vironment and dispose of liquids in an environmentally-friendly
manner.
Securing the raised waste container
몇 WARNING
Risk of injury and damage
Always secure the waste container when working with a raised
waste container.
Lubrication point Number
of lubri-
cation
points
Lubrica-
tion inter-
val
1 Brush head lifting arm axle 1 each Every 8 h
2 Cylinder lifting arm axle 1 each Every 8 h
3 Swivel bearing lifting arm axle 1 each Every 8 h
4 Swivel bearing cylinder axle 1 each Every 8 h
Lubrication point Number
of lubri-
cation
points
Lubrica-
tion inter-
val
1 Swivelling cylinder lifting arm axle 1 each Every 8 h
2 Swivel bearing base support axle 1 each Every 8 h
3 Suction mouth cylinder support 1 Every 8 h
4 Suction mouth cylinder basic body 1 Every 8 h
5 Swivelling cylinder base support axle 1 Every 8 h
6 Swivelling cylinder base support axle 1 Every 8 h
