English 69
9 The ECO function switches the complete work program on
PTO, front AUX 1, front AUX 2, rear AUX 3 , rear AUX 1
10 Electrical AUX 2, front

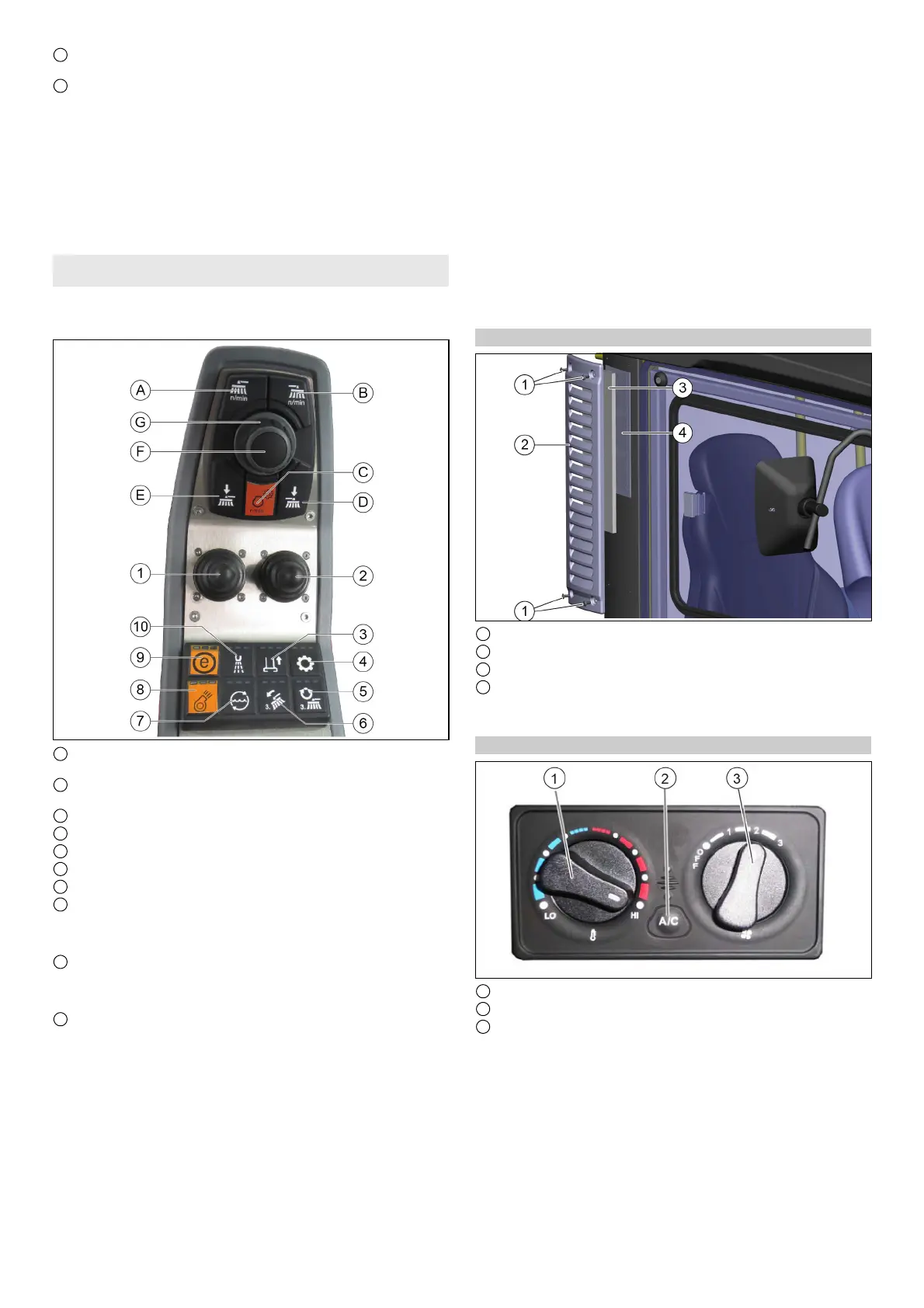

Control assignments for a vacuum sweeper with a 2-brush
system
Note
The indicators in the switches light when the switches are
switched on.
1 Lowering/raising the sweeper system and switching the
brushes on/off
2 Lowering/raising the right side brush and switching the brush-
es on/off (optional)
3 Raise/lower suction mouth
4 Hydraulic system on/off
5 Switching in the 3rd side brush (optional)
6 3rd side brush inclination adjustment (optional)
7 Water circulation function on/off (recycling water)
8 Suction fan on/off
Note
The suction fan has an afterrun time of approx. 15 seconds af-
ter being switched off
9 ECO function
Switches the complete work program on.
PTO (side brushes, suction fan), fresh water, water circulation
(recycling water)
10 Water pump on/off
Interior filter
1 Screws
2 Cover
3 Coarse filter
4 Fine filter of filter class F8 (option)
The fresh air is sucked through a dust filter or fine dust filter at the
side of the driver cabin.
Air recirculation
1 Heating temperature control
2 Air-conditioner controller (option)
3 Air fan controller
The circulation air function ensures that a fogged windscreen
clears more quickly when the air-conditioner or air blower is
switched on. The cab air can also be warmed more quickly. Also
useful in the case of unpleasant outdoor odours.
(A) Front PTO 40 l/min, 80 l/min
(B) Rear PTO 40 l/min
(C) Button for setting the engine speed
(D) Not used
(E) Not used
(F) Press the button to save set values or programs and open
submenus.
(G) Rotary knob for changing values and selecting programs.
(A) Left and right side brush speed button
For individual extraction (option), left side brush speed but-
ton
(B) For individual extraction (option), right side brush speed but-
ton
(C) Engine speed
Press to adjust the values
Note
The suction performance depends on the set engine speed.
1600 rpm light waste
2200 rpm normal soiling
2500 rpm strong, heavy soiling
(D) For individual extraction (option), right side brush contact
pressure button
(E) Left-hand and right-hand side brush contact pressure button
For individual extraction (option), left side brush contact
pressure button
(F) Save button
Press to save adjusted values or programs
(G) Rotary knob
Press to change the adjusted values
