16.Extend the lift truck.

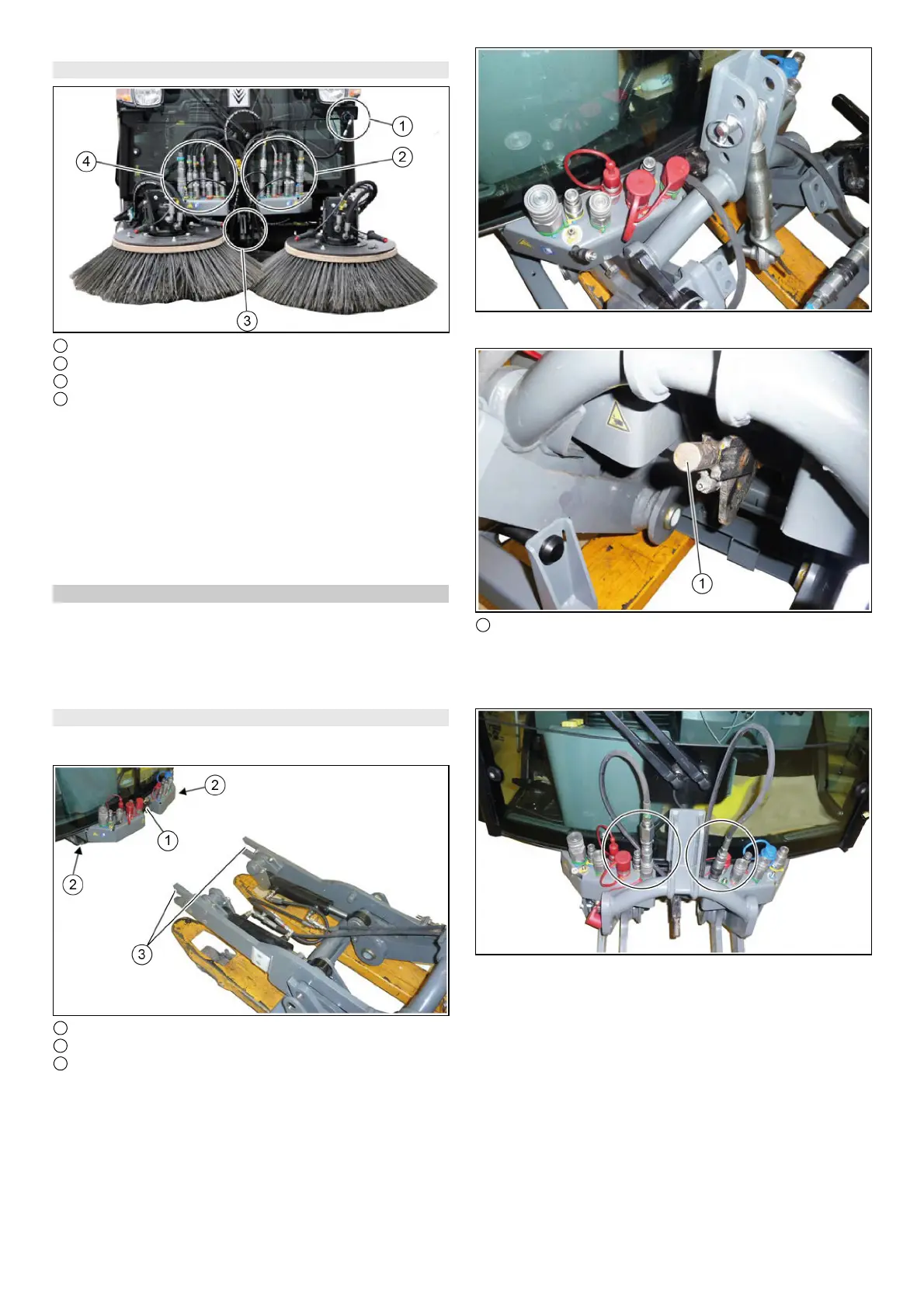

Installing the sweeping system
1 Signal plug for attachment device detection
2 Left side brush connections (hydraulics and water)
3 Sweeping system lock
4 Right side brush connections (hydraulics and water)
1. Stop the vehicle on level, solid ground and secure it against
rolling away.
2. Attach the sweeper system to the vehicle in the reverse se-
quence.
3. Lock the sweeper system (lever down).
4. Check the locking, see chapter Checking adjusting the attach-
ment locking mechanism.
5. Depressurise the hydraulic system. See chapter Depressur-
ise the hydraulic system (pressure relief).
6. Connect the hydraulic hoses to the couplings.
Front power lift (option)
Various different attachment devices can be attached to the front
power lifter using a 3-point mounting.
A changing carriage is required for attaching/removing the front
power lift.
Note
Optional accessory, order no. 2.852-067.0.
Installing the front power lift
1. Stop the vehicle on level, solid ground and secure it against
rolling away.
1 Locking lever
2 Vehicle mounting frame
3 Front power lift mounting
2. Move the locking lever upwards.
3. Use the lift truck to position the front power lift centrally in front
of the vehicle.
4. Insert the front power lift into the mounting frame on the vehi-
cle, all the way to the end stop.
1 Locking lever
5. Move the locking lever downwards.
6. Check the locking, see chapter Checking adjusting the attach-
ment locking mechanism.
7. Lower and retract the lift truck.
8. Depressurise the hydraulic system. See chapter Depressur-
ise the hydraulic system (pressure relief).
9. Connect the hydraulic hoses to the couplings.
