English 65

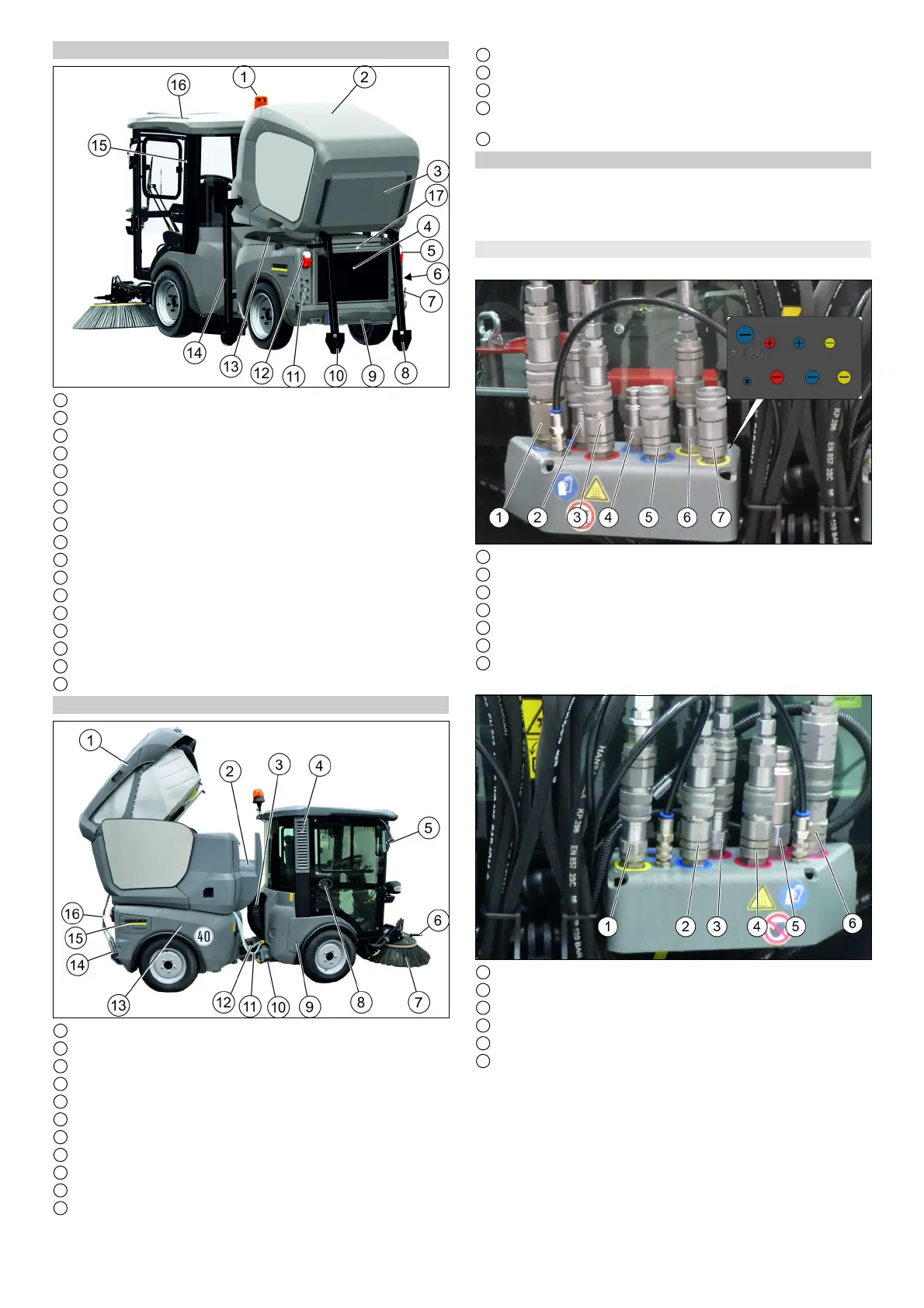

View with waste container on supports
1 Rotating beacon warning lamp
2 Waste container
3 Exhaust gas grille/diffusor
4 Radiator protective grille
5 Tail light/flasher
6 Main switch
7 Right rear PTO hydraulic connection, 40l/min
8 Waste container rear support
9 Trailer coupling (option)
10 Waste container rear support
11 PTO return flow 40l/min
12 Tail light/flasher
13 Attachment frame with tilting function
14 Waste container side supports (2x)
15 Driver cabin dust filter
16 Driver cabin
17 Licence plate bracket
View with raised waste container (driver side)
1 Waste container raised
2 Manual suction hose storage
3 Suction hose
4 Driver cabin dust filter
5 Rear-view mirror
6 Side brush spray nozzle
7 Side brushes
8 Driver cabin, lockable
9 Front side panel cover
10 Transport lock articulated joint
11 Water system
12 Recycling water hose
13 Right-hand side cladding
14 Rear hydraulic connection
15 "Waste container/attachment frame with tipping function"
switch lever cover
16 Hydraulic connection for raising/lowering the waste container
Hydraulic connections
Terminology hydraulic PTO
Power Take Off = hydraulic power output
Terminology AUX
Auxiliary = additional control valve
Front connections (linear hydraulics)
Right-hand side connections
1 PTO return flow
2 Swivel in the side brush
3 Swivel out the side brush
4 Additional function (option)
5 Additional function (option)
6 Leakage oil
7 Additional function (front power lift)
Left-hand side connections
1 Suction mouth/front power lift
2 Raising the right and left brush arms together
3 Swivel in the side brush
4 Swivel out the side brush
5 Hydraulic PTO (80 l/min)
6 Hydraulic PTO (40 l/min)
