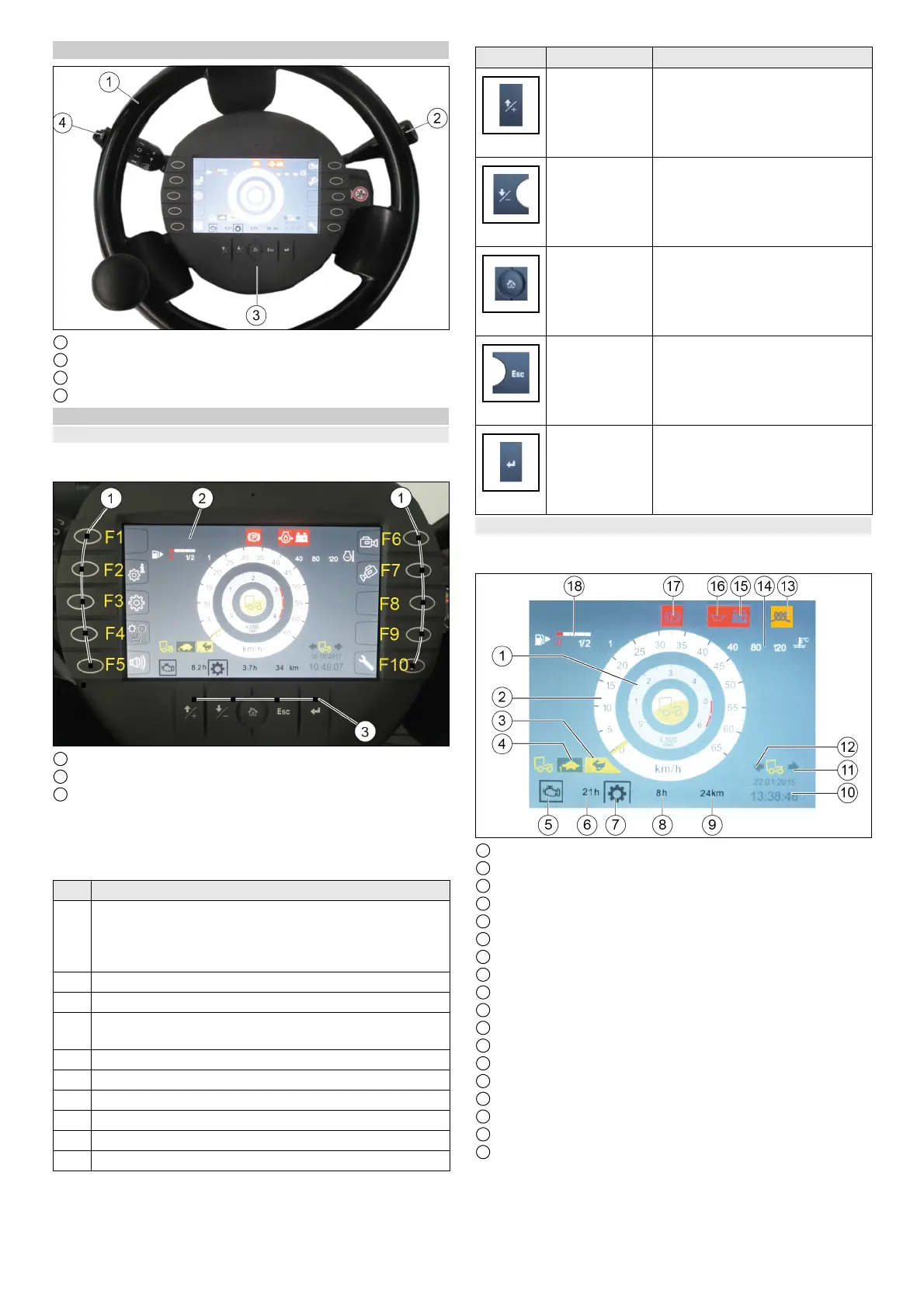

Steering wheel panel
1 Steering wheel
2 Travel direction lever
3 Display with function buttons
4 Multi-function switch
Display
Function buttons/setting buttons
The following indicators are shown on the display after switching
on the ignition.
1 Function buttons
2 Display indicator in start/transport mode
3 Setting buttons
The display changes when the corresponding function button is
pressed. Pressing again or pressing the "Home" button returns
you to the previous display.
The settings button is used for changing the settings.
Display indicators in start/transport mode
The following indicators are shown on the display in start/trans-
port mode.
1 Engine speed
2 Travel speed
3 Hare symbol (Fast mode indicator)
4 Tortoise symbol (Slow mode indicator)
5 Engine operating hours symbol
6 Operating hours counter
7 Working hours symbol (no function)
8 Working hours meter
9 Mileage
10 Date and time
11 Travel direction backwards
12 Forwards direction of travel
13 Preheating coil symbol
14 Engine coolant temperature
15 Battery charging monitor warning light
16 Engine oil pressure warning light
17 Parking brake warning light actuated
18 Fuel level indicator
Function buttons
F1 Information such as the vehicle operating instructions can
be stored here
In working mode: Switch in the high-pressure cleaner (Op-
tion)
F2 Display date and time
F3 Settings
F4 Bridging the seat contact switch, see chapter Operation
with a bridged seat contact switch
F5 Reversing warning buzzer on/off
F6 Reversing camera on/off
F7 Suction mouth camera on/off
F8 Set Tempomat
F9 Resume Tempomat
F10 Service menu
Setting buttons
+ button Jumps one field up when making
settings
- button Jumps one field down when making
settings
"Home" button Navigates to the "Home" screen for
the respective operating mode
(Transport / Work)
Esc button Jumps one step back when making
settings
"Return" button Completes a setting procedure
