68 English

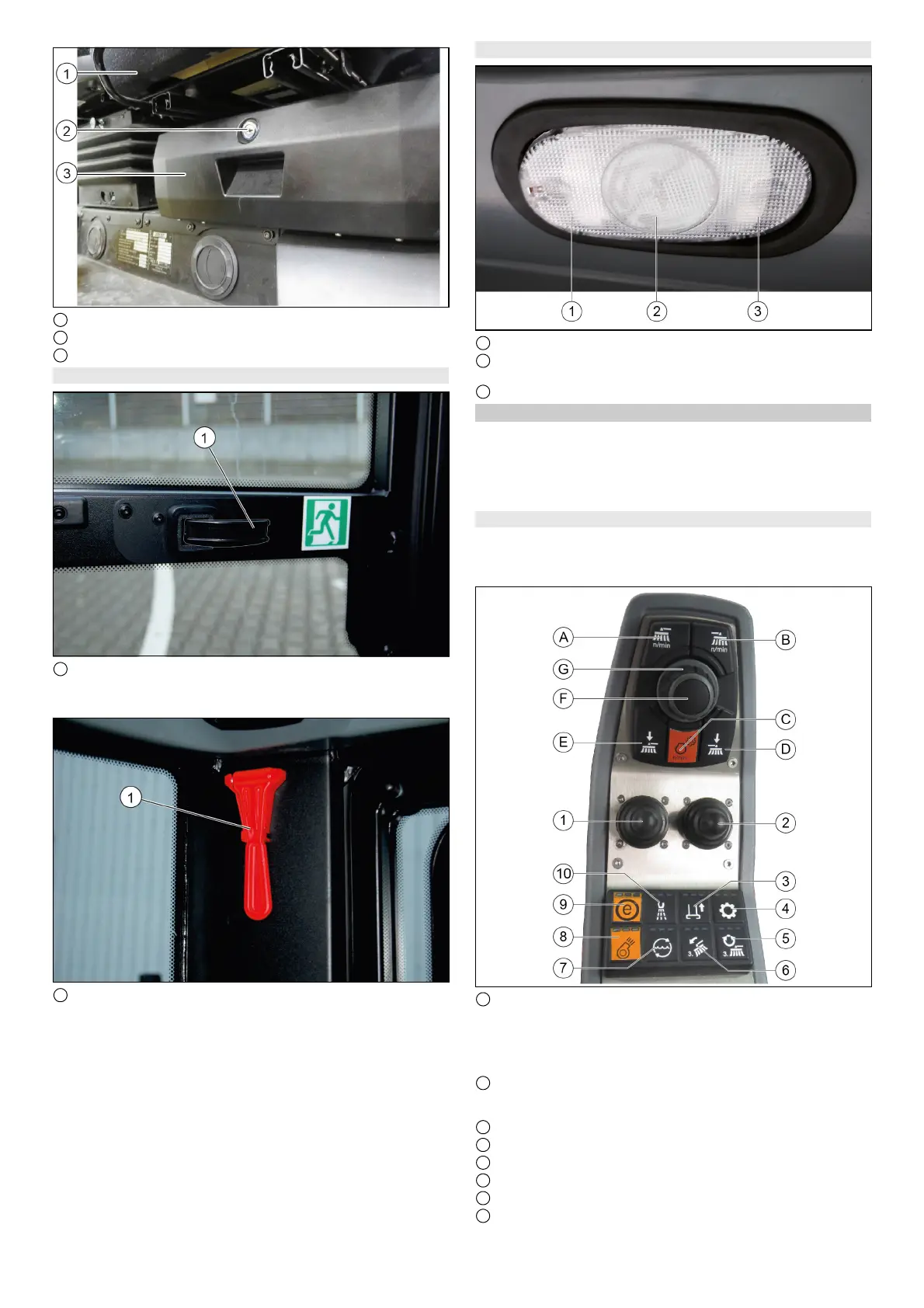

1 Passenger seat
2 Lock
3 Storage compartment
Emergency exit
1 Door handle
The emergency exit is located at the left side in the travel direc-
tion. Open the emergency exit by pulling the door handle.
1 Emergency hammer
The emergency hammer is located at the upper left, behind the
passenger seat. In case of emergency, destroy the windscreen
with the emergency hammer.
Interior lights
1 Pressed down left: Lights switched on
2 Centre position: The light is switched on when a door is
opened
3 Pressed down right: Lights switched off
Arm rest control panel
The control panel is located on the left arm rest of the driver's
seat. The arm rest can be individually adjusted to suit the driver,
see chapter Setting the driver's seat.
For left-hand drive vehicles (optional), e.g. for the UK, the control
panel is located on the right arm rest of the driver's seat.
Device carrier control assignments
Note
The indicators in the switches light when the switches are
switched on.
1 Front power lift joystick
– Raise front power lift and front PTO off (back)
– Lower front power lift and front PTO on (forwards)
– Operate AUX 1 (right/left)
– Switch on front power lift floating position (forwards)
– Switch off front power lift floating position (back)
2 AUX 2 and AUX 3 joystick
– Operate AUX 2 (forwards/back)
– Operate AUX 3 (left)
3 Not used
4 Hydraulic system on/off
5 Electrical AUX 1, front
6 Electrical AUX 2, front
7 Electrical AUX 1, rear
8 Rear PTO 40 l/min
