Lantronix SGX 5150 User Manual

SGX 5150 IoT Device Gateway User Guide 23
TM
3: Installation of the SGX 5150
This chapter describes how to install the SGX 5150 device gateway. It contains the following
sections:
 Package Contents
 User-Supplied Items
 Hardware Components
 Installing the SGX 5150

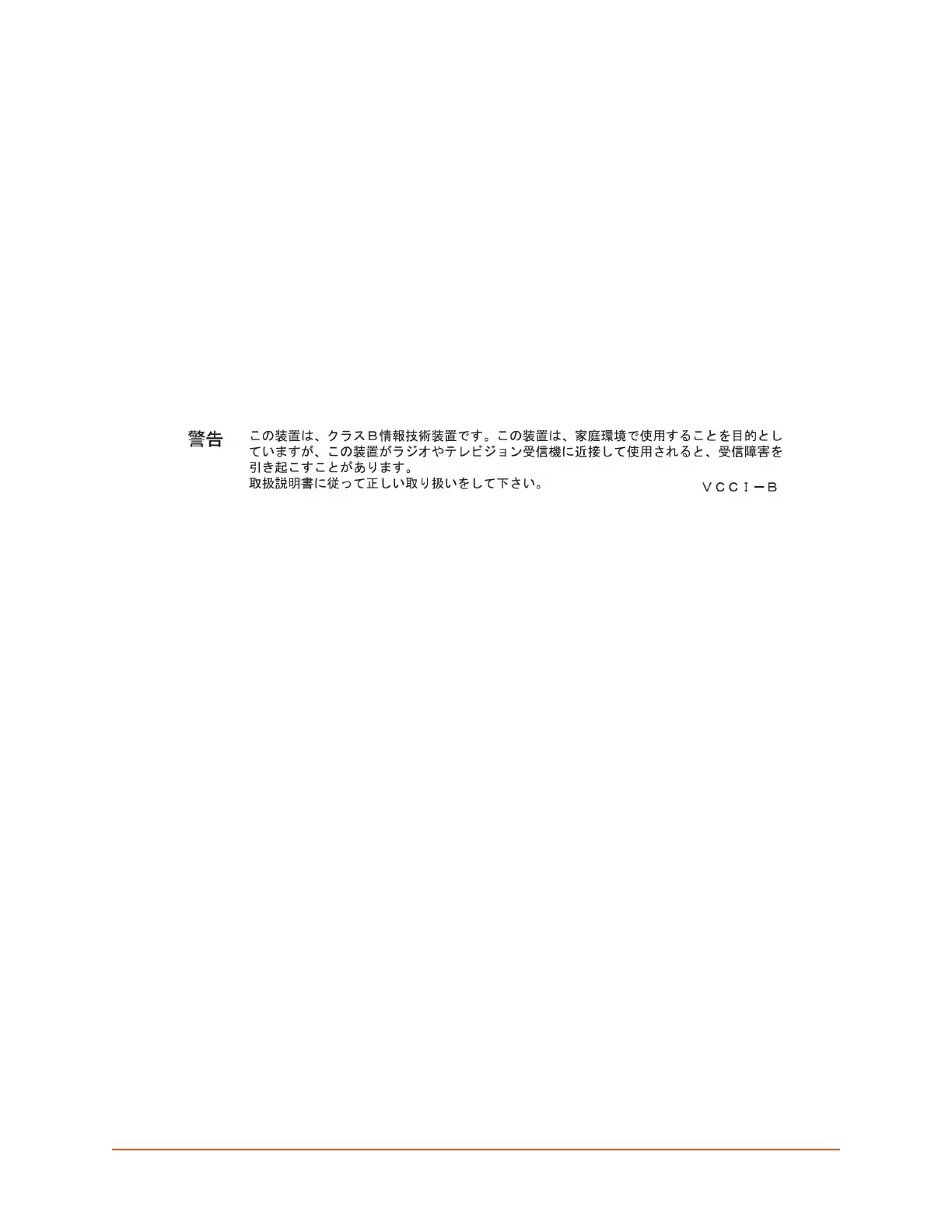

Warning: This is a Class B product based on the standard of the Voluntary
Control Council for Interference from Information Technology
Equipment (VCCI). If this is used near a radio or television receiver in a
domestic environment, it may cause radio interference. Install and use
the equipment according to the instruction manual.
Package Contents
The SGX 5150 package includes the following items:
 SGX 5150 IoT device gateway
 2 external antennas with RP-SMA connectors
 Type A to type C USB cable
Note: This cable is compliant to the specification mandated 56k Ω pull-up.
 SGX 5150 IoT Device Gateway Quick Start Guide
Note: External power supply IS NOT provided with the SGX 5150 gateway.
User-Supplied Items
To complete your installation, you need the following items:
 RS-232/422/485 serial device(s) requiring network connectivity
 A serial cable for each serial device
- A null modem cable to connect the serial port to another DTE device.
- A straight-through modem cable to connect the serial port to a DCE device
 An available connection to your Ethernet network and an Ethernet cable
 Power supply
 5V supply through Type A to Type C USB cable, OR
 Optional 12 VDC (10W, 2.1 mm barrel connector) wall cube power supply (Lantronix part
number 520-154-R or equivalent)

Lantronix SGX 5150 Specifications

General

Certification	FCC ICES-003:2012 RED 2014/53/EU, EMCD 2014/30/EU, EN 300 328 V1.9.1, EN 301 489-1 V1.9.2, EN301 489-17 V2.2.1, EN 301 893 V1.8.1, EN 62311: 2008 AS/NZS CISPR 22, AS/NZS 4268: A1: 2013, AS/NZS 2772.2VCCI EN 55022:2010, EN 55024:2010, EN 61000-3-2:A2 2009, EN 61000-3-3: 2008 UL 60950/CSA 22.2 No. 60950, IEC 60950 CE LVD 2014/35/EU
LED indicators	Yes
Power requirements	9 - 30 VDC
Power over Ethernet (PoE)	No
Power consumption (typical)	1.9 W
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Security algorithms	802.1x RADIUS, AES, EAP-FAST, EAP-PEAP, EAP-TLS, EAP-TTLS, FIPS 140-2, MSCHAPv2, TKIP, WPA, WPA2, WPA2-PSK, WPS
Authentication method	RADIUS
Ethernet LAN (RJ-45) ports	1
Supported protocols	IPv4/IPv6, TCP, UDP, ICMP, ARP, Auto-IP, DNS, (S)FTP
Frequency band	2.4 / 5 GHz
Cabling technology	10/100BASE-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s

Weight and Dimensions

Weight	350 g
Dimensions (WxDxH)	110 x 89 x 26 mm
