11: Connections
SLC™ Console Manager User Guide 158

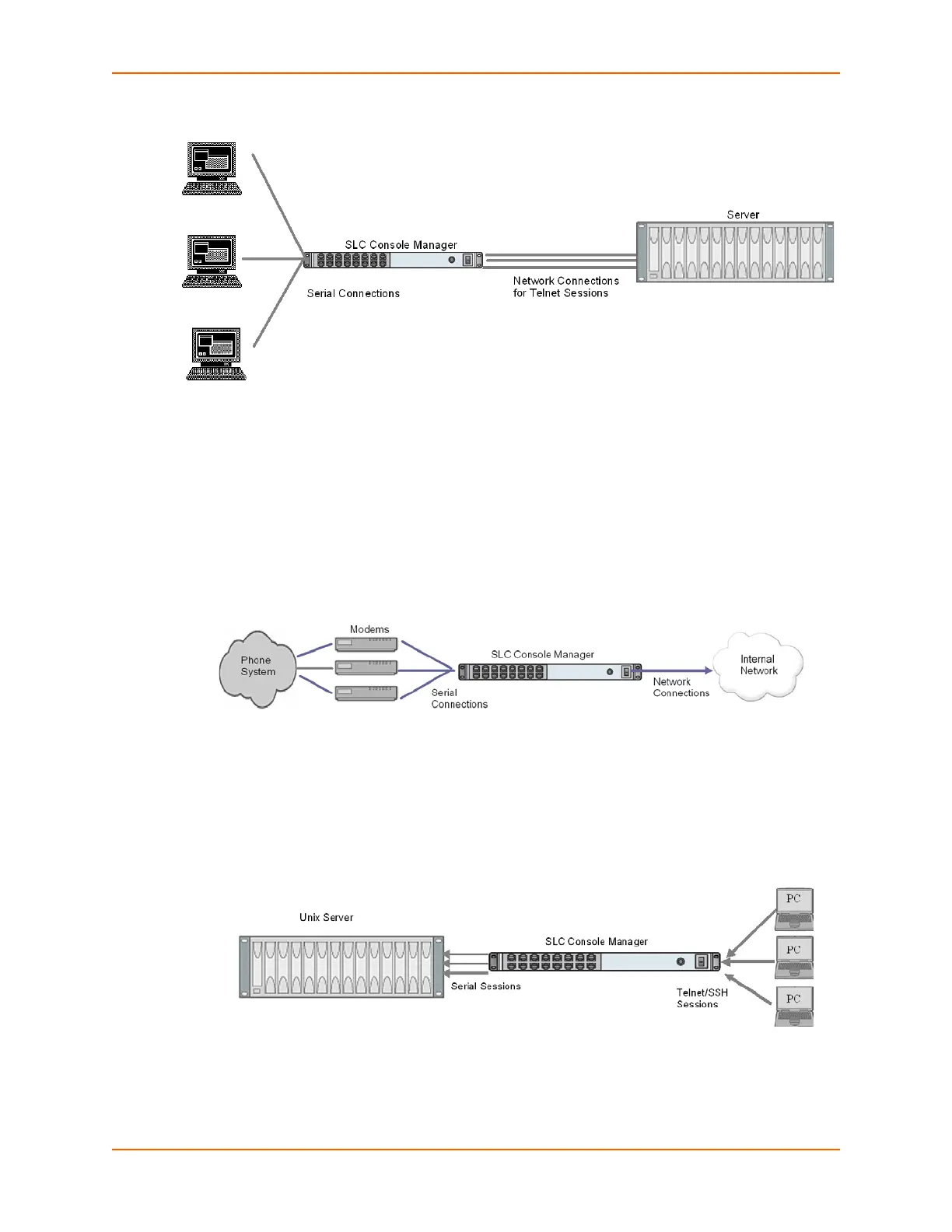

Figure 11-1 Terminal Server
Remote Access Server
In this setup, the SLC console manager is connected to one or more modems by its device ports.
Configure the device ports on the Device Ports > Settings web page by selecting the Dial-in option
in the Modem Settings section.
Most customers use the modems in PPP mode to establish an IP connection to the SLC unit and
either Telnet or SSH into the SLC. They could also select text mode where, using a terminal
emulation program, a user could dial into the SLC unit and connect to the command line interface.
Figure 11-2 Remote Access Server
Reverse Terminal Server
In this scenario, the SLC console manager has one or more device ports connected to one or
more serial ports of a mainframe server. Users can access a terminal session by establishing a
Telnet or SSH session to the SLC device. To configure the SLC unit, select the Enable Telnet In
or Enable SSH In option on the Device Ports > Settings page.
Figure 11-3 Reverse Terminal Server
VT100 Terminals
VT100 Terminals
