Lantronix SLC8 User Manual

2: Overview
SLC™ Console Manager User Guide 27

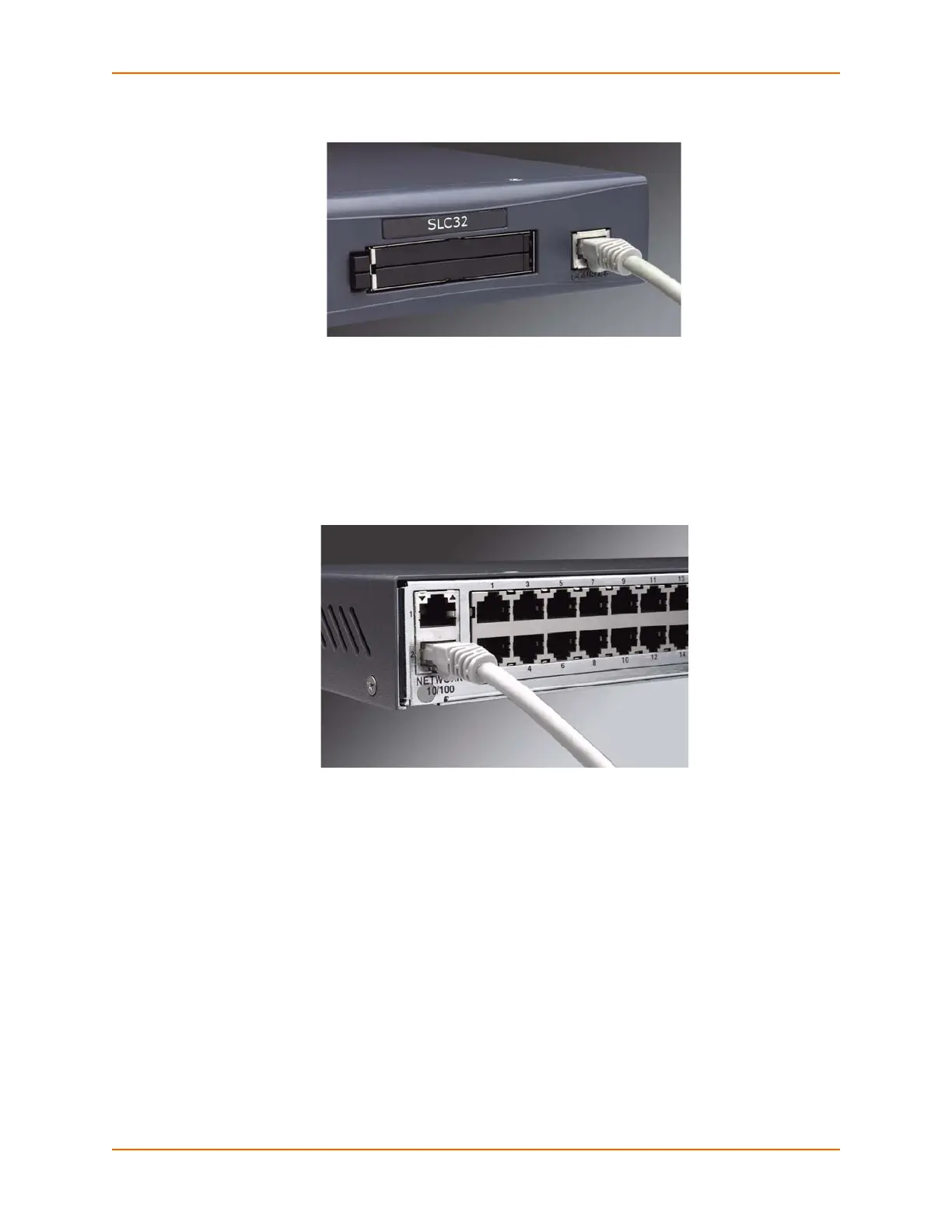

Figure 2-5 Console Port Connection
Network Connections
The SLC network interfaces are 10Base-T/100Base-TX connectors for use with a conventional
Ethernet network as shown in Figure 2-6. Use standard RJ45-terminated Category 5 cables.
Network parameters must be configured before the SLC console manager can be accessed over
the network.
Figure 2-6 Network Connection
PC Card Interface
Note: This PC Card interface is only supported on SLC -02 part numbers.
The SLC console manager has two PC Card slots as shown in Figure 2-7. Lantronix qualifies
cards continuously and publishes a list of qualified cards on the Lantronix web site.
