6: Basic Parameters
SLC™ Console Manager User Guide 65
VPN
This page can be used to create a Virtual Private Network (VPN) tunnel to the SLC console
manager for secure communication between the SLC unit and a remote host or gateway. The SLC
device supports IPSec tunnels using Encapsulated Security Payload (ESP). The SLC console
manager supports host-to-host, net-to-net, host-to-net, and roaming user tunnels.
Note: To allow VPN tunnel access if the SLC firewall is enabled, traffic to UDP ports 500
and 4500 from the remote host should be allowed, as well as protocol ESP from the
remote host.
To complete the VPN page:
1. Click the Network tab and select the VPN option. The following page displays:

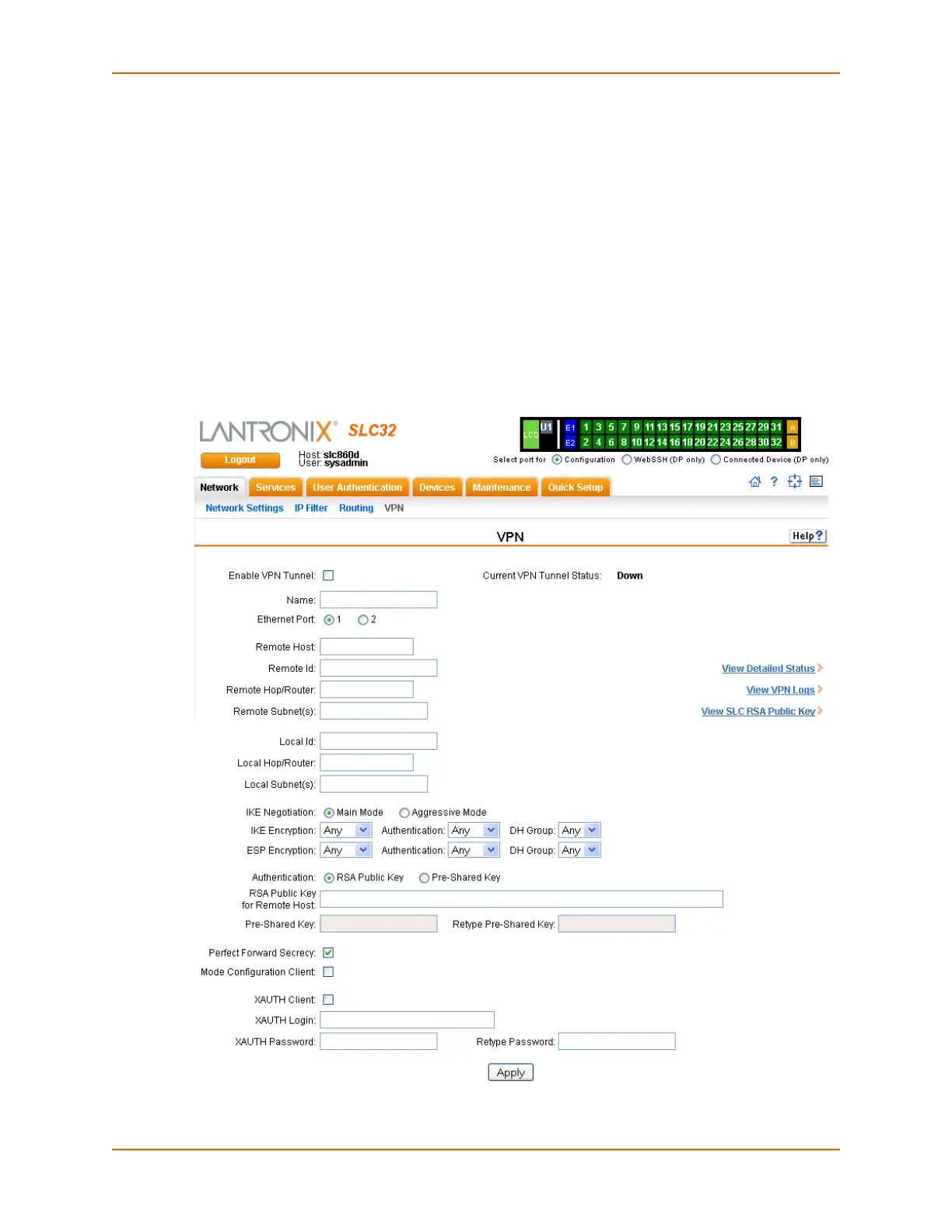

Figure 6-5 Network > VPN
