6: Basic Parameters

SLC™ Console Manager User Guide 53

To enter settings for one or both network ports:

1. Click the Network tab and select the Network Settings option. The following page displays:

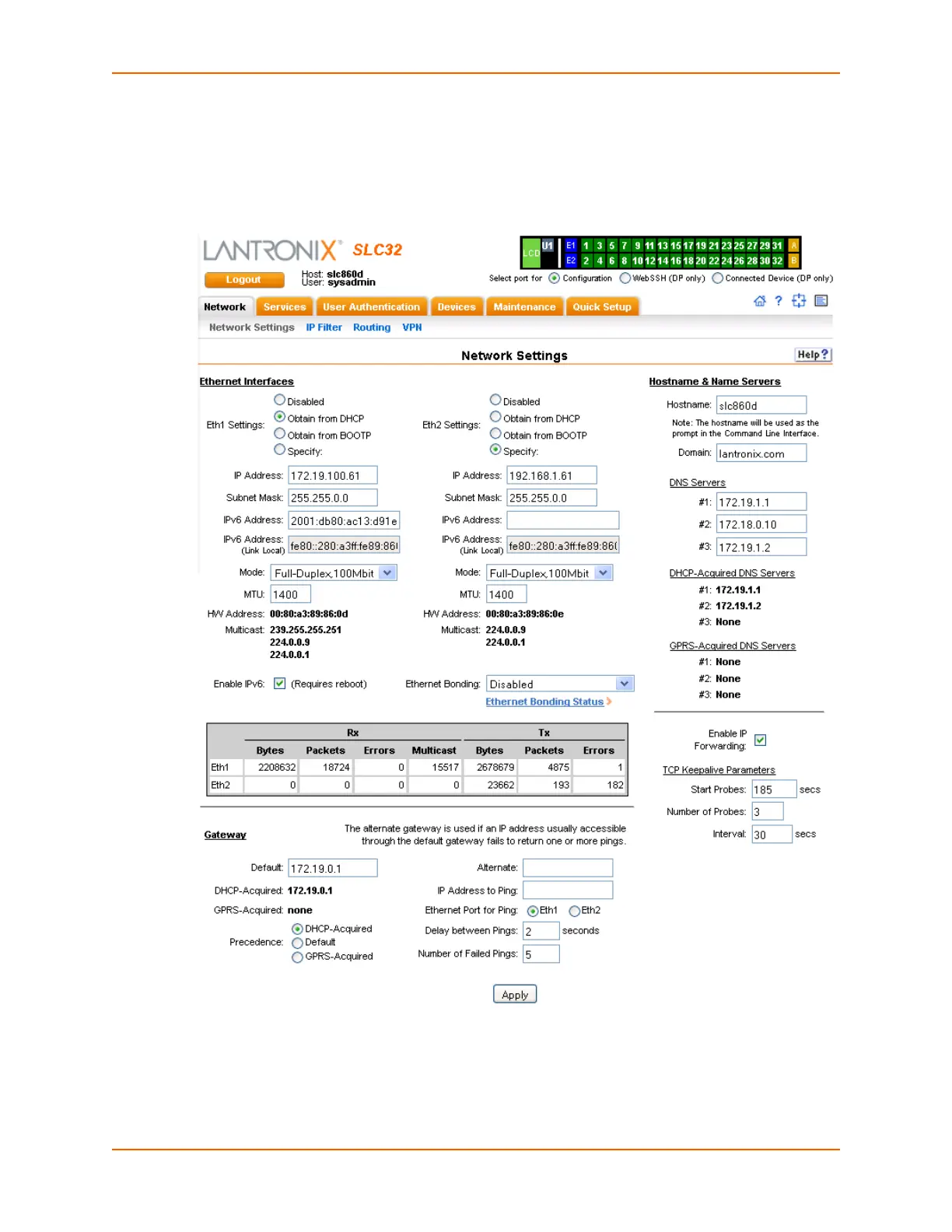

Figure 6-1 Network > Network Settings
