Disconnecting the Shift Cable and Throttle Cable

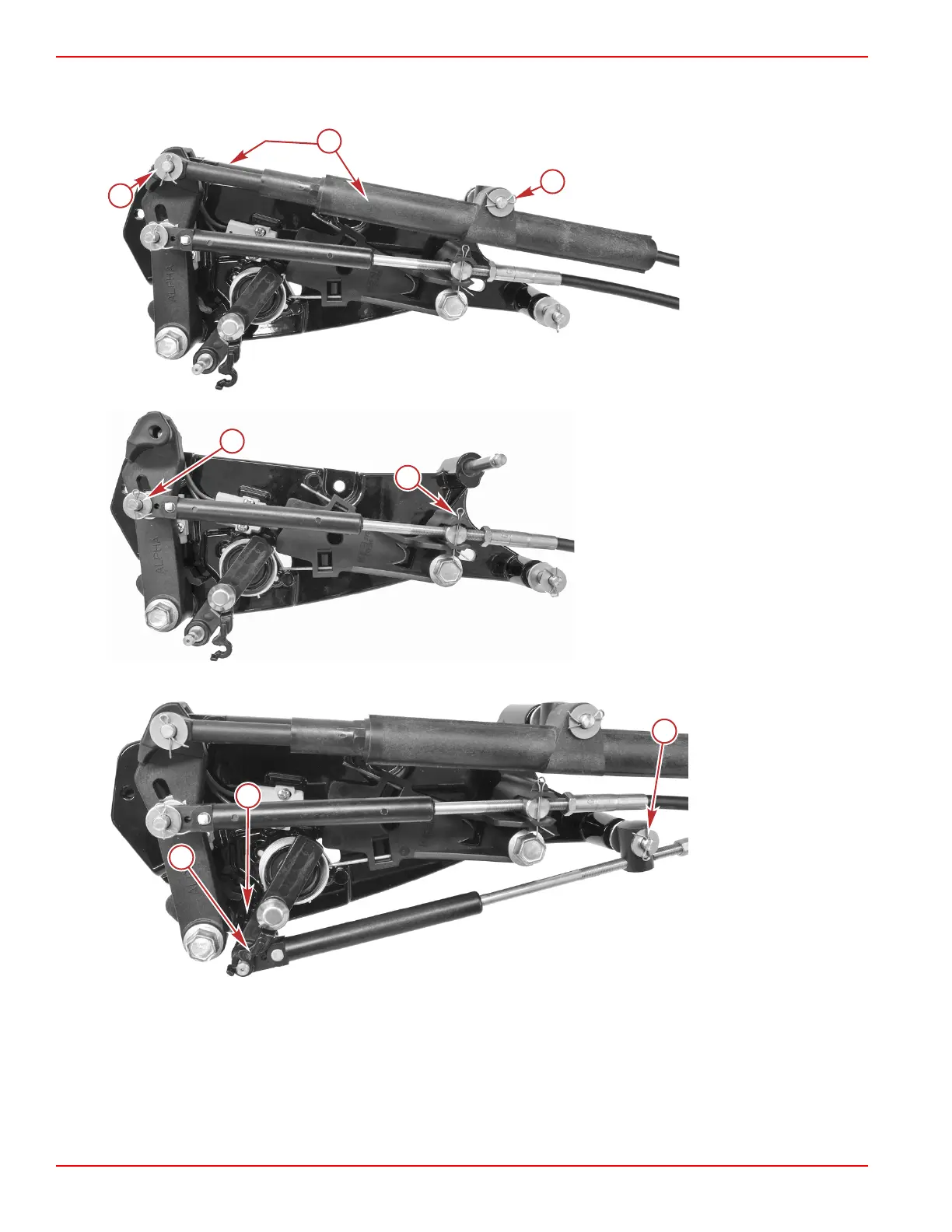

1. Disconnect the remote control shift cable from the shift plate and retain the hardware.

a - Washer and cotter pin

securing clevis pin

b - Remote control shift

cable and shift‑assist

assembly

c - Washer and cotter pin

Without shift-assist assembly

a - Washer and cotter pin

b - Cotter pin

2. Disconnect the intermediate shift cable from the shift plate, and retain the hardware.

Throttle cable

a - Throttle demand

sensor pin clip

b - Throttle stop

c - Washer and cotter

55299

55293

55304
