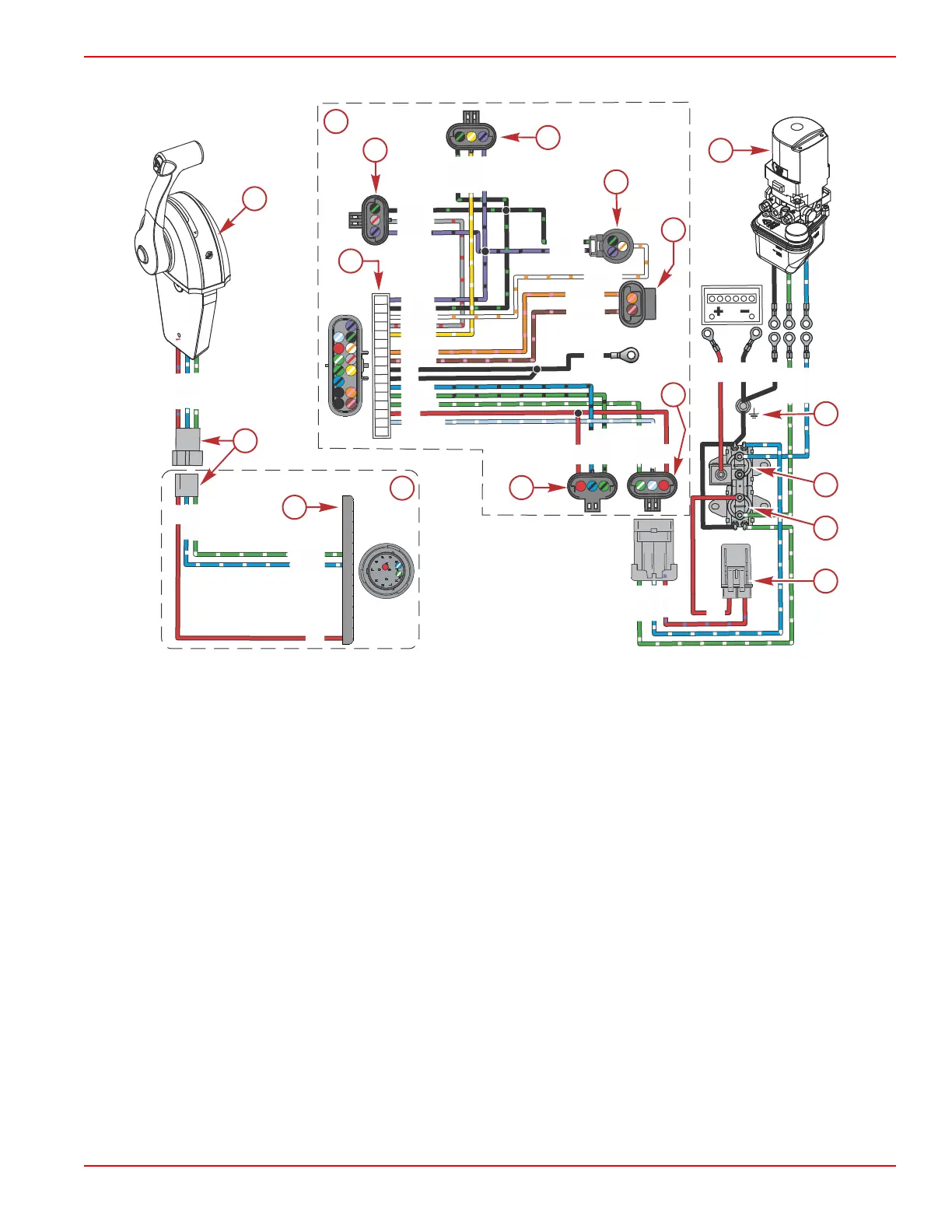

Power Trim System with an Outboard Remote Control

a - Outboard remote control

b - 3‑pin Molex connector

c - 14‑pin connector to engine harness

d - Outboard ignition harness

e - Transom harness

f - 16‑pin connector to engine harness

g - Steering

h - Digital trim

i - Pitot

j - MerCathode

k - Trim pump connection

l - Not used with the outboard remote control

m - Trim pump

n - Ground

o - Up solenoid

p - Down solenoid

q - 20‑amp fuse

RED/PPL

BLU/WHT

GRN/WHT

PPL/BLK

BLK/GRN

WHT/ORN

GRA/RED

YEL/WHT

ORN/PNK

BRN/PNK

BLK

BLU/BLK

GRN/BLK

GRN/WHT

RED

LT BLU/WHT

BLK

BRN/PNK

ORN/PNK

WHT/ORN

BLK/GRN

PPL/BLK

GRA/RED

BLK/GRN

PPL/BLK

YEL/WHT

GRN/BLK

BLU/BLK

RED

LT BLU/WHT

GRN/WHT

BLU/WHT

RED/PPL

RED

GRN/WHT

BLU/WHT

RED

BLK

58241

RED

BLU/WHT

A B C D E F G H J K

L M

N P

A B C

RED

GRN/WHT

BLU/WHT
