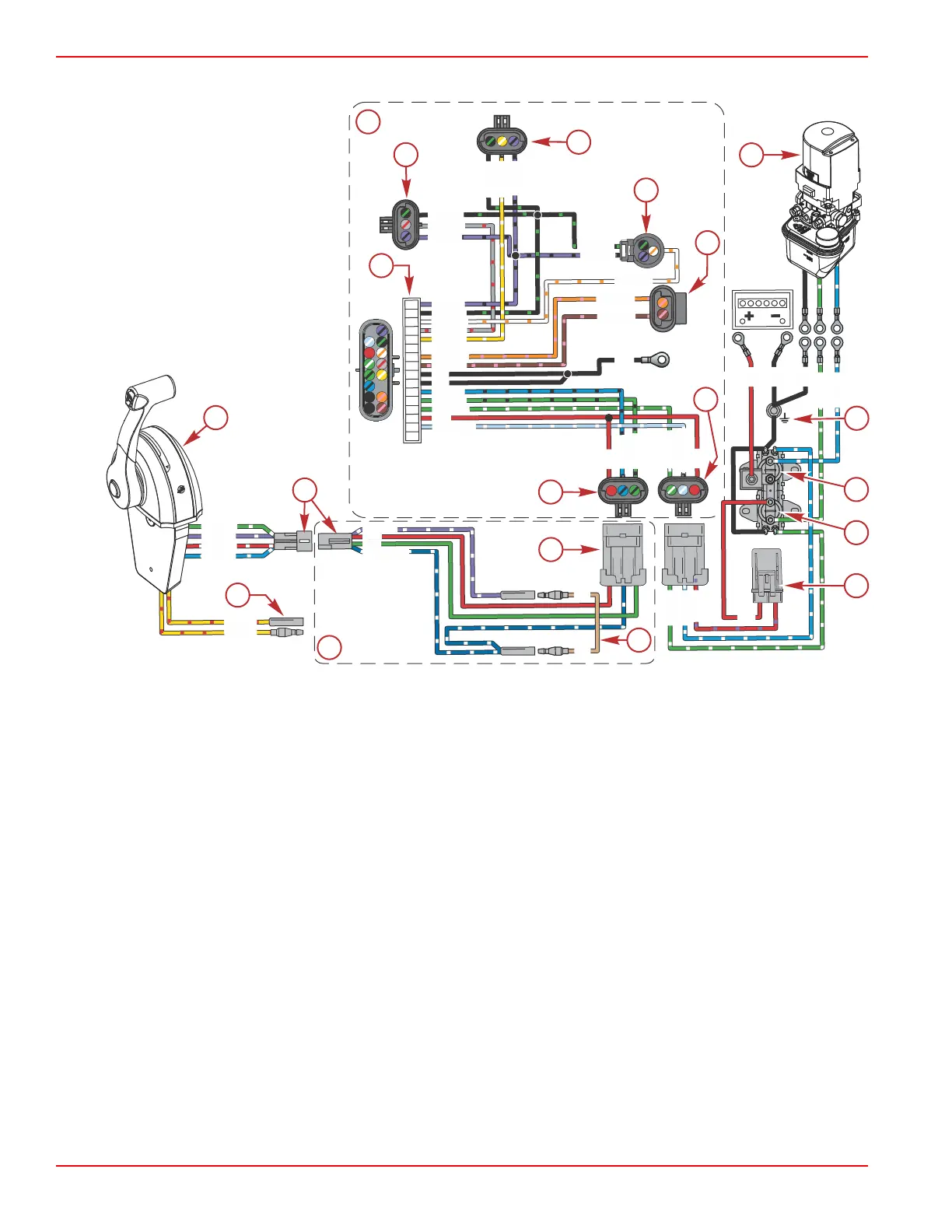

Power Trim System with a MerCruiser Remote Control

a - MerCruiser remote control

b - 4‑pin Molex connector

c - To ignition switch harness

d - 3‑pin connector

e - Power trim extension harness

f - Transom harness

g - 16‑pin connector to engine harness

h - Steering

i - Digital trim

j - Pitot

k - MerCathode

l - Trim pump connection

m - Helm trim switch

n - Trim pump

o - Ground

p - Up solenoid

q - Down solenoid

r - 20‑amp fuse

s - Trim bypass (from transom harness)

YEL/RED

TAN

PPL/BLK

BLK/GRN

WHT/ORN

GRA/RED

YEL/WHT

ORN/PNK

BRN/PNK

BLK

BLU/BLK

GRN/BLK

GRN/WHT

RED

LT BLU/WHT

BLK

BRN/PNK

ORN/PNK

WHT/ORN

BLK/GRN

PPL/BLK

GRA/RED

BLK/GRN

PPL/BLK

YEL/WHT

GRN/BLK

BLU/BLK

RED

LT BLU/WHT

GRN/WHT

RED/WHT

BLU/WHT

PPL/WHT

GRN/WHT

RED

DK BLU/WHT

PPL/WHT

GRN

GRN/WHT

TAN

BLU/WHT

RED/PPL

RED

GRN/WHT

BLU/WHT

RED

BLK

58236
