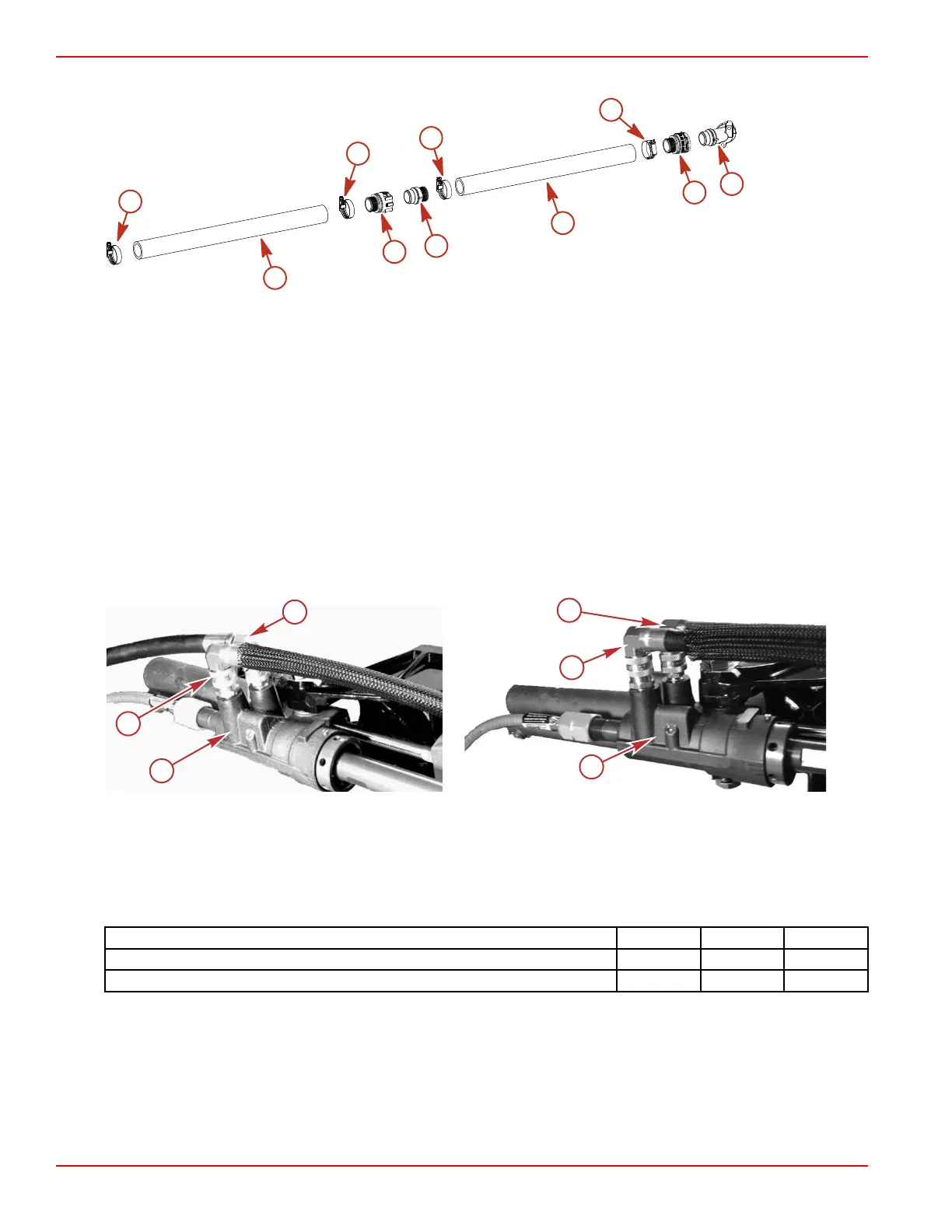

NOTE: The seawater extension hose assembly connects to the transom and the seawater inlet hose.
a - Seawater inlet hose
b - Quick connect fitting to extension hose
c - Quick connect male fitting
d - Extension hose
e - Quick connect fitting to seawater inlet fitting
f - Seawater inlet fitting
g - Hose clamp
Power‑Assisted Steering Hoses
IMPORTANT: Make hydraulic connections as quickly as possible to prevent fluid leaks.
1. Route the hoses to avoid contact with the steering system components.
2. If required, use extra hose clips to secure the hoses to the transom.
3. On models with quick‑connect fittings, connect the power‑assisted steering hoses to the actuator. Ensure that the
quick‑connect fittings snap into place.
a - Power‑assisted steering actuator
b - High‑pressure hydraulic supply hose
c - Low‑pressure hydraulic return hose
4. On models without quick‑connect fittings, connect the power‑assisted steering hoses to the actuator. Tighten both fittings
to the specified torque.
Description
Nm lb‑in. lb‑ft
Low‑pressure hydraulic return hose fitting 34 – 25
High‑pressure hydraulic hose fitting 54 – 40
NOTE: Ensure that the steering fluid level is correct before first operation.
Speedometer and Pitot Connections
Refer to the appropriate sterndrive service manual for details on connecting the speedometer and pitot sensor.
d
a
b
c
e
f
g
g
g
g
8518
Installation
Page 2B-12 © 2016 Mercury Marine 90-8M0099748 eng DECEMBER 2015
