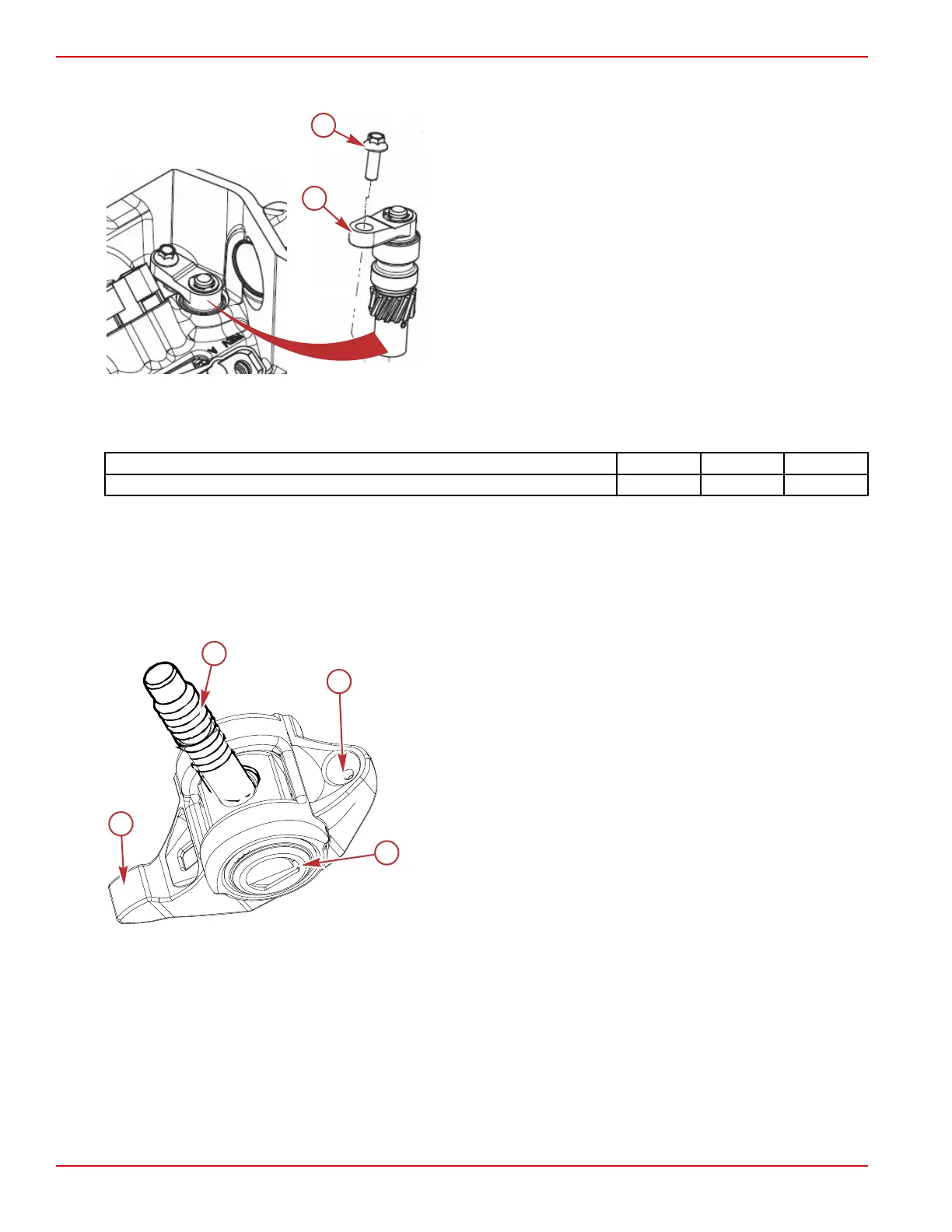

IMPORTANT: The oil pump drive is not properly installed if it is not resting on the engine block and engaged with the

camshaft and intermediate shaft.

a - Flange screw

b - Oil pump drive

2. Ensure that the mechanism is resting on the engine block as shown.

3. Install the flange screw. Tighten the screw to the specified torque.

Description

Nm lb‑in. lb‑ft

Oil pump drive flange screw 30 – 22.1

Rocker Arms and Pushrods

Inspection

1. Inspect all contact surfaces for excessive wear or scoring.

2. Inspect threads for damage.

3. Inspect pivot points for binding or damage.

a - Contact surfaces

b - Threads

c - Pivot points

56464

55138

Engine Inspection and Assembly
