Return Hose (Pump Reservoir to Fluid Cooler)
Removal
NOTICE
Discharge of oil, coolant, or other engine/drive fluids into the environment is restricted by law. Use caution not to spill oil,
coolant, or other fluids into the environment when using or servicing your boat. Be aware of the local restrictions governing
the disposal or recycling of waste, and contain and dispose of fluids as required.
NOTE: Use a suitable container to catch the fluid that drains from the pump and hoses.

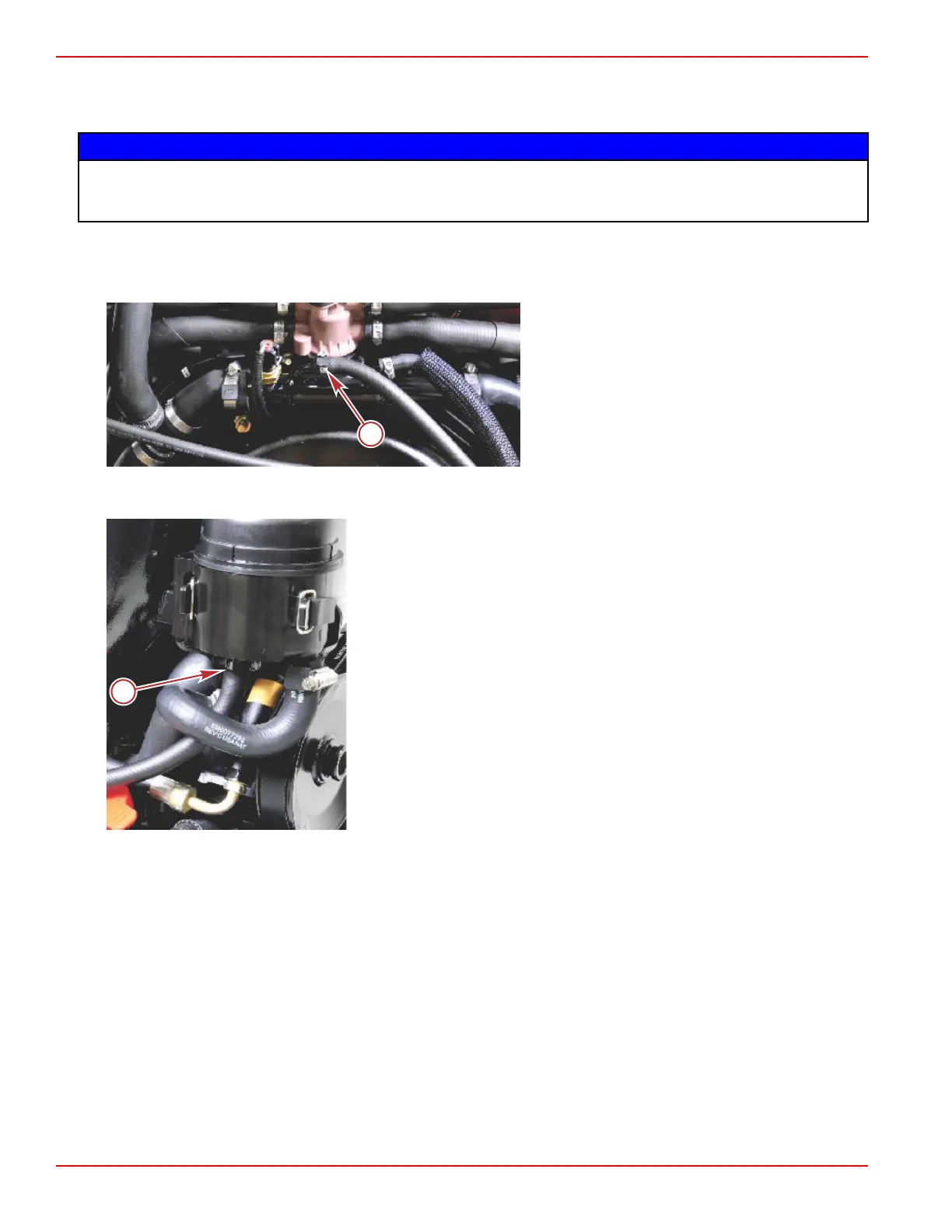

1. Note the routing of the return hose before removal.
2. Loosen the hose clamp and remove the return hose from the fluid cooler.
a - Return hose
3. Loosen the hose clamp and remove the return hose from the power‑assisted steering pump reservoir.
a - Return hose
Installation
IMPORTANT: Route the hoses to avoid extreme heat, stress on the hose fittings, and hose kinks.
1. Route the return hose in the manner noted prior to removal.
Power-Assisted Steering Pump and Related Components
Page 8A-20 © 2016 Mercury Marine 90-8M0099748 eng DECEMBER 2015
