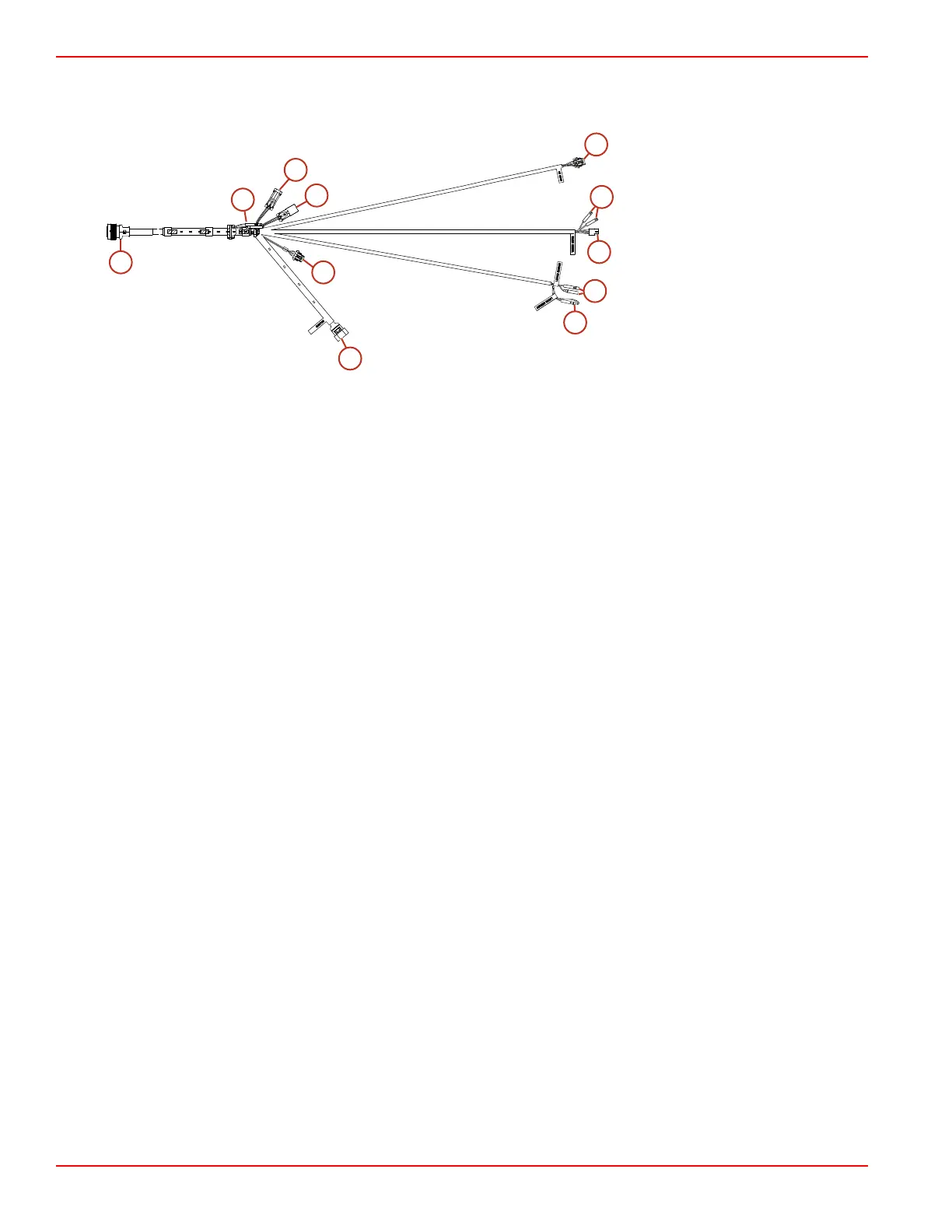

Helm Mechanical

Drawing

14-pin Non-DTS

1 - 14‑pin Deutsch connector

2 - Key switch connector

3 - Trim switch (outboard control)

4 - Neutral switch

5 - Lanyard switch (MerCruiser

control) or key switch +

connection

6 - Lanyard (outboard control)

E‑stop connection

7 - Warning horn

8 - Accessory relay connection (15

amp)

9 - Gauge connector/CAN

connector for SmartCraft

10 - CAN P (CAN 1) with resistor

cap

11 - CAN V (CAN 3) with weather

cap

12340
