IMPORTANT: An external seawater pickup must have an integral seacock.
7532

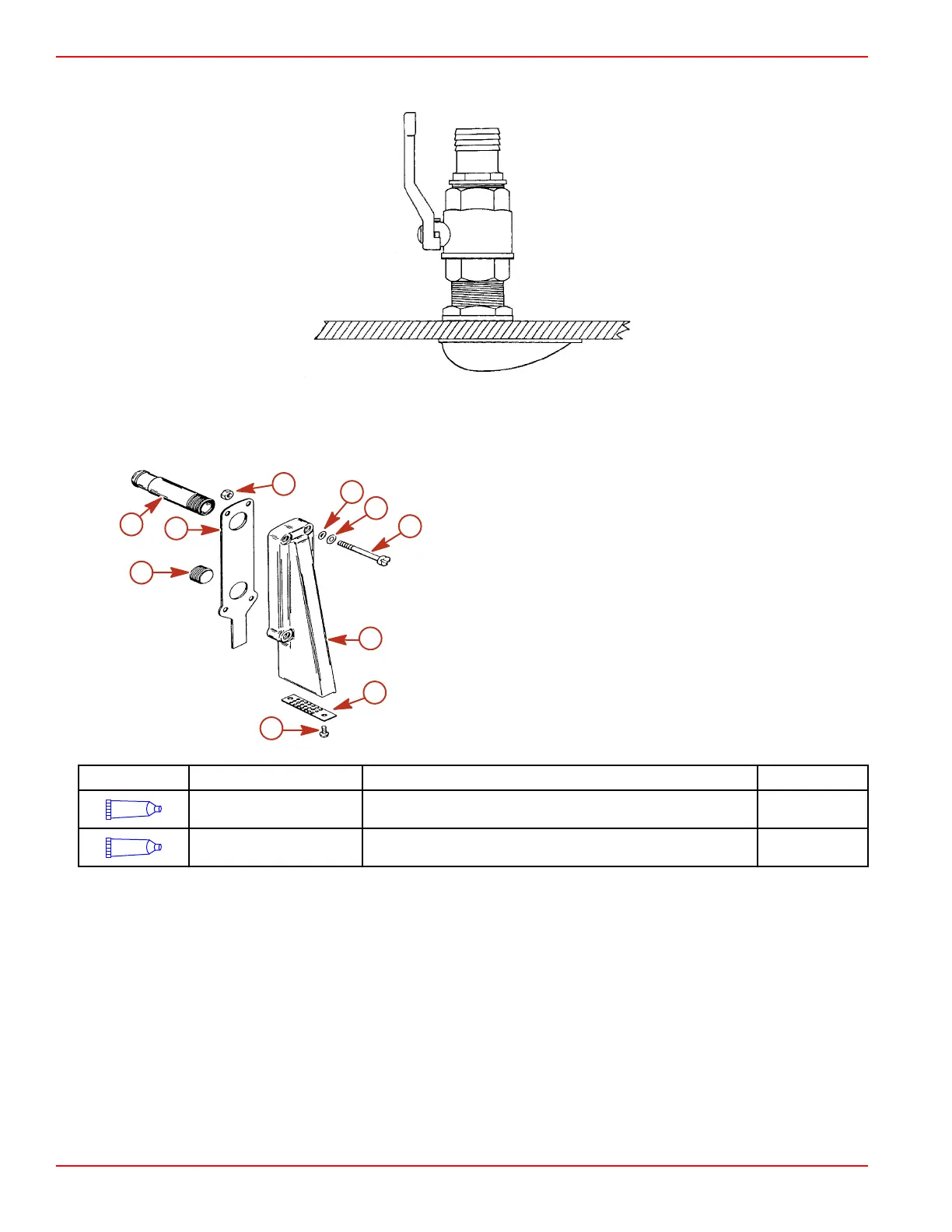

Seawater pickup with an integral seacock
Transom pickup
a - Hose fitting ‑ apply Loctite 567 to the threads
b - Nut (4)
c - Gasket
d - O‑ring (4)
e - Washer (4)
f - Screw (4)
g - Plastic plug ‑ apply Loctite 567 to the threads
h - Pickup ‑ apply RTV 587 to the sealing surfaces
i - Screen
j - Screw (2) ‑ apply RTV 587 to the shaft
Tube Ref No. Description Where Used Part No.
9
Loctite 567 PST Pipe
Sealant
Hose fitting threads and plastic plug threads 92-809822
116
RTV 587 Ultra Blue
Silicone Sealer
Sealing surfaces and screw shaft 92-809825
Seacock
The American Boat and Yacht Council (ABYC) and other industry standards and regulations require the use of a seacock on
certain types of applications to stop the entry of seawater in the event of a leak in the cooling system. Refer to applicable
standards and regulations for specific requirements. The seacock also allows the seawater to be shut off when servicing the
engine.
