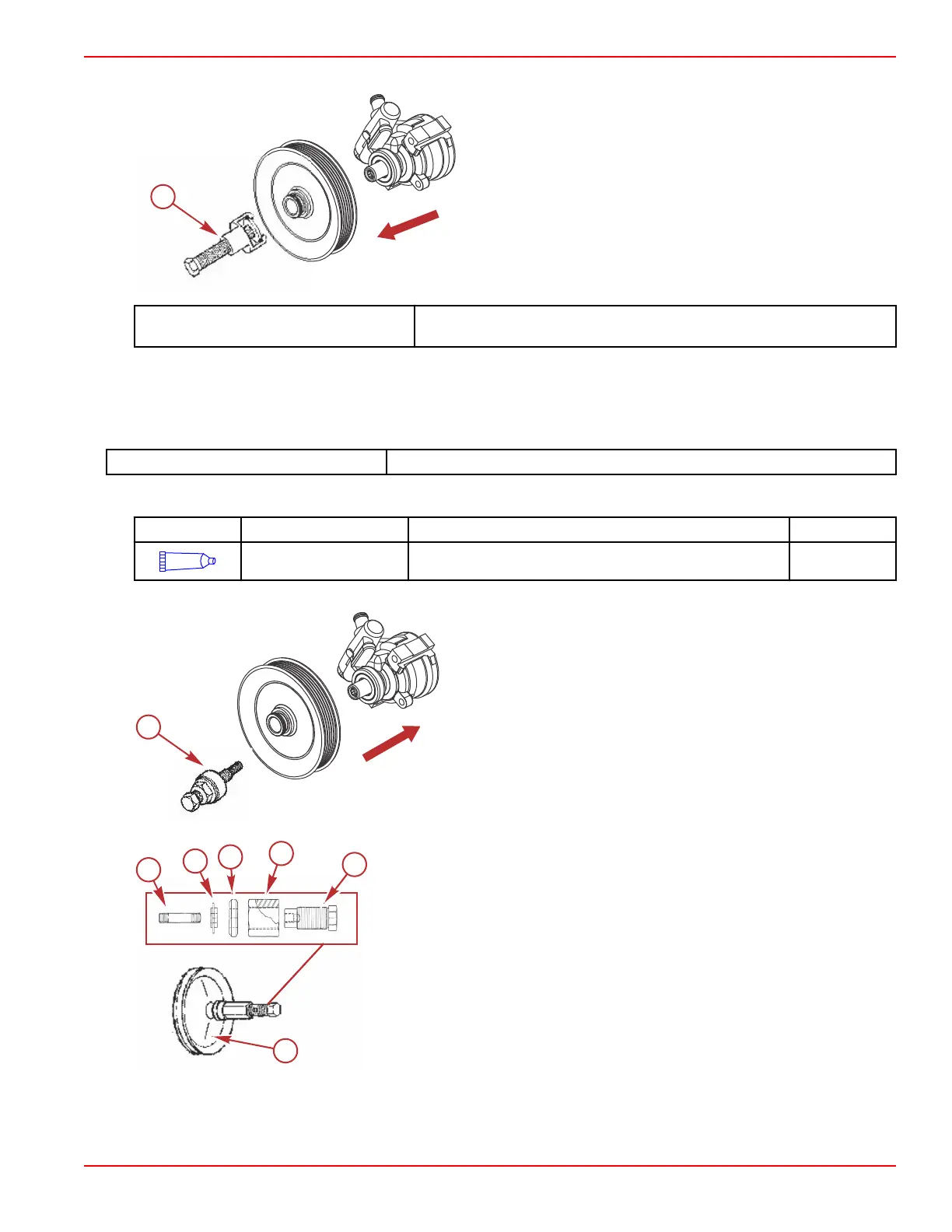

4. Install the pulley removal tool on the end of the power‑assisted steering pulley and the shaft.
a - Typical pulley removal tool
Power‑Assisted Steering Pump Pulley
Remover
Obtain locally
5. While holding the pulley removal tool with a suitable wrench, turn the threaded bolt until the power‑assisted steering pump
pulley is removed.
Power‑Assisted Steering Pump Pulley—Installation
Install the power‑assisted steering pump pulley using the pulley install tool.
Pulley Pusher Installer
91‑ 93656A 1
1. Lubricate the power‑assisted steering pump shaft with Power Trim and Steering Fluid.
Tube Ref No.
Description Where Used Part No.
114
Power Trim and Steering
Fluid
Power-assisted steering pump shaft 92-858074K01
2. Start the pulley on the steering pump shaft.
a - Installer
a - Pulley pusher stud
b - Pulley pusher spacer
c - Pulley pusher bearing
d - Pulley pusher nut
e - Pulley pusher shaft
f - Power‑assisted steering pump pulley
a. Thread the stud from the pulley pusher completely into the power‑assisted steering pump shaft.
b. Place the spacer on the pulley.
c. Place the spacer and the bearing over the pulley pusher stud so that the spacer is against the pulley.
Power-Assisted Steering Pump and Related Components
90-8M0099748 eng DECEMBER 2015 © 2016 Mercury Marine Page 8A-13
